Summary of Contents for Stephan MedAir

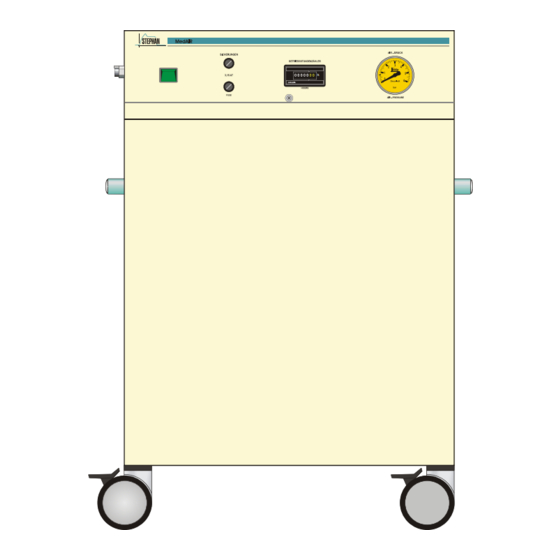

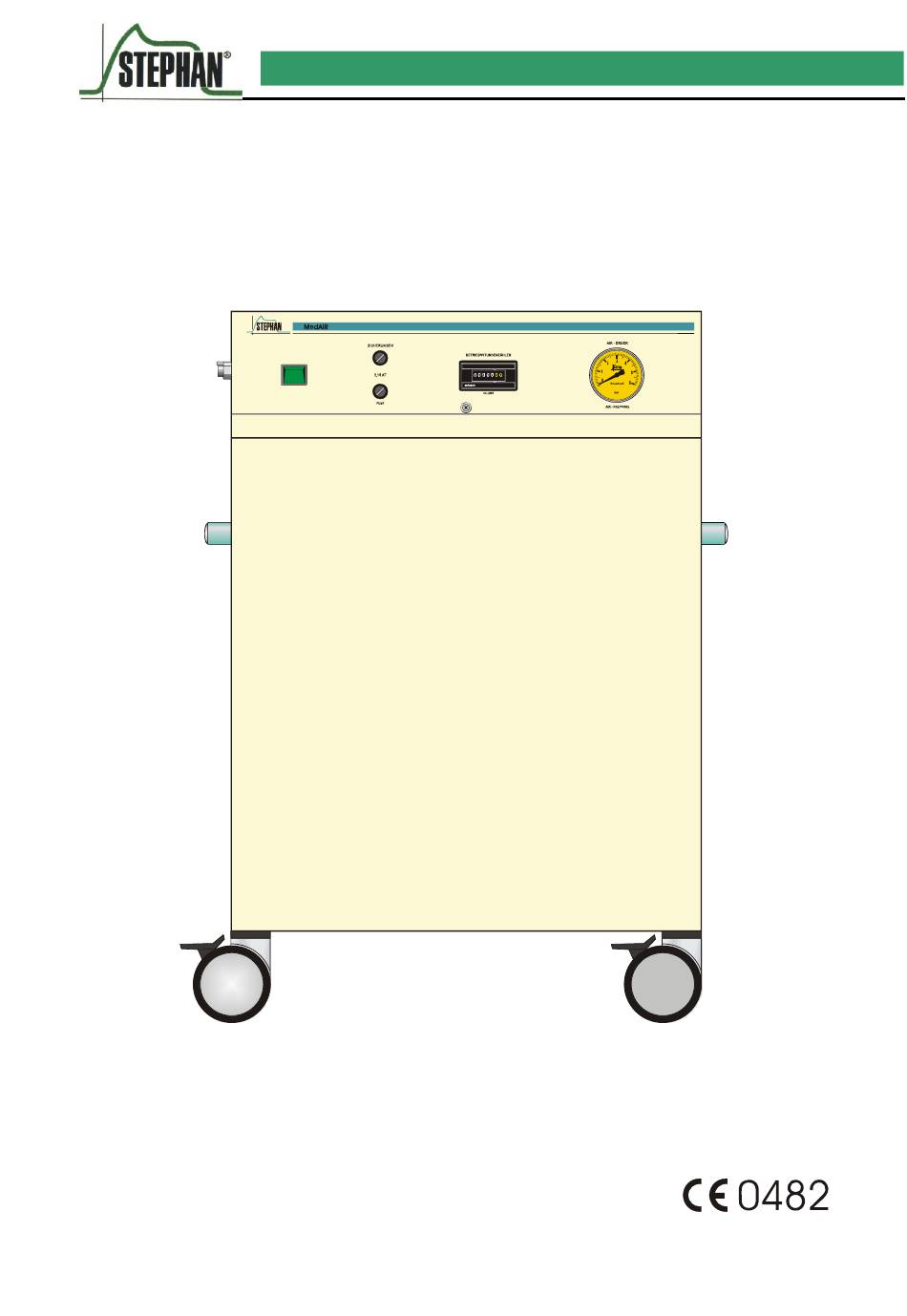

- Page 1 MedAir Mobile Compressed Air Unit ® Operating and service Instructions F. STEPHAN GmbH ⋅ Medizintechnik ⋅ D-56412 Gackenbach ⋅ Kirchstr. 19 ⋅ Tel. (06439) 9125-0 ⋅ Fax (06439) 9125-111 ⋅ info@stephan-gmbh.com ⋅ www.stephan-gmbh.com...
- Page 2 Should there arise any problems with the functioning of the system, please get in touch with the Technical Support team at F. Stephan GmbH, or the authorized dealer from whom you have received the equipment and received training in its use.
-
Page 3: Table Of Contents
Side view, left ..........................8 3.3. Rear view ........................... 8 Preparing the Equipment for Operation..................9 4.1. Setting up the MedAir ........................ 9 4.2. Connection to the mains power supply..................9 Operation ............................. 10 Problems, Causes and Remedies ....................11 Care and Servicing ........................ -
Page 4: General Information
The MedAir is designed for use in dry areas manufacturer. free from spray and dripping water. Moist or wet ambient conditions can greatly impair the The manufacturer guarantees the safety and functioning of the equipment. -
Page 5: Technical Data
Operating pressure: 3.5 bar Output flow: 0 – 45 l/min General Protection rating: Inspection / maintenance: annually or every 3500 operating hours Dimensions (L x W x H): 500x510x1150 Weight: 50 kg Operating position: up-right Operating Instructions MedAir, February 2007... -
Page 6: Safety Instructions
The MedAir may be operated only by trained and authorized personnel. The MedAir must be operated in accordance with these Operating Instructions. The MedAir may not be operated in areas exposed to a danger of explosion. The equipment may not be operated without a micro-filter. -
Page 7: Description Of The Design And Functioning
Description of the Design and Functioning Description of the Design and Functioning The MedAir – compressor has dew point reduction, grit filter, preliminary filter, bacterial filter and an additional condensation water extractor. The MedAir is mobile, vibration and sound insulated. A side rail, 25x10 mm, allows the mounting of additional equipment. -
Page 8: Side View, Left
Moisture micro-filter with moisture micro- filter insert Mains power connection cable Drainage valve Depending fill level, condensation water is to be drained from catch tank. For doing this, the drainage valve lever ( 5 ) must be pushed upwards. Operating Instructions MedAir, February 2007... -
Page 9: Preparing The Equipment For Operation
Preparing the Equipment for Operation 4.1. Setting up the MedAir The MedAir is designed for use in dry areas free from spray and dripping water. Moist or wet ambient conditions can greatly impair the functioning of the equipment. The ambient temperature may not exceed +40 °C. -
Page 10: Operation
3.8 bar in approximately 4 seconds. The pressure gauge on the front side of the unit shows the pressure at the AIR outlet. The outlet connection coupling is positioned on the left side of the MedAirs unit. Operating Instructions MedAir, February 2007... -
Page 11: Problems, Causes And Remedies
Replace intake sound damper Intake sound damper is dirty Pressure continuously below 3.5 Replace defective presurre Defective pressure safety valve safety valve The equipment automatically Not functioning Mains power failure restarts after a response delay of 10 seconds. Operating Instructions MedAir, February 2007... -
Page 12: Care And Servicing
3500 operating hours by the manufacturer or by the authorized Technical Support team of F. STEPHAN. 7.3. Servicing For reasons of safety, it is recommended that... -
Page 13: Accessories / Replacement Parts
Stand with upper monitor console 700 x 400mm mobile with 4 double castors, 100mm, antistatic 1 600 60 214 Compressed air membrane drier ( with grating 1μm and micro-filter 0.01 μm) 1600 60 215 Micro-filter with float divertor Operating Instructions MedAir, February 2007... -
Page 14: Warranty
The manufacturer grants a warranty of 24 months, beginning at purchase date. Modifications or repair work may only be carried out by the manufacturer, F. Stephan GmbH, or authorized technicians. Otherwise the warranty becomes void. Warranty shall also become void as a result of improper use and treatment of the equipment. - Page 15 Notes Personal Notes Operating Instructions MedAir, February 2007...
