Rockwell Automation Reliance electric 6SP Series Quick Start Instructions

Quick Start
Quick Start
Instructions
Instructions
Wiring
Power Up
Parameter Setting
Reliance Electric Drives
SP600 AC Variable Frequency
Inverter - 1/2 to 20 HP
6SP Series Model Numbers
Quick Start Instructions:
A quick reference to some basic
configurations and drive features.

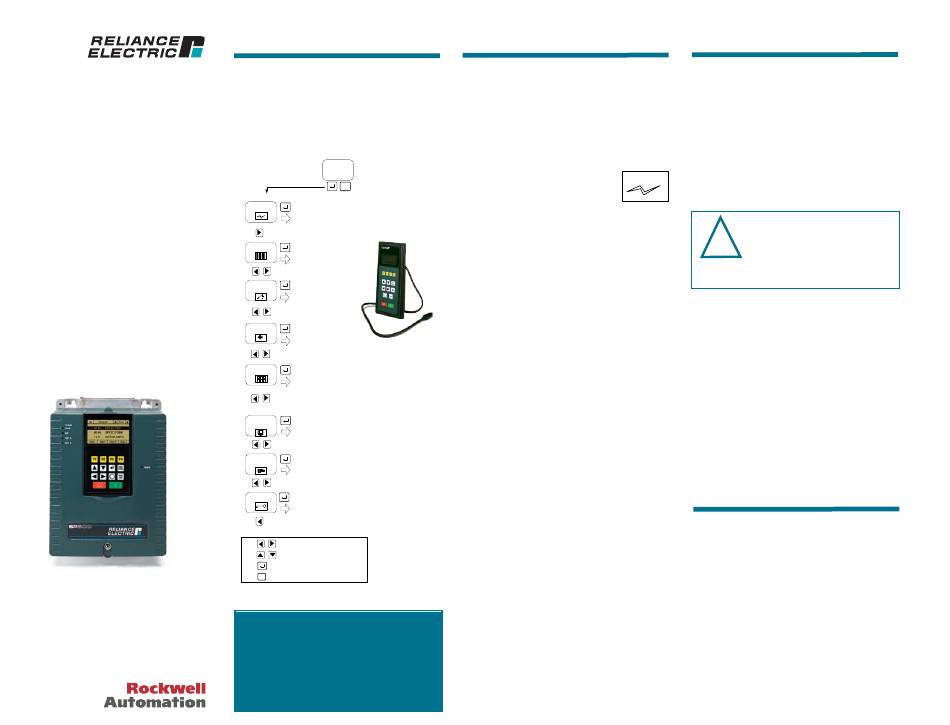

OIM Keypad
The SP600 keypad allows for drive setup,
parameter adjustment, monitoring and
drive diagnostics.
Operator Interface Module (OIM)
User
Display
ESC/
PROG
QuickStart
Input Voltage
Motor Data
Start-Up
Motor Tests
Speed Limits
Ref Setup
Configure I/O
Done
Parameters
By Groups
P Numbers
Changed Params
Control Src
Logic Source Sel
Sel
Speed Ref A Sel
View Fault Queue
Device Version
Diagnostics
OIM Version
Fault Info
Status Info
Device Items
Tech Support
Optional
Language
Remote Keypad
Display Monitor
Function Keys
Device Identity
RE4LCD-PNL
Display Timeout
Display Video
To use as control
Reset Display
Fast PwrUp Mode
Contrast
source, set P89 and
Reset Defaults
Memory
Save to User Set
P90 = DPI Port 2
Storage
Load Frm Usr Set
Active User Set
Device
Menu options
Select
dependent upon
devices connected.
Password
Set Access Lvl
Set Acc Lvl PW
Set Wrt Prot PW
Logout
Press to move between icons
Press to move between menu items
Press to select a menu item
Press ESC/ to move 1 level back in the menu structure
PROG
NOTE: This material is not intended to
provide operational instructions.
Appropriate Reliance Electric Drives
instruction manuals precautions should be
studied prior to installation, operation, or
maintenance of equipment.
Quick Start
OIM Quick Start Menu
The Quick Start Parameters can be
accessed via the keypad menu icon. Once
into the selection list the following
parameters can be set to configure the
drive to the installed motor.
START-UP
1) QuickStart
• •
Stop Mode A (Ramp)
• •
Motor NP FLA (Drive Dependant)
• •
Minimum Speed (0.0 Hz)
• •
Maximum Speed (60.0 Hz)
• •
Accel. Time 1 (10.0 sec.)
• •
Decel. Time 1 (10.0 sec.)
• •
Speed Reference A select (OIM)
• •
Digital IN2 Select (Start)
(Defaults)
The default configuration is defined as:
Drive Voltage rating = Motor Voltage
Start/Stop control = OIM
Speed Reference = OIM
Control Mode = Sensorless Vector
If the drive default configuration is to be
used for initial startup then the above
parameters are the only settings required.
If the user needs to customize the drive
configuration different than the default
setting, then the user should verify
parameter settings accessible throughout
start-up menu.
2) Input Voltages
• •
200/240, 400/480, and 575 VAC,
based on model number
3) Motor Nameplate Data
• •
Motor Power Units
• •
Motor Power
Quick Start (cont.)
3) Motor Nameplate Data con't
• •
Motor FLA
• •
Motor Volts
• •
Motor Hertz
• •
Motor RPM
4) Motor Tests
• •
Direction
• •
AutoTune
ATTENTION: Rotation of the motor in an
undesired direction can occur during this
!
procedure Autotune (61) = Rotate Tune
(2). To guard against possible injury and/or
equipment damage, it is recommended that the motor be
disconnected from the load before proceeding.
5) Speed Limits
• •
Minimum, Maximum
• •
Direction Limit
• •
Stop Mode
6) Reference Setup
• •
OIM Keypad, Terminal Block,
Network, Other
7) Configure I/O
• •
Digital Inputs/Outputs
• •
Analog Outputs
Control Mode
(P53) Torque Perf Mode
Control performance can be selected
from:
• •
Sensorless Vector (default)
Highest performance mode of control
• •
SV Economize
Sensorless Vector with energy saving
• •
Custom V/Hz
Basic open loop control. Multi-motor
application
• •
Fan/Pump: V/Hz
Provides for a Fan load V/Hz curve
