Microlatch REC-14 Installation Tips

Installation Tips for Best Performance

To ensure best performance from this product DO NOT install the receiver on or
next to a metallic surface. If this is unavoidable then the antenna will need to be
brought clear of the metal via a coaxial cable. The Antenna BNC connector
should be wrapped in self amalgamating tape or the internal pin coated with sili-
cone grease if installed near SALT WATER.
If range is poor and interference from another source has been eliminated try
moving or re-orientating the receiver.

Specifications

Operating Voltage
Current Consumption @ 12VDC
@ 24VDC
@ 16VAC
Physical Dimensions
Case Material
Output Channels
Output Ratings
Reverse Polarity Protection
RF Operating Frequency
RF Signal Type ( Data Transfer)
Coding Combinations
Learning Capacity ( RF Devices )
Country of Manufacture
Warranty
Microlatch Pty Ltd warrants this product to be free from defects in materials and
workmanship for a period of 1 Year from date of purchase. We will in the event
of failure repair or replace the product at our sole discretion. This warranty does
not apply in the event of accidental damage, abuse, misuse, non approved pur-
pose or act of God. This warranty is given in addition to any rights allowed by
Australian law.
Made in Australia
Microlatch Pty Ltd
N14528
Microlatch reserves the right to change specifications without notice in the interest of product development
9 to 24VDC, 9 to 18VAC
Standby 14mA, All relays 56mA
Standby 28mA, All relays 75mA
Standby 28mA, All relays 73mA
IP65 Case 160mm x 90mm x 55mm
Antenna 200mm
Bulkhead case 108x70x34
ABS plastic
4
SPDT relay 1 Amp switching
maximum @ 24VDC.
Contacts are voltage free.
Yes ( diode)
433.92mhz
On Off Keying ( OOK)
Keeloq Code Hopping
TM
4.2 billion
170 fobs
Australia
for

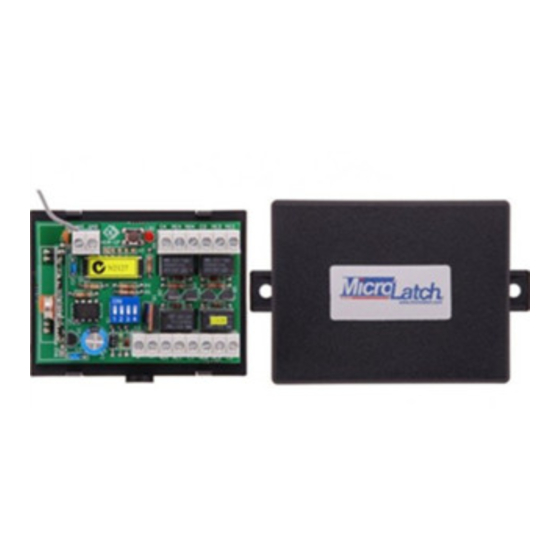

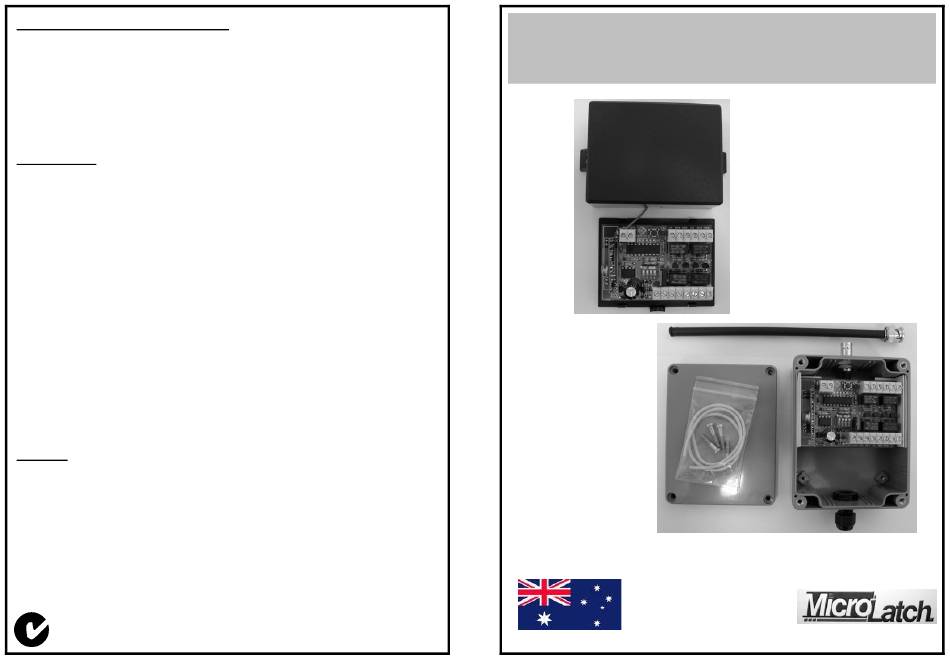

REC-14
4 Channel RF Receiver Controller
IP65 Version
( Outdoor ) REC-14IP65
© 2008 Microlatch Pty Ltd
Standard Version
( Indoor ) REC-14
