Microlatch REC-20 Instructions

REC-21 Antenna installation

The REC-21 is supplied with the antenna tube removed from the IP65 case. Slide the
tube with rubber seal down over the antenna wire and into the cable gland ensuring that
it seats correctly. Now fit and tighten the cable gland nut so as to ensure a watertight fit.
If an external antenna is being fitted the tube should be removed and the coaxial cable
fed through the cable gland to the terminal block. Again ensure correct sealing around
the cable.

Specifications

Operating Voltage
Current Consumption @ 12VDC
Physical Dimensions
Case Material
Output Channels
Output Options
INT
REMOVED
EXT
Reverse Polarity Protection
RF Operating Frequency
RF Signal Type ( Data Transfer)
Coding Combinations
Memory Capacity
Country of Manufacture
Compliance
Warranty
Microlatch Pty Ltd warrants this product to be free from defects in materials and
workmanship for a period of 1 Year from date of purchase. We will in the event of failure
repair or replace the product at our sole discretion. This warranty does not apply in the
event of accidental damage, abuse, misuse, non approved purpose or act of God. This
warranty is given in addition to any rights allowed by Australian law.
N14528
Microlatch reserves the right to change specifications without notice in the interest of product development
9 to 25VDC
10mA maximum
IP65 Case 160mm x 90mm x 55mm
Antenna 130mm
Bulkhead case 108x70x34
ABS plastic
4
Shunt selectable
10k pull up to 5VDC
Open collector
+ 5VDC out terminal active for user
selectable external pull ups
Yes ( diode)
315MHz, 433MHz and 868MHz
On Off Keying (OOK)
TM
Keeloq Code Hopping
4.2 billion
32,000 active fobs
China
C Tick (Aust) & CE tested (Europe)
REC-20/21
4 Channel 26 Bit Wiegand Receiver
IP65 Version
( Outdoor ) REC-21
Copyright © 2010 Microlatch Pty Ltd

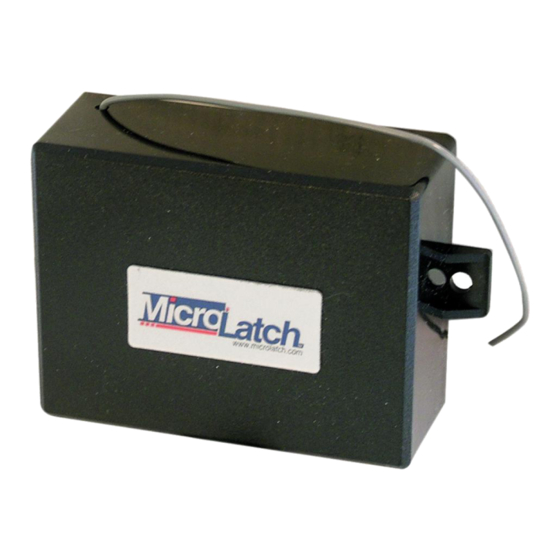

Standard Version
( Indoor ) REC-20
