Overview
The REC-14 is a general purpose UHF receiver operating on 315MHz, 433MHz and 868MHz.
Four single pole double throw (SPDT) outputs are available to control external devices. The
receiver is designed for use with Microlatch 1,2 or 4 channel keyfobs or Microlatch BIO-XX
fingerprint readers. This system uses code hopping technology for secure RF transmissions.
The REC-14IP65 version of the product is supplied in an IP65 rated ABS plastic enclosure which
allows installation of the receiver in an external environment with water resistance. Cable entry is
via a cable gland at the bottom of the case. The antenna is weatherproof and detachable.
Installation Tips for Best Performance
To ensure best performance from this product DO NOT install the receiver on or next to a metallic
surface. If this is unavoidable then the antenna will need to be brought clear of the metal via a
coaxial cable. The remote Antenna BNC (ANT-01) connector should be wrapped in self
amalgamating tape or the internal pin coated with silicone grease if installed near SALT WATER.
If range is poor and interference from another source has been eliminated try moving or
re-orientating the receiver.
Specifications
9 to 24VDC, 9 to 24VAC
Operating Voltage
Standby 14mA, All relays 56mA
Current Consumption @ 12VDC
Standby 28mA, All relays 75mA
@ 24VDC
@ 16VAC
Standby 28mA, All relays 73mA
Physical Dimensions
IP65 Case 160mm x 90mm x 55mm
Antenna tube130mm ,Bulkhead case 108x70x34
Case Material
ABS plastic
Output Channels
4
Output Ratings
SPDT relay 1 Amp switching
Contacts are voltage free.
Reverse Polarity Protection
Yes ( diode)
RF Operating Frequency
315MHz, 433MHz and 868MHz
RF Signal Type ( Data Transfer)
AM ASK, Keeloq
Coding Combinations
4.2 billion
Learning Capacity ( RF Devices )
255 fobs
Country of Manufacture
China
Warranty
Microlatch Pty Ltd. warrants this product to be free from defects in materials and workmanship for
a period of 1 Year from date of purchase. We will in the event of failure repair or replace the
product at our sole discretion. This warranty does not apply in the event of accidental damage,
abuse, misuse, non approved purpose or act of God. This warranty is given in addition to any
rights allowed by Australian law. Microlatch reserves the right to change specifications without
notice in the interest of product development.
maximum @ 24VDC
.
TM
Code Hopping

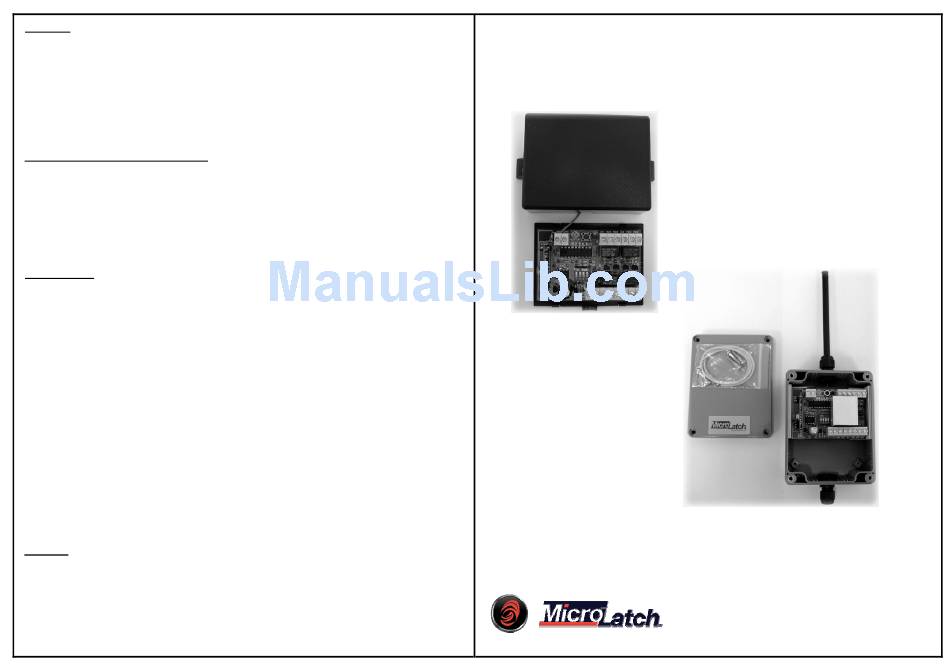

REC-14
4 Channel RF Receiver Controller
IP65 Version
( Outdoor ) REC-14 IP65
Copyright © 2010 Microlatch Pty Ltd.
Standard Version
( Indoor ) REC-14
