B+K precision 467 Instruction Manual page 15

SCHEMATIC
SYMBOL DESCRIPTION
B & K
PART NO.
MISCELLANEOUS
FI Fuse* 3/IGA, 250V, 3 AG Slo-Blo . 190-004-9-001
F2 Fuse, 3/8A, 250V, 3 AG Slo-Blo . 190-251-3-308
II, 2 Bulb, 230V, 10W . 400-034-9-001
Nl,2,3,
)
4,5,6, > Neon Bulb, NE-2 with
T
Leads. 401-016-9-001
7,8, j
T1 Power Transformer.. 065-098-9-001
T2 Filament Transformer .062-004-9-001
Ml Meter, Heater Volts. 320-059-9-001
M2 Meter, G1 Volts. 320-060-9-001
M3 Meter, Line Volts. 320-058-9-001
Line Cord. 420-001-9-009
VI 12BH7A Tube . 236-120-2-087
Case Assembly .. 523-107-9-001
Knob, Function. 751-005-9-008
Knob,Small. 751-112-9-001
Knob, Heater Range. 751-115-9-001
Knob, Pushbutton, Black. 384-016-9-006
Lens Cap, Red . 750-003-9-001
Lens Cap, Clear . 750-003-9-002
Tube Chart .. 496-050-9-001
Instruction Manual .. 480-156-9-001
Guarantee, CRT, 20 per pad. 483-174-9-001
Output Cable Assembly ..
Rubber Foot . 381-002-9-001
Lamp Socket . 752-007-9-001
Vinyl Divider Hap. 758-021-9-001
Hinge Wire (Flap).. 763-027-9-001
Adapter Storage Assembly. 523-103-9-001
NOTE: Standard value resistors and capacitors are not listed. Values may be obtained from
schematic diagram. Minimum charge $2,00 per invoice. Orders will be shipped C.O.D. unless
previous open account arrangements have been made or remittance accompanies order.
Advance remittance must cover postage or express charges. Specify serial number when
ordering replacement parts.
B & K • DYNASCAN CORPORATION * 1801 W. Belle Plaine Ave. . Chicago, Illinois 60613

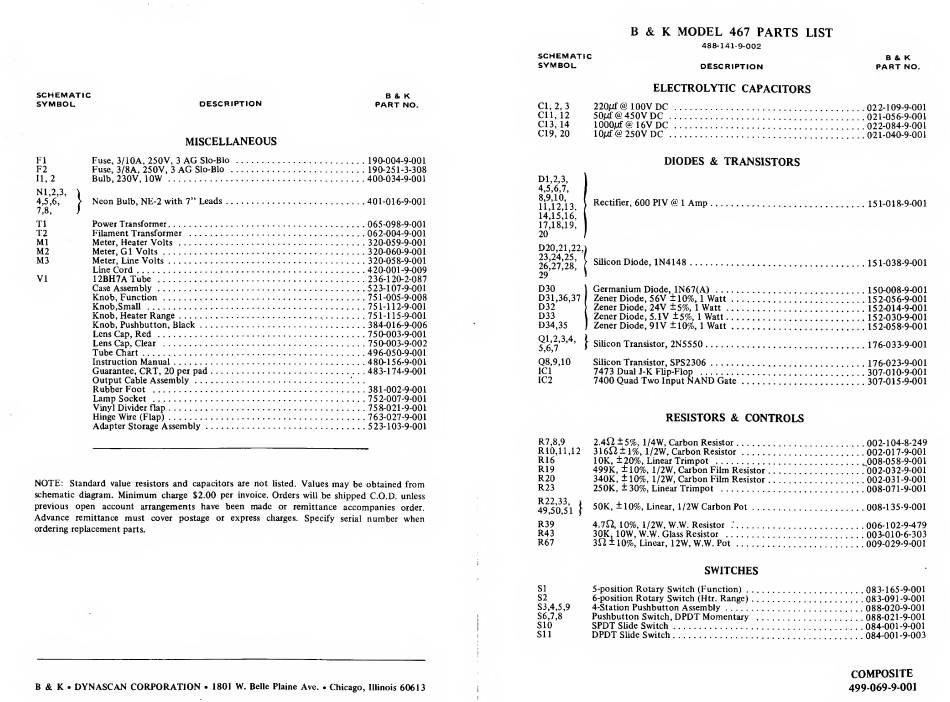

B & K MODEL 467 PARTS LIST
488
-
141
-
9-002
SCHEMATIC b & K
SYMBOL DESCRIPTION PART NO.
ELECTROLYTIC CAPACITORS
Cl, 2, 3 220/if @ 100V DC . .022-109-9-001
Cl 1,12 50/if @ 450V DC .' *...021-056-9-001
C13, 14 lOOOjitf @ 16V DC . 022-084-9-001
C19, 20 10/if @ 250V DC .021-040-9-001
Dl,2,3,
4,5,6,7,
8,9,10,
11,12,13,
14,15,16,
17,18,19,
20
DIODES & TRANSISTORS
Rectifier, 600 PIV @ 1 Amp.
D20,21,22,l
26 27 28s [ Silicon Diode, 1N4148
29' * '
1
D30 Germanium Diode, 1N67(A) . . .
D31,36,37 Zener Diode, 56V ±10%, 1 Watt
D32 Zener Diode, 24V ±5%, 1 Watt .
D33 Zener Diode, 5.1V ±5%, 1 Watt.
D34,35 Zener Diode, 91V ±10%, 1 Watt
5^6 7 ^' } Silicon Transistor, 2N5550 .
151-018-9-001
151-038-9-001
150-008-9-001
152-056-9-001
152-014-9-001
152-030-9-001
152-058-9-001
176-033-9-001
Q8,9,10 Silicon Transistor, SPS2306 . 176-023-9-001
IC1 7473 Dual J-K Flip-Flop . 307-010-9-001
IC2 7400 Quad Two Input NAND Gate. 307-015-9-001
RESISTORS & CONTROLS
R7,8,9 2.4ft ±5%, 1/4W, Carbon Resistor. 002-104-8-249
R10,11,12 316ft ±1%, 1/2W, Carbon Resistor.002-017-9-001
R16 10K, ±20%, Linear Trimpot .^008-058-9-001
R19 499K, ±10%, 1/2W, Carbon Film Resistor.?002-032-9-001
R20 340K, ±10%, 1/2W, Carbon Film Resistor. 002-031-9-001
R23 250K, ± 30%, Linear Trimpot . 008-071-9-001
49,50,51
\
50R' ±10%' Lineal' */2W Carbon Pot. 008-135-9-001
R39 4.7ft, 10%, 1/2W, W.W. Resistor ;. 006-102-9-479
R43 30K, 10W, W.W. Glass Resistor . 003-010-6-303
R67 3ft ±10%, Linear, 12W, W.W. Pot. ..009-029-9-001
SWITCHES
51 5-position Rotary Switch (Function).083-165-9-001
52 6-position Rotary Switch (Htr. Range). 083-091-9-001
S3,4,5,9 4-Station Pushbutton Assembly. 088-020-9-001
S6,7,8 Pushbutton Switch, DPDT Momentary . 088-021-9-001
S10 SPDT Slide Switch. 084-001-9-001
SI 1 DPDT Slide Switch. 084-001-9-003
COMPOSITE
499-069-9-001
