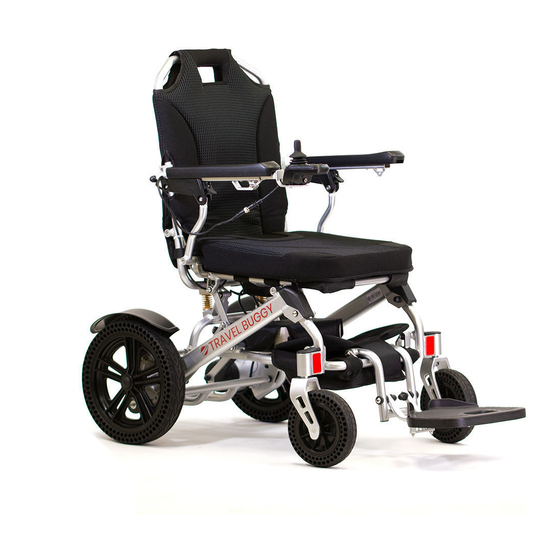

Foldable Power Chair

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISTA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Travel Buggy VISTA

  • Page 1 VISTA by Travel Buggy Foldable Power Chair...
  • Page 2: Table Of Contents

    TA B LE O F CO N TE N T S NOTICES FREE WHEEL MODE SAFETY INFORMATION TRANSPORTING BATTERY SAFETY INFORMATION BATTERY MAINTENANCE SPECIFICATIONS CHARGING UNBOXING MAINTENANCE,CARE, TROUBLESHOOTING UNFOLDING LIMITED WARRANTY FOLDING CONTACT & SUPPORT SETUP CONTROLLER CAUTION: Read all precautions and instructions in this manual before using this equipment. Improper use or maintenance can void the warranty.
  • Page 3: Notices

    Users should also pay special attention to information marked in this manual beginning with NOTICE. Travel Buggy, its affiliates and partners cannot be held responsible for personal injury or property damage resulting from the unsafe or improper operation or maintenance of the VISTA Power Wheelchair.
  • Page 4: Safety Information

    DO NOT carry additional passengers ledges and drop offs (curbs, porches, on your VISTA stairs, etc.) • DO NOT use your VISTA as a seat in a • DO avoid exposure to rain, snow, ice, moving vehicle salt, or standing water whenever •...
  • Page 5: Battery Safety Information

    • DO NOT expose battery to water in any way. Contact Travel Buggy if or salt water, or allow the battery any of these problems are observed to get wet 7. DO NOT place battery in microwave 2.
  • Page 6 BAT TE RY SA FE T Y I N FO R MATI O N CHARGING PRECAUTIONS WHEN DISCHARGING THE BATTERY BE SURE to follow the warnings listed below while charging the battery. DO NOT discharge the battery using Failure to do so may cause the any other device except for the battery to become hot, explode or specified device.
  • Page 7: Specifications

    S PEC I FI CATI O N S HAND GRIP FLIP UP ARMREST STORAGE WITH CURVED PAD POCKET FOLDING BRUSHLESS MECHANISM CONTROLLER SHAPED SUSPENSION CUSHION SYSTEM BASE BAR BRUSHLESS FOLDABLE MOTOR LEG REST 8” FRONT 12” BACK LITHIUM-ION ANTI-TIP WHEEL WHEEL BATTERY WHEELS...
  • Page 8 S PEC I FI CATI O N S PERFORMANCE SPECIFICATIONS SEATING WIDTH: STANDARD 19”, OPTIONAL 21.5” DRIVING RANGE: 11.5 MI / 18.5 KM FRONT WHEEL DIAMETER: 8” MAXIMUM SPEED: 4.5 MPH / 7 KPH REAR WHEEL DIAMETER: 12” DRIVE SYSTEM: TWO MOTOR DRIVE SYSTEM FLOOR TO SEAT HEIGHT: 20”...
  • Page 9: Unboxing

    • Grab the padded bar at the top and begin to pull your Travel Buggy out horizontally parallel with the ground. BOTTOM • Locate the components provided with your power wheelchair...
  • Page 10: Unfolding

    U N FO LD I N G • Lay VISTA on a flat on the ground as • Hold the handle and pull up the chair illustrated above while pressing the edge of the seat to open similar to a lawn chair.
  • Page 11: Folding

    • Fold the footrest into the power • The power chair is now completely chair before continuing the folding folded. VISTA can also be folded on process to its rear wheels and stands on its own for greater convenience.
  • Page 12: Setup

    S E T U P • Locate the joystick controller. • Slide the joystick controller into the arm rest tube (image 1). The length of the joystick controller can be adjusted for comfort before or after secured • Secure the latch once the joystick is inserted to the desired length (image 2) •...
  • Page 13 • DO NOT step on the footplate when entering or exiting the VISTA as it may cause the power chair to move in an unsafe manner To enter on the side...
  • Page 14: Controller

    All 5-Lights On 4 MPH a fully depleted battery. • VISTA Power Chair has an easy to use 360 degree joystick controller featuring multiple speeds and a battery life indicator • Take some time in a safe, controlled environment to learn the operation of the controller, the speed and the maneuverability of the VISTA •...
  • Page 15: Fr E E Wh E E L M O D E

    FR E E WH E E L M O D E • In order to have a care giver push the VISTA, it must be put in Free Wheel mode • This mode disengages the drive mechanism to the wheels, making them free to push manually •...
  • Page 16: Transporting

    (2), similar to a lawn chair • Once folded, the power chair can balance on its rear wheels (3) • VISTA can be pulled utilizing the top of the seat bar and rolling on the anti-tip wheels as shown in image 4...
  • Page 17 WARNING: Never transport the VISTA in a tie down system, as the VISTA is not compatible with them. Never sit in the VISTA and be transported in a moving vehicle. Do not place the folded VISTA in the front seat with the driver where it...
  • Page 18: Battery Maintenance

    BAT TE RY M AI N T E N A N C E BATTERY MAINTENANCE Lithium-Ion rechargeable battery require routine maintenance and care Observe and note the run time that a in their use and handling. Read and new fully-charged battery provides for follow the guidelines in this document powering your product.
  • Page 19 50% of capacity at appears abnormal in any way. least once every six months. Contact Travel Buggy if any of these problems are observed • Remove the battery and store it separately from the product.
  • Page 20: Charging

    Battery UPON ARRIVAL • Your VISTA will arrive with fully charged battery ONBOARD CHARGING (PREFERRED METHOD) • Turn OFF the power to the VISTA • Connect the charger (DC male) to the controller port (DC female) BATTERY PHONE CHARGER CHARGE PORT PORT (MICRO USB) •...
  • Page 21 C HARG I N G • When charging the indicator light on the power charger brick is yellow • After 4 to 6 hours of charging (depending on the remaining battery power quantity), the indicator lights change from red to Power ON green, which means the battery is Charging...
  • Page 22: Maintenance,Care, Troubleshooting

    Chairs and scooters will be qualified to maintenance work to the VISTA yourself. perform the service and maintenance on your VISTA Power Chair should it be required. Please be sure to keep a LUBRICATION log of the service and maintenance performed.
  • Page 23: Limited Warranty

    The warranty does not cover: The purchaser of this product is entitled to a limited warranty as offered by • Products damaged by user Travel Buggy and its affiliates on the negligence. following components and timeframes • Products damaged accidentally.
  • Page 24: Contact & Support

    CO N TACT & S U PP O R T You will find the operation and care of Additional images and videos are your VISTA very simple and easy, but available on our website. should you have any questions please contact Travel Buggy.
  • Page 25 TA B LE D ES M AT I È R ES REMARQUES MODE ROUE LIBRE INFORMATIONS SUR LA SÉCURITÉ TRANSPORT INFORMATIONS SUR LA ENTRETIEN DE LA BATTERIE SÉCURITÉ DE LA BATTERIE CHARGEMENT SPÉCIFICATIONS ENTRETIEN ET MAINTENANCE, DÉBALLAGE DÉPANNAGE DÉPLIAGE GARANTIE LIMITÉE PLIAGE CONTACT ET SUPPORT CONFIGURATION...
  • Page 26: Remarques

    Dans le cadre de notre initiative d'amélioration continue des produits, Travel Buggy se réserve le droit de modifier les spécifications et la conception sans préavis. En conséquence, il peut y avoir des différences mineures entre votre VISTA et les photos, illustrations et instructions de ce manuel.
  • Page 27: Informations Sur La Sécurité

    à l'eau stagnante roulant électrique • Maintenir et stocker dans un état • N'utilisez pas votre VISTA si vous êtes propre et sec sous l'influence de l'alcool, car cela • N'approchez pas vos mains des pourrait nuire à votre capacité de pneus lorsque vous conduisez.
  • Page 28: Informations Sur La Sécurité De La Batterie

    Contactez 3. NE PAS exposer la batterie à l'eau ou Travel Buggy si l'un de ces problèmes à l'eau salée, ni la laisser se mouiller est observé NE PAS placer la batterie 4.
  • Page 29 I N FO R M AT I O N S S U R L A S ÉC U R I T É D E L A BAT T E R I E PRÉCAUTIONS DE CHARGEMENT LORS DE LA DÉCHARGE DE LA BATTERIE Veillez à...
  • Page 30: Spécifications

    S PÉC I FI CATI O N S POIGNÉE ACCOUDOIR POCHETTE RELEVABLE AVEC DE RANGEMENT COUSSIN INCURVÉ MÉCANISME DE CONTROLEUR PLIAGE SANS BROUSSE SUSPENSION COUSSIN BARRE PROFILÉ DE BASE DU SYSTÉME REPOSE-JAMBES MOTEUR PLIABLE SANS BALAIS ROUE ROUE BATTERIE ANTI-TIP AVANT 8”...
  • Page 31 S PÉC I FI CATI O N S LES SPÉCIFICATIONS DE DIMENSIONS PLIÉES: 31.5”L X 24”L X 13”H PERFORMANCE LARGEUR DE SIÈGE: STANDARD 19”, DISTANCE DE CONDUITE: OPTIONNEL 21.5” 11.5 MI / 18.5 KM DIAMÈTRE DE LA ROUE AVANT: 8” VITESSE MAXIMALE: 4.5 MPH / 7 KPH DIAMÈTRE DE LA ROUE ARRIÈRE: 12”...
  • Page 32: Déballage

    • Saisissez la barre rembourrée en haut et commencez à tirer votre Travel Buggy horizontalement, parallèlement au sol. • Localisez les composants fournis avec votre fauteuil roulant électrique BATTERIE AU LITHIUM OUTILS CONTRÔLEUR DE JOYSTICK...
  • Page 33: Dépliage

    D É PLI AG E • Poser le VISTA sur un plat au sol comme • Tenez la poignée et tirez la chaise vers illustré ci-dessus le haut tout en appuyant sur le bord du siège pour l'ouvrir comme une chaise de jardin.
  • Page 34: Pliage

    • Plier le repose-pied dans la chaise • La chaise électrique est maintenant électrique avant de poursuivre le complètement repliée. VISTA peut processus de pliage également être replié sur ses roues arrière et se tenir seul pour plus de commodité.
  • Page 35: Configuration

    CO N FI G U R ATI O N • Localisez la manette de commande. • Faites glisser la manette de commande dans le tube de l'accoudoir (image 1). La longueur de la manette peut être ajustée pour plus de confort avant ou après la fixation •...
  • Page 36 • NE PAS marcher sur le repose-pieds en entrant ou en sortant du VISTA car cela pourrait provoquer le se déplacer de manière dangereuse Pour entrer sur le côté, appuyez sur le bouton de déverrouillage du...
  • Page 37: Unité De Commande

    4 MPH déchargée. • Le fauteuil roulant électrique VISTA est équipé d'une manette à 360 degrés facile à utiliser, avec plusieurs vitesses et un indicateur d'autonomie de la batterie. • Prenez un peu de temps dans un environnement sûr et contrôlé pour apprendre le fonctionnement du contrôleur, la vitesse et la maniabilité...
  • Page 38: Mode Roue Libre

    M O D E RO U E LI B R E • Pour qu'un soignant puisse pousser le VISTA, il doit être mis en mode Roue Libre • Ce mode désengage le mécanisme d'entraînement des roues, les rendant libres de pousser manuellement •...
  • Page 39: Transport

    Une fois replié, le fauteuil roulant électrique peut s'équilibrer sur ses roues arrière (3) • VISTA peut être tiré en utilisant le haut de la barre de siège et en roulant sur les roues anti-basculement comme montré dans l'image 4...
  • Page 40 AVERTISSEMENT: Ne transportez jamais le VISTA dans un système d'arrimage, car le VISTA n'est pas compatible avec eux. Ne vous installez jamais dans le VISTA et ne le transportez pas dans un véhicule en mouvement. Ne placez pas le VISTA replié sur le siège.
  • Page 41: Entretien De La Batterie

    E N TR E TI E N D ES BAT T E R I ES ENTRETIEN DE LA BATTERIE Les batteries rechargeables au lithium- ion nécessitent un entretien et des soins Observez et notez la durée de de routine lors de leur utilisation et de leur fonctionnement d'une nouvelle batterie manipulation.
  • Page 42 E N T R E TI E N D ES BAT T E R I ES STOCKAGE • Cessez immédiatement d'utiliser la batterie si, pendant l'utilisation, • Chargez ou déchargez la batterie à la charge ou le stockage de la environ 50% de sa capacité...
  • Page 43: Chargement

    C HARG E M E N T • IL N'EST PAS NÉCESSAIRE DE CHARGER Chargement à bord LA BATTERIE A L'ARRIVÉE • Votre VISTA arrivera avec une batterie complètement chargée LA TARIFICATION À BORD (MÉTHODE PRÉFÉRÉE) • Couper l'électricité à votre VISTA •...
  • Page 44 C HARG E M E N T • Lors de la charge, le témoin lumineux de la brique du chargeur est jaune • Après 4 à 6 heures de charge (en fonction de la quantité d'énergie restante de la batterie), les voyants passent du rouge au vert, ce En marche qui signifie que la batterie est...
  • Page 45: Entretien Et Maintenance, Dépannage

    Travel Buggy met à votre disposition. l'essieu arrière, la fourche avant et les pièces rotatives après 180 jours Nous vous recommandons d'inspecter votre VISTA deux à trois fois par an dans les do- • La graisse au bisulfure de molybdène est maines suivants: recommandée...
  • Page 46: Garantie Limitée

    L'acheteur de ce produit a droit à professionnel pour l'entretien et le une garantie limitée, telle qu'offerte service, afin de s'assurer que le travail par Travel Buggy et ses filiales, sur les est effectué correctement. composants et les délais suivants à compter de la date d'achat: La garantie ne couvre que les dommages NON DÉLIBÉRÉS.
  • Page 47: Contact Et Support

    CO N TACT E T S U PP O R T Vous trouverez le fonctionnement et Des images et des vidéos l'entretien de votre VISTA très simple et supplémentaires sont disponibles sur facile, mais si vous avez des questions, notre site web.
  • Page 48 VISTA by Travel Buggy www.travelbuggy.com...
