Rolling Air Evacuation Oil Drain
Installation and Operation Manual
Manual P/N 5900327 — Manual Revision A — February 2022
Models:
• RD-20SE
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
⚠
DANGER
Read the entire contents of this manual before using this product.
Failure to follow the instructions and safety precautions in this
manual can result in serious injury or death. Make sure all other
operators also read this manual. Keep the manual near the product
for future reference. By proceeding with setup and operation, you
agree that you fully understand the contents of this manual.
1645 Lemonwood Dr.
Santa Paula, CA 93060 USA
Toll Free 1 (800) 253-2363
Tel: 1 (805) 933-9970
rangerproducts.com
Advertisement
Table of Contents
Related Manuals for Ranger RD-20SE
Summary of Contents for Ranger RD-20SE

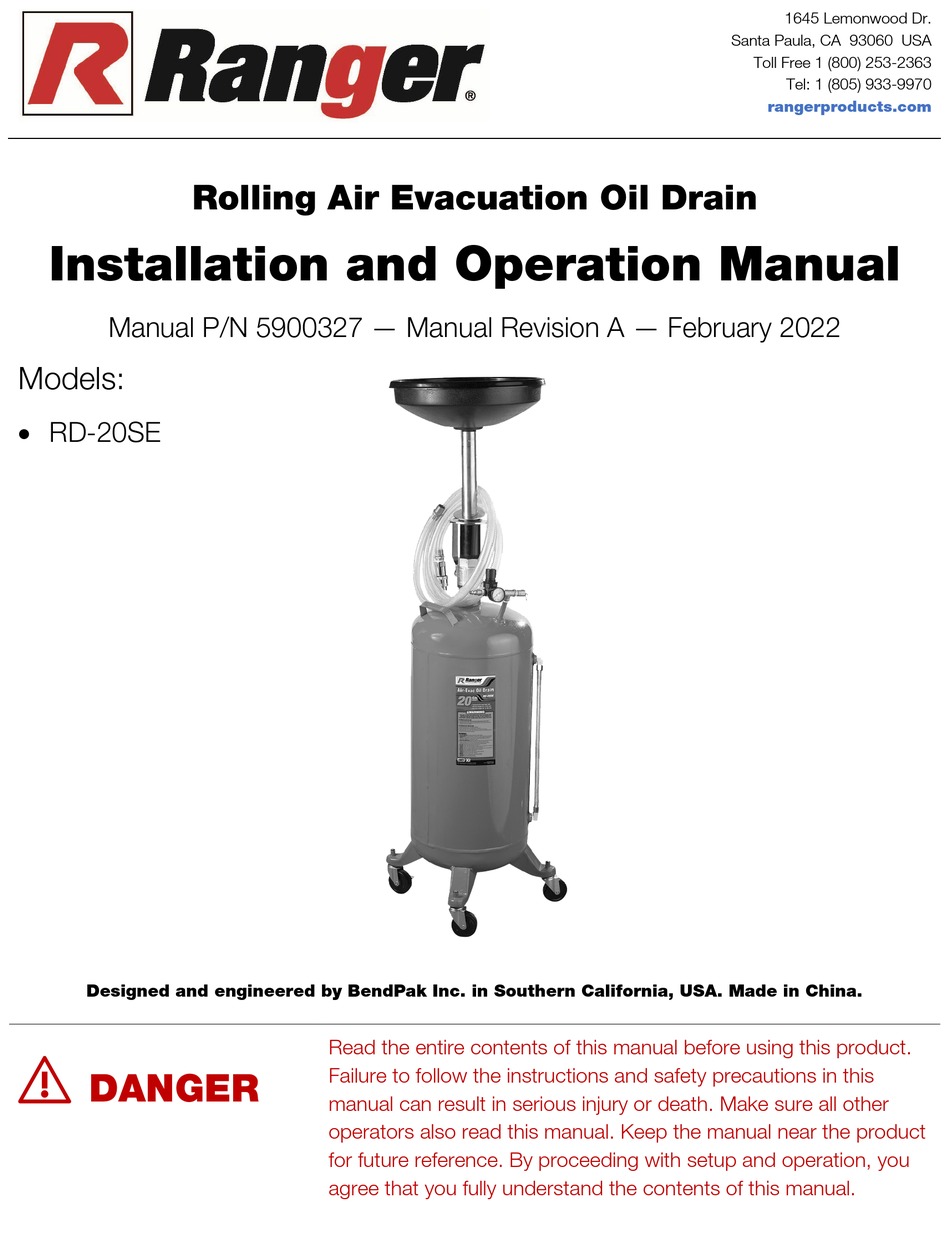

- Page 1 Installation and Operation Manual Manual P/N 5900327 — Manual Revision A — February 2022 Models: • RD-20SE Designed and engineered by BendPak Inc. in Southern California, USA. Made in China. ⚠ Read the entire contents of this manual before using this product.
- Page 2 Warranty. The BendPak Ranger warranty is more than a commitment to you: it is also a commitment to the value of your new product. For full warranty details, contact your nearest BendPak Ranger dealer or visit bendpak.com/support/warranty.
-
Page 3: Table Of Contents
Keep this manual on or near the equipment so that anyone who uses or services it can read it. Technical support for your Balancer is available from your distributor or directly from BendPak Ranger: using a web browser, visit the... -
Page 4: Safety Considerations
• Read and understand all warnings, safety precautions and instructions prior to use. Do not drain caustic or volatile fluids or fuels into the RD-20SE! • These Fluids could cause damage to the equipment and personal injury. - Page 5 BendPak Ranger assumes no liability for damages resulting from: • Use of the equipment for purposes other than those described in this manual. • Modifications to the equipment without prior, written permission from BendPak Ranger. • Damage to the equipment from external influences. •...
-
Page 6: Specifications
Shipping Dimensions 18" x 18" x 45" / 457 mm x 457 mm x 1,143 mm Components The figure below details the major components of the RD-20SE. RD-20SE Rolling Air Evacuated Oil Drain P/N 5900327 — Rev. A — February 2022... -
Page 7: Assembly
6. Place the Receiver Screen in the recessed area inside of the Funnel. 7. Attach the female Quick Coupler onto the end of the Oil Discharge Hose. RD-20SE Rolling Air Evacuated Oil Drain P/N 5900327 — Rev. A — February 2022... -
Page 8: Operation
9. Lower the Oil Drain Funnel by grasping the upper portion of the Drain Tube with one hand while lifting up on the Lock Washer at the Base of the Drain Tube with the other hand, then sliding the Drain Tube downward. RD-20SE Rolling Air Evacuated Oil Drain P/N 5900327 — Rev. A — February 2022... - Page 9 ⚠ WARNING: An RD-20SE fully loaded with oil can weigh in excess of 200 lbs. / 90 kg. Handle with care and use assistance when moving. Empty the Rolling Oil Drain often. 1. Move the RD-20SE close to the Waste Oil Container.
-
Page 10: Maintenance
Do not operate your Air Evacuation Oil Drain if you find issues; instead, take the unit out of service, then contact your dealer, visit rangerproducts.com/support/, or call (805) 933- 9970. RD-20SE Rolling Air Evacuated Oil Drain P/N 5900327 — Rev. A — February 2022... -
Page 11: Maintenance Log
Maintenance Log RD-20SE Rolling Air Evacuated Oil Drain P/N 5900327 — Rev. A — February 2022... - Page 12 1645 Lemonwood Drive Santa Paula, CA 93060 USA © 2022 BendPak Inc. All rights reserved. bendpak.com...
