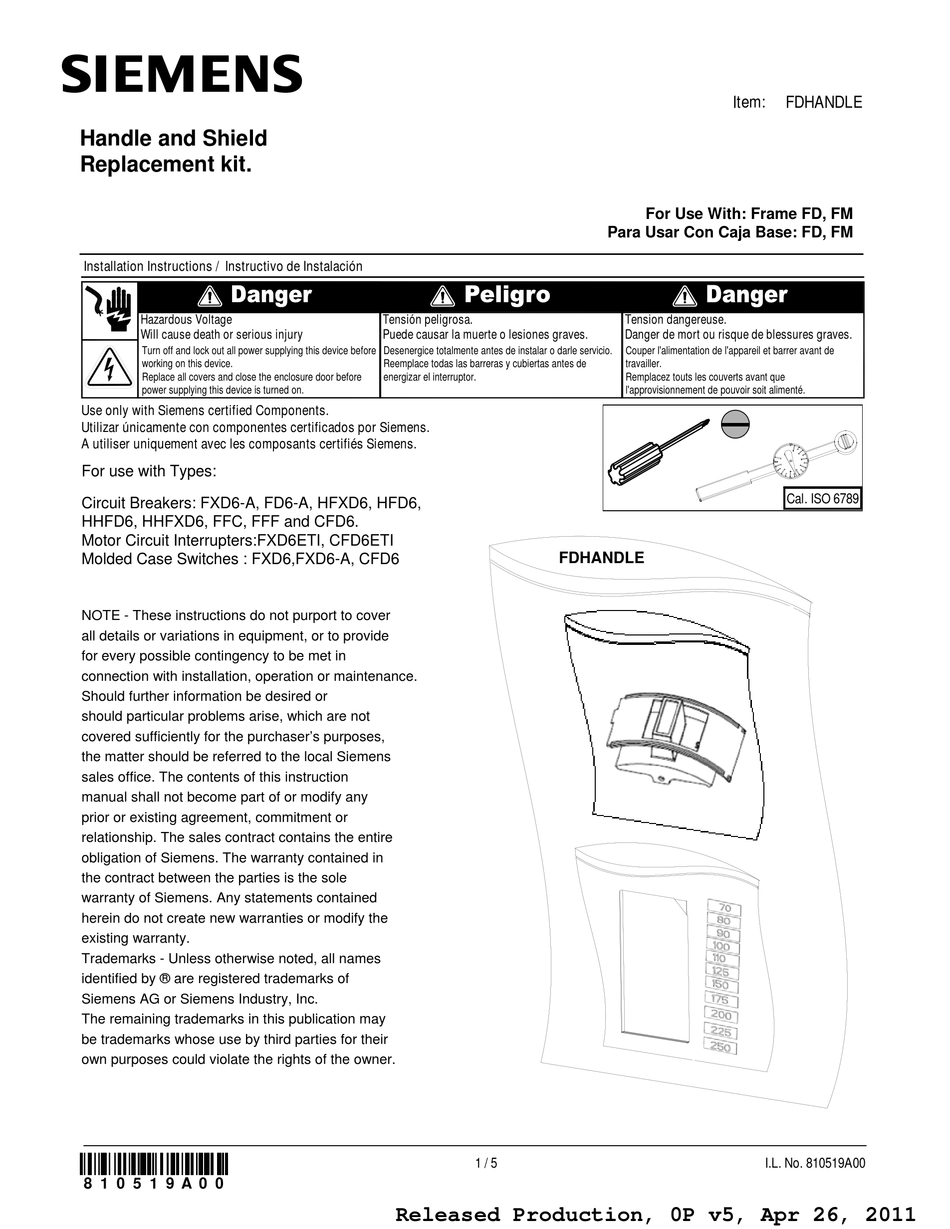

Siemens FDHANDLE Quick Start Manual

s
Handle and Shield
Replacement kit.
Installation Instructions / Instructivo de Instalación
Hazardous Voltage
Will cause death or serious injury
Turn off and lock out all power supplying this device before
working on this device.
Replace all covers and close the enclosure door before
power supplying this device is turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados por Siemens.
A utiliser uniquement avec les composants certifiés Siemens.
For use with Types:
Circuit Breakers: FXD6-A, FD6-A, HFXD6, HFD6,
HHFD6, HHFXD6, FFC, FFF and CFD6.
Motor Circuit Interrupters:FXD6ETI, CFD6ETI
Molded Case Switches : FXD6,FXD6-A, CFD6
NOTE - These instructions do not purport to cover
all details or variations in equipment, or to provide
for every possible contingency to be met in
connection with installation, operation or maintenance.
Should further information be desired or
should particular problems arise, which are not
covered sufficiently for the purchaser's purposes,
the matter should be referred to the local Siemens
sales office. The contents of this instruction
manual shall not become part of or modify any
prior or existing agreement, commitment or
relationship. The sales contract contains the entire
obligation of Siemens. The warranty contained in
the contract between the parties is the sole
warranty of Siemens. Any statements contained
herein do not create new warranties or modify the
existing warranty.
Trademarks - Unless otherwise noted, all names
identified by ® are registered trademarks of
Siemens AG or Siemens Industry, Inc.
The remaining trademarks in this publication may
be trademarks whose use by third parties for their
own purposes could violate the rights of the owner.
8 1 0 5 1 9 A 0 0
Tensión peligrosa.
Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de
energizar el interruptor.
FDHANDLE
1 / 5
Released Production, 0P v5, Apr 26, 2011
Item: FDHANDLE
For Use With: Frame FD, FM
Para Usar Con Caja Base: FD, FM
Tension dangereuse.
Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de
travailler.
Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté.
Cal. ISO 6789
I.L. No. 810519A00
