The MA Eight-Way Booster RJ-45 simplifies the distribution of the DMX signal and contributes to the
safe operation of your DMX equipment.
The risk of only one single loop is thus being avoided and cable loss is being reduced.
The MA Eight-Way Booster RJ-45 distributes DMX 512 (1990) signals on to 8 separate outputs.
The direct output (DMX THRU) operates an independent (from the unit) distribution of the DMX signal
(e.g. in case of power failure)).
DMX THRU USED
DMX THRU UNUSED
DMX Input
FEATURES:
DMX IN:
DMX THRU:
OUTPUTS:
LOAD:
POWER:
O.K.:
TECHNICAL DATA:
Power Supply
Signal in/out
Jumper assignement:
Recommended setting:
(Factory setting)
eMail: info@malighting.de . Tel.: + 49 9 31 49 79 40 . User's Manual MA Booster 1 in 8 RJ45

MA Eight - Way Booster RJ-45

Moving Load
DMX IN
DMX THRU
LOAD = 0
LOAD = 7
POWER
LOAD
O.K.
EIGHT - WAY DMX BOOSTER RJ-45
Direct DMX Output
Signal LEDs
DMX Input with Overload Protection
Direct DMX Output
Eight galvanically separated, enforced outputs
All DMX Outputs are protected against overload
Moving Load adjustable via knob, in case this unit is the last DMX
receiver or distributor
LED confirms power supply
LED confirms the proper receipt of data
100-240 VAC / 50Hz or 60Hz
DMX 512 via RJ-45;
Pin assignment:
Pin 1..3 = Not assigned
Pin 4 =
Data +
Pin 5 =
Data -
Pin 6 =
Not assigned
Pin 7 =
Data-Ground (if Jumper is set internally)
Pin 8 =
Data-Ground (if Jumper is set internally)
Screening =Data-Ground (if Jumper is set internally)
E =
Earth (Housing)
S =
Shield of RJ-45 cable
GND =
GND of DMX
7 + 8 =
Pins of RJ-45 cable
7 + 8 spanned to GND.
E + S spanned.
So Shield is set on Earth, and pins 7 & 8 are transmitting the DMX-
GND galvanically disconnected from Earth
Eight galvanically separated outputs
OPTO - ISOLATED
OUTPUTS
Art.No. 130419
Art.No. 130419
Art.No. 130419
Art.No. 130419
Art.No. 130419

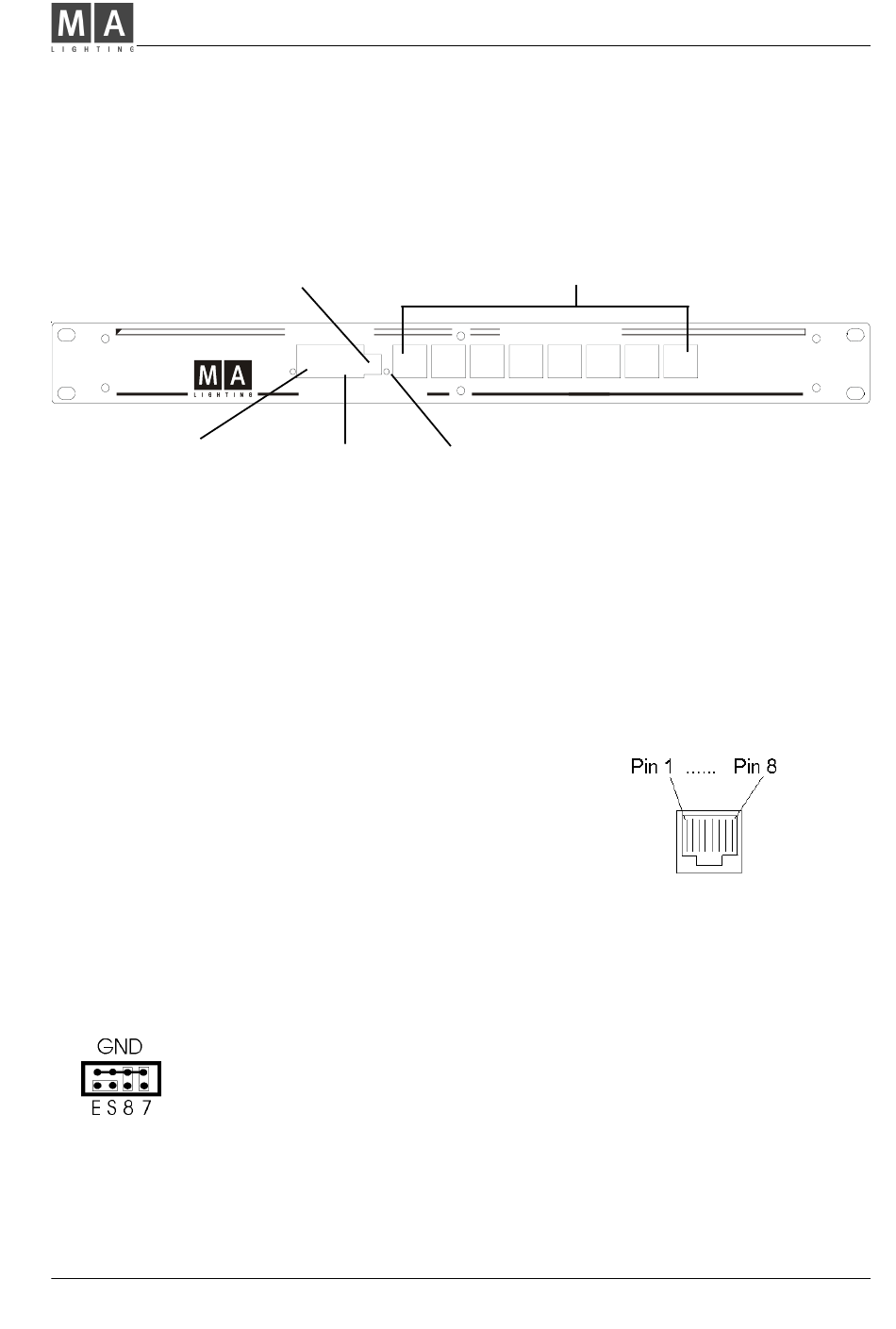

Front View of RJ45
socket
1 1 1 1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RJ-45 and is the answer not in the manual?

Questions and answers

Summary of Contents for MA lighting RJ-45

  • Page 1 Art.No. 130419 MA Eight - Way Booster RJ-45 The MA Eight-Way Booster RJ-45 simplifies the distribution of the DMX signal and contributes to the safe operation of your DMX equipment. The risk of only one single loop is thus being avoided and cable loss is being reduced.
  • Page 2 >NOTE: With total failure of the unit, only the DMX THRU output will continue working. MADE IN GERMANY -- Technical changes are subject to alterations -- 2 2 2 2 2 MA Lighting Technology GmbH . Dachdeckerstr. 16 . 97297 Waldbüttelbrunn . Fax: + 49 9 31 4 97 94 29 . www.malighting.de...
  • Page 3 Manufacturer: MA Lighting Technology GmbH Manufacturer's address: Dachdeckerstrasse 16 D-97247 Waldbüttelbrunn confirms that the product Product Name: MA Eight-Way Booster RJ-45 Product Type: MA Booster RJ-45 complies with the following product specifications: Safety: EN60065, VDE0860, IEC65 EMV (EMC): EN55103-1 (E1), EN50081-1...
