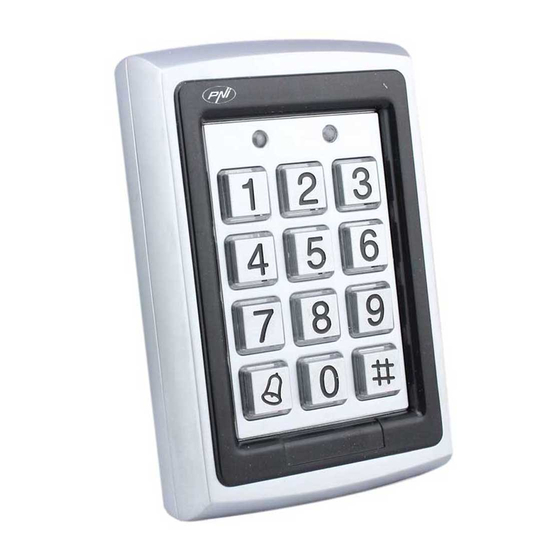

Tastatura control acces

PNI DK101

Manual de utilizare

Need help?

Do you have a question about the Tastatura DK101 and is the answer not in the manual?

Questions and answers

Summary of Contents for PNI Tastatura DK101

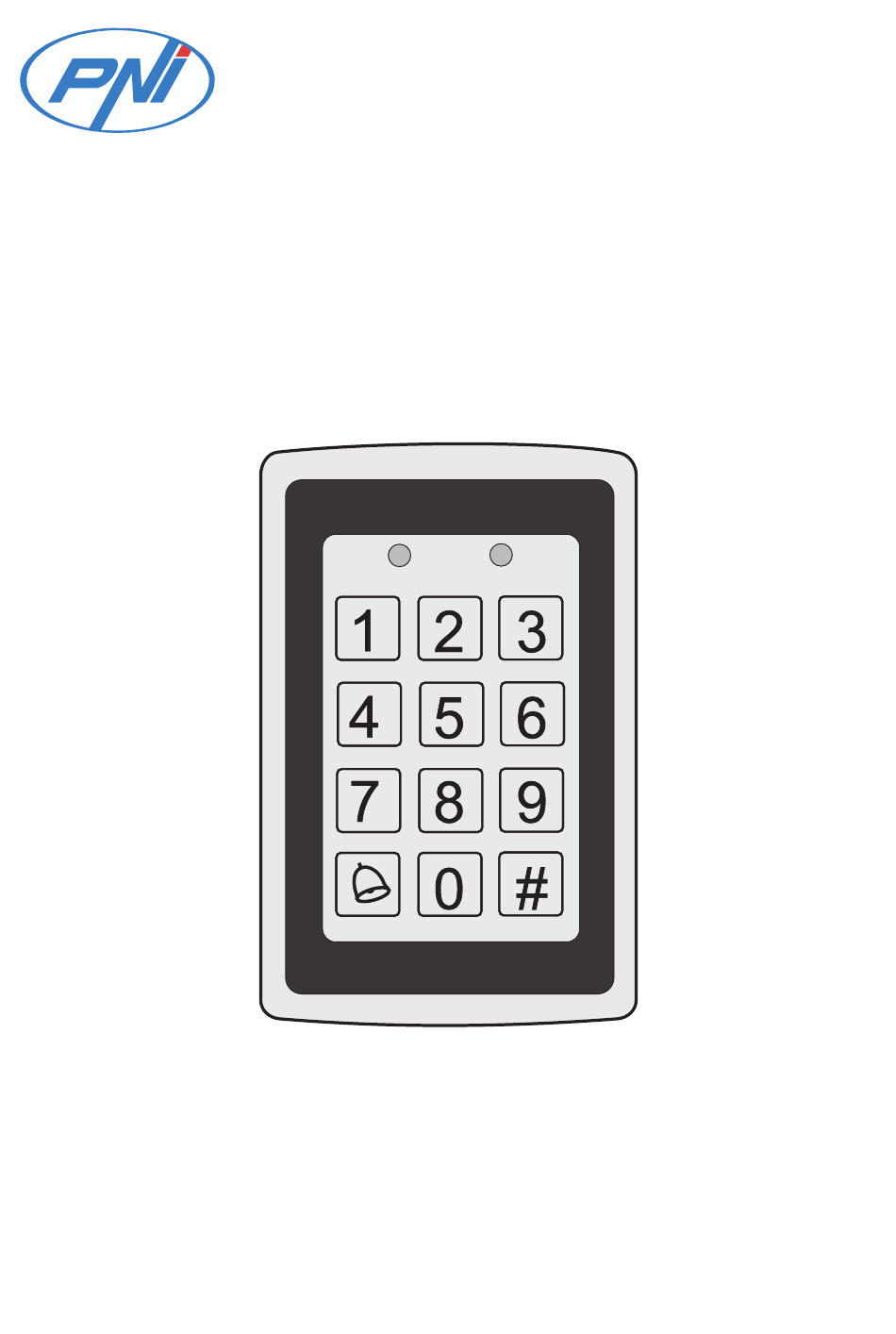

Page 1 Tastatura control acces PNI DK101 Manual de utilizare...
Page 3 Va rugam sa cititi cu atentie acest manual inainte de utilizare. 1. Prezentare produs LED indicator LED indicator stare usa/ mod functionare programare (Rosu) (Verde) Taste numerice Tasta activare Tasta sonerie programare (inchide un circuit) Zona citire card/tag electromagnetic...
Page 4 1. Speciﬁcatii tehnice Tensiune de alimentare 12Vdc+12% / 1.2A Releu pentru yala 12Vdc/2A Temperatura de utilizare -10 ~ 45°C Temperatura de depozitare -10 ~ 55°C Umiditate de utilizare 40~90% RH Umiditate de depozitare 20~90% RH Memorie carduri 1000 bc Memorie coduri 1*public , 1000*private Frecventa cititor intern 125KHz...
Page 5 3. Indicatoare vizuale si acustice 3.1 Mod normal de functionare: - comanda executata: sunet scurt de conﬁrmare - comanda invalida: sunet lung de avertizare 3.2 Mod de programare - LED-ul verde va ﬁ aprins - comanda executata: doua sunete scurte - comanda invalida: trei sunete scurte 4.
Page 6 timpul de deschidere a usii este de 3 secunde atunci TT = Schimbarea codului public: apasati tasta [3] + [cod nou Ÿ din 4 cifre]. Se vor auzi doua sunete scurte de conﬁrmare. Activare/dezactivare contact anti-sabotaj (tamper): Ÿ - apasati tastele [4] + [0] pentru a dezactiva contactul anti- sabotaj.
Page 7 - Stergerea unui card prin numarul sau de referinta: apasati tasta [7] + [numar de referinta 1] + [numar de referinta 2] + ..+ [#]. Dupa introducerea ﬁecarui numar de referinta se va auzi un sunet lung de conﬁrmare a stergerii cardurilor. - Stergerea unui card prin prezentarea acestuia: apasati tasta [7] + prezentare card 1 + prezentare card 2 + ...
Page 8 NOTA: Dupa activarea acestei functii tastatura va emite un sunet continuu cand usa ramane deschisa sau cand usa nu este deschisa de la tastatura. Intarziere alarma: apasati tastele [8] + [2] + [TT], unde TT = Ÿ intervalul de timp in secunde. Veti auzi doua sunete scurte de conﬁrmare.
Page 9 6. Probleme si solutii Dupa deblocarea yalei se - tastatura are nevoie de o aud opt sunete scurte tensiune mai mare, veriﬁcati sursa de alimentare Distanta de citire a - curentul de alimentare este cardului este prea mica prea mic, veriﬁcati sursa de sau cardul nu poate ﬁ...
Page 10 7. Diagrama de conexiuni cu sursa de alimentare cu temporizare Iesire Iesire releu releu yala alarma Sursa de Cititor alimentare Wiegand Yala electrica/ electromagnet Fail Safe Yala electromagnetica incastrata Fail Secure...
Page 11 8. Diagrama de conexiuni cu sursa de alimentare simpla Iesire releu alarma Sursa de Cititor Wiegand alimentare...
Page 12 Tastatura control acces PNI DK101...
Page 13 Control access keypad PNI DK101 User manual...
Page 15 Please read this manual carrefully before using the product. 1. Product description Door status/ Status LED programming (Red) mode LED (Green) Numeric buttons Bell button Programming (closes a button circuit) EM reading area...
Page 16 1. Technical speciﬁcations Power voltage 12Vdc+12% / 1.2A Unlock relay 12Vdc/2A Work ambient temperature -10 ~ 45°C Storage ambient temperature -10 ~ 55°C Work relative humidity 40~90% RH Storage relative humidity 20~90% RH Card memory 1000 bc PIN memory 1*public , 1000*private Reader frequency 125KHz Compatible card type...
Page 17 - card + PIN: press [1] + [1]. You will hear 2 conﬁrmation beeps. NOTE: In card or PNI door open mode the PIN is either the public one or a private one (up to 999). Door open time setting: press [2] + [TT], TT = time interval Ÿ...
Page 18 Change public PIN: press [3] + [new 4 digit PIN]. You will Ÿ hear 2 conﬁrmation beeps. Tamper switch: Ÿ - disable: press [4] + [0]. You will hear 2 conﬁrmation beeps. - enable: press [4] + [1]. You will hear 2 conﬁrmation beeps. Ÿ...
Page 19 NOTE: The private PIN associated to a card will be deleted at the same time with the card. Modify private PINs: Ÿ - disable: press [1] + [2] - enable: press [1] + [3] NOTE: Modify private PIN: exit programming mode the long press [#] (the green LED will light) + present card + [old private PIN] (default 0000) + [new private PIN] + [repeat new private PIN].
Page 20 Restore factory default: press [8] + [6] Ÿ Reset programming PIN: short the J2 jumper to reset Ÿ programming PIN to factory default. 5. User instruction Card or PIN door open mode: - present card or type your private PIN on the keypad Card + PIN door open mode: - present card the type your private PIN on the keypad...
Page 21 6. Frequently asked questions After the lock is opened - the keypad needs higher there are 8 short beeps voltage, please check the power supply The card reading distance - the electric current is to low, is to short or the card please check the power supply can’t be read After presenting the card...
Page 22 7. Wiring diagram with time delay power supply Lock Alarm relay relay output output Power Wiegand supply reader Fail Safe electric/ electromagnetic lock Fail Secure built-in electromagnetic lock...
Page 23 8. Wiring diagram with simple power supply Alarm relay output Power Wiegand reader supply...
Page 24 PNI DK101 Control access keypad...
