Summary of Contents for Srne SR-EOV24
- Page 1 File version: V1.0 SR-EOV24 Vertical Energy Storage System User Manual V1.0 SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 1 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
-
Page 2: Range Of Application
Registered Jack 45 State Of Charge Charge C-rate RS485 RS485 Communication Interface Controller Area Network SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 2 of 51 F: +86 0755-27325578 W: www.srnesolar.com... -
Page 3: Safety Precautions
Do not touch the product in 5mins after shutdown Comply with RoHS standard The Energy storage system should not be disposed together with the household waste. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 4: General Safety
DANGER! weather, such as thunder, rain, snow, and gale level 6. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 5: Personnel Safety
● Never place the battery in the fire to avoid explosion and prevent the personal safety from being endangered. ● Do not place the battery module in water or other liquids. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 6: Personnel Requirements
Never install or remove any power cables when the power is on. The electric arcs or sparks may be generated at the moment when the power cable contacts with the conductor, which may cause fire or personal injuries. DANGER! SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 7: Grounding Requirements
● Do not place any inflammable or explosive items around the device. ● When the device is running, do not block the ventilation vent or heat dissipation system to prevent fire caused by high temperature. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 8: Product Introduction
SPWM technology, outputs pure sine wave, converts direct current into alternating current, and is applicable for household appliances, power tools and other AC loads. The typical topological diagram for application of the system is as follows: SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 9: System Specifications
4000W SR-EOV24-20.0S-S1 20.48kWh 3500W 230Vac 50Hz 0～80A 4000W SR-EOV24-20.0U-S1 20.48kWh 3500W 120Vac 60Hz 0～80A 4000W SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 9 of 51 F: +86 0755-27325578 W: www.srnesolar.com... -
Page 10: Model Coding
S: The output voltage is 220V ⑤ Product category C: Power module ⑥ Version number 1: Version 1 SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 10 of 51 F: +86 0755-27325578 W: www.srnesolar.com... - Page 11 SR-EOV series energy storage system supports the capacity expansion with up to four energy storage modules. 5KWH 15KWH 10KWH 20KWH SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 11 of 51 F: +86 0755-27325578...
-

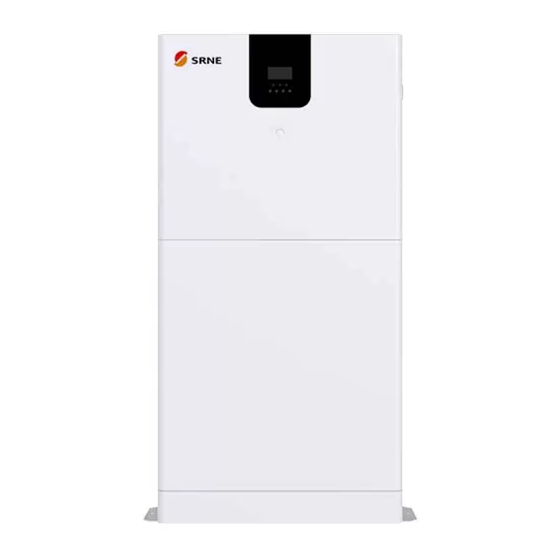

Page 12: Appearance Description
Inverter dimensions（L*W*H）:600*184*500mm Battery dimensions（L*W*H）:600*184*610mm Base dimensions（L*W*H）:680*184*80mm 3.5.2 Power Conversion System Module The power of power conversion system is 3.5KW. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 12 of 51 F: +86 0755-27325578... - Page 13 ⑤ RS485-2 Connect battery RJ45 8-RS485-B 1-5V 2-GND ⑦ RS485-1 Connect PC/WiFi RJ45 7-RS485-A 8-RS485-B SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 13 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 14 (Connect other battery) (Connect other battery) ⑬ ⑭ ⑮ Battery Negative Battery Positive Grounding screw SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 14 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
-
Page 15: Application Scenarios
BMS system, which can be easily expanded and can be combined into 20Kwh battery pack at most. The battery storage can be combined with SRNE brand inverter to form an off-grid photovoltaic system, which can solve the problem of electricity consumption in areas without electricity. - Page 16 During the day, the photovoltaic directly supplies power to the loads while charging the battery. At night, the battery supplies power to the loads through the power module. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
- Page 17 At night, the mains supplies power to the loads, and continues to charge the battery, if the battery is not fully charged. If the mains is disconnected, the battery supplies power to the loads. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
-
Page 18: System Installation
After opening outer package of the energy storage, check if the deliverable is complete and whether there is any visible external damage. If any items are missing or damaged, please contact us. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... - Page 19 M5*10 Package Battery Fixing screw M6*35 Package Battery Hexagon wrench 120*30mm Package N:Number of batteries SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 19 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 20 (e.g. typhoons, monsoons) or topographical conditions (dams, hills). ● Do not install in the place where children can touch. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
-
Page 21: Installation Space Requirements
5.3.2 Installation Space Requirements When installing the energy storage, certain space shall be left around it to ensure sufficient space for installation and heat dissipation. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 22: Device Installation
In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes. DANGER! Choose suitable firm wall with thickness greater than 80mm. CAUTION SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 22 of 51 F: +86 0755-27325578 W: www.srnesolar.com... - Page 23 Place the battery on the base, and then tighten the fixing screws on both sides. Install the second battery in the same way. After the installation is complete, install the wall fixing bracket. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
- Page 24 File version: V1.0 5.4.5 Install Inverter The installation method of the inverter is the same as that of the battery. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 24 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
-
Page 25: Electrical Connection
It shall be noticed that the red cable should be connected to the red terminal (positive battery terminal) and the black cable to the black terminal (negative battery terminal). SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... - Page 26 File version: V1.0 Power Cable Power Cable ground screw SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 26 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 27 The signal line delivered with the product together shall be used to connect RS485-2 interface for each battery module. The inverter communication interface connects the 485-2 and the 485-1 interface of the battery. Signal Cable SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
-
Page 28: Connecting Ac Input
According to the cable sequence and terminal position shown in the figure below, correctly connect the AC input line. Please pay attention to L and N and avoid short-circuit when wiring. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 29: Wiring Specifications
12mm /10AWG SR-EOV24-3.5S-C0 /10AWG /10AWG 12mm /10AWG SR-EOV24-3.5U-C0 /10AWG /10AWG SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 29 of 51 F: +86 0755-27325578 W: www.srnesolar.com... -
Page 30: System Debugging
7.2 Power-On of Power Module 7.2.1 Inverter Breaker Sequence First, Turn on the battery input breaker switch; then turn on the PV, AC output and AC input breaker switch. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... - Page 31 Power Off Normal Blinking1 Steady Alarm Blinking1 Blinking3 Normal Charging Alarm Blinking3 Over Charge Protection SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 31 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 32 After all loads are connected, press the button switch on the front of the machine, The "AC/INV" indicator flashing indicates that the inverter is working normally. Inverter ON/OFF SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
- Page 33 Description Enter/Exit Settings menu Previous choice DOWN Next choice Confirm/Enter Options under the settings menu SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 33 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 34 Model Battery Voltage Model Output Power Rating Rating Model PV Voltage Rating Model PV Current Rating SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 34 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 35 24.0V set value, and the output is switched Utility Setpoint from the inverter to the mains. Setting range: 20V~26V. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 35 of 51 F: +86 0755-27325578...
- Page 36 Battery Type 9strings LFP battery,charge voltage is LF09 31.8V 7 strings NCM battery, charge voltage is 28.4V SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 36 of 51 F: +86 0755-27325578...
- Page 37 20V~26V, with a SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 37 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 38 [21] equalization Start equalizing charge immediately. immediately Power saving [22] Power saving mode disabled. mode SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 38 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
- Page 39 [27] Bypass output It is disabled to automatically switch SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 39 of 51 F: +86 0755-27325578...
- Page 40 220V Settable： (200/208/220/240Vac） AC output voltage [38] setting 110V Settable： (100/105/110Vac） SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 40 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
-
Page 41: System Maintenance
Step 4 Turn off the battery breaker switch, all LED indicators are off. Step 5 Turn off button on all storage battery modules, the energy storage is powered off successfully. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 42: Routine Maintenance
Check if the grounding cable is grounded reliably. and testing, and once every six reliability months to one year thereafter. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 42 of 51 F: +86 0755-27325578 W: www.srnesolar.com... -
Page 43: Troubleshooting
Battery over current warning 【63】 BmsBatVoltLow Battery low voltage warning 【64】 BmsBatOverVolt Battery over voltage warning SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 43 of 51 F: +86 0755-27325578 W: www.srnesolar.com... - Page 44 4. Requirements for the storage environment: – Ambient temperature: -10℃ to 55 ℃, recommended storage temperature: 20℃ to 30℃. – Relative humidity: 5%RH-80%RH. – Dry, well ventilated, and clean. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com...
- Page 45 <-10℃ Prohibited -10~25℃ ≤12 months 25~35℃ 5%~70% ≤6 months 30%≤SOC≤60% 35~45℃ ≤3 months >45℃ Prohibited SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 45 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
-
Page 46: Device Cleaning
The product shall not be cleaned with organic solvents, corrosive liquids and other cleaning products. If the fan fails, it can be replaced by a professional. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 47: Technical Data
EMC Certification Level EN61000, C2 EN61000, C2 Gross Weight 30Kg 30Kg Dimension L× D× H 600×184×500 600×184×500 SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 47 of 51 F: +86 0755-27325578 W: www.srnesolar.com... - Page 48 Recommended Operation Environment Indoor Installation Method Vertical Gross Weight 70kg Dimension L× D× H 600×184×610 SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 48 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
-
Page 49: Product Dimensions
The energy storage battery module and Inverter module are packed in wooden cases with the size of 1,400*1,400*1,200, the number of packs is 16PCS, and the total weight is 1120Kg. SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com... -
Page 50: Packaging List
Package Battery Screw M5*10 Package Battery Fixing screw M6*35 Package Battery Hexagon wrench 120*30mm Package SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 50 of 51 F: +86 0755-27325578 W: www.srnesolar.com... - Page 51 File version: V1.0 Battery Power cable 560mm,4AWG Package Battery Signal cable 700mm Package Inverter User Manual Package SRNE Solar Co., Ltd. 4-5F,13A Wutong Island, Neihuan Road, Xixiang, Shenzhen,China T: +86 0755-26458295 E: master@szshuori.com Page 51 of 51 F: +86 0755-27325578 W: www.srnesolar.com...
