Simon XTi System Manual
«
Help Center
Simon XTi - System Manual
System
Arm & Disarm
Overview
the System
System Overview

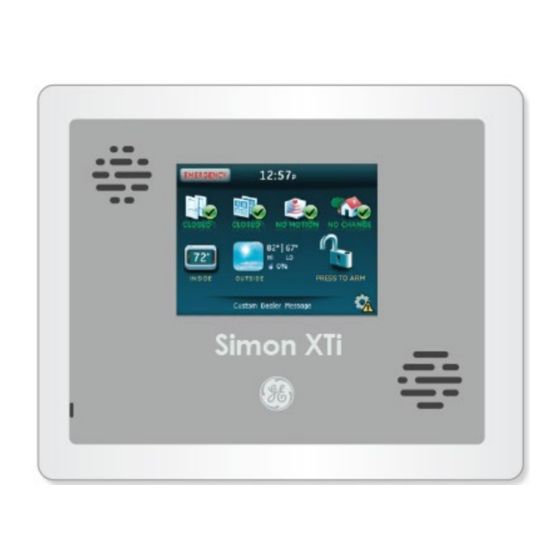

Your security system is made up of a control panel, one or more keypads and various sensors and
detectors. The control panel will be mounted out of the way in a utility closet or in a basement.
All the keypads have an audible indicator and command entry keys. The LED keypads have a group of
zone and system status lights. The LCD keypad has an alphanumeric liquid crystal display (LCD). The
keypad is used to send commands to the system and to display the current system status. The keypad(s)
will be mounted in a convenient location inside the protected premises close to the entry/exit door(s).
Arm & Disarm the System
Arming
http://alpha.adt.com/help/266[11/14/2018 8:05:18 PM]
Select
Panic Alarms
Trouble
Conditions
User Access
System Testing Other System
Codes
Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTi and is the answer not in the manual?

Questions and answers

Related Manuals for Simon XTi

Summary of Contents for Simon XTi

  • Page 1 Simon XTi System Manual Select « Help Center Simon XTi - System Manual System Arm & Disarm Panic Alarms Trouble User Access System Testing Other System Overview the System Conditions Codes Information System Overview Your security system is made up of a control panel, one or more keypads and various sensors and detectors.
  • Page 2 Simon XTi System Manual Arming a sensor makes it active and allows the panel to generate an alarm when a door or window is opened or when an unauthorized person enters a specific area. Disarming makes the sensor inactive in the system. The current arming level is shown on the screen (see Table 4 on page 5) and changes in arming level are announced on the speaker.

  • Page 3: Exit/Entry Delay

    1. Press [PRESS TO DISARM]. 2. Enter your [security code] when the keypad screen appears. Exit/Entry Delay Your Simon XTi provides a delay after entering or exiting your home before the system is armed or disarmed. Silent Exit The silent exit feature silences the status beeps that accompany the exit delay. Press [ON] next to Silent exit (Figure 3 on page 8) before pressing the arming level icon to silence status beeps.

  • Page 4: Exit Delay Extension

    Simon XTi System Manual Note: The designated door may be opened and closed only once. If you close the designated door behind you when you exit, you will need to disarm the system upon re-entering. Leave the designated door open while using the quick exit feature.

  • Page 5: Panic Alarms

    Simon XTi System Manual Special Chime To enable or disable the special chime feature: 1. Enter the Status & Settings menu and scroll to the Special Chime option. 2. Press [On] or [Off] to modify the setting (a gold icon indicates the option is selected).

  • Page 6: Trouble Conditions

    Simon XTi System Manual Panel Voice (Spoken phrases on the speaker and key press sounds from the speaker heard while controlling the system.) This option determines whether the panel speaks status messages and arming level changes. To program panel voice: 1.

  • Page 7: Access Codes

    Simon XTi System Manual At this point, you are in the Programming menu. At this level, the following submenus are accessible: Access Codes Security Phone Numbers Siren Options System Tests Interactive Services (Optional. Ask your dealer for more information.) Access Codes...

  • Page 8: System Testing

    Simon XTi System Manual 1. From the Programming screen, press [SECURITY]. 2. Press the Security icon. 3. To turn on an option, press the box. To turn off an option, press the checked box. 4. Press [CLOSE] repeatedly to exit menus.

  • Page 9: Time And Date

    Simon XTi System Manual 1. Call the central station and tell the operator that you will be testing the system. 2. Arm the system. 3. Test an emergency panic icon and trip at least one sensor of each type (fire, intrusion, etc.) to verify that the appropriate alarms are working correctly.
  • Page 10 Simon XTi System Manual To set the beep volume: 1. From the Status & Settings screen, next to Beep Volume, press the left arrow to lower the beep volume and the right arrow to raise the beep volume. 2. The bars between the arrows register the volume level. One bar is softest. Four bars is loudest.
