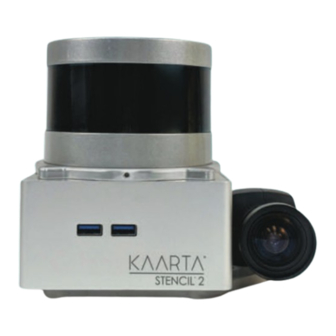

kaarta STENCIL 2 Quick Start Manual

ST E NCI L L AYO U T
Stencil Power/Mode Switch Functions
LEFT BUTTON
Turns Stencil on & Starts Mapping/Localization
Push button once to power Stencil on.
Once power has been applied to the lidar for more
than 60 seconds, press button again to start
solid green.
Turns Stencil o
QUICK S TAR T GUIDE
Feature Tracker Cable
USB Status Indicator
Velodyne Inline Connector
B UT TON S & PO RT S
Stops Mapping/Localization
teal), press once to stop mapping. USB Indicator
Restarts Mapping/Localization
Wait until USB Indicator turns blue before
restarting.
Velodyne Lidar
Sensor
GNSS Bracket
Mounting Plate
Feature Tracker
Tripod Mounting
Plate
Air Exhaust Vents
HDMI Port #1
Ethernet (RJ-45)
Feature Tracker Cable Port / USB3 Port #1
HDMI Port #2
USB Status Indicator Port / USB3 Port #2
Power Input (Stencil AC Adapter Port)
Velodyne Inline Connector Port
WH AT' S IN T HE BOX ?
Kaarta USB
WiFi Dongle
Documentation Drive
V-Mount Battery
Stencil
AC Charger
V-Mount Battery Cable
Battery Charger
Kaarta Warranty Velodyne Declaration
Registration Card of Conformity
Apple iPad
Shipping Case
with AC Charger
USB3 Port #3
*Only three USB3 ports should be used
simultaneously. Use a USB3 hub in Port #3 or
Port #4 if more than three ports are needed.
Lidar Power Switch Functions
RIGHT BUTTON
Turns Lidar on
Push once to power lidar on. (If LED ring does not
light or stay on, push button further in until it
latches.)
Turns Lidar o
unlatches.
(US Only)
USB3 Port #4*
