ENGLISH
Quick Guide for 4K Photo
Catching the best moment with 4K Photo ([4K Burst] / [4K Burst(S/S)] / [4K Pre-Burst])
You can select the desired moment from a burst of 4K photos taken at 30 frames/second and save that moment as a picture of approx. 8 million pixels.
1
Recording 4K Photos
1
Press [
] button
2
Press
to select the recording method and press
[MENU/SET]
For capturing the best shot of a fast-moving subject (e.g., sports, aeroplanes, trains)
[4K Burst]
Burst recording is performed while the shutter button is pressed and held. The shutter sound
will be heard repeatedly.
1
Press the shutter button halfway
2
Press and hold the shutter button fully for as long as you want to
perform recording
●
Recording will start approximately 0.5 seconds after you press the shutter button fully. Therefore, press
the button fully as soon as possible.
●
If you are using Auto Focus, continuous AF will work while recording. Focus will be adjusted
continuously.
●
Continuous recording length: Up to 15 minutes
For capturing unpredictable photo opportunities (e.g., plants, animals, children)
[4K Burst(S/S)]
Burst recording starts when the shutter button is pressed and stops when pressed again.
Start and stop tones will be heard.
1
Press the shutter button fully
2
Press the shutter button fully again
●
If you are using Auto Focus, continuous AF will work while recording. Focus will be adjusted
continuously.
●
Continuous recording length: Up to 15 minutes
For recording as needed whenever a photo opportunity arises (e.g., the moment when a
ball is thrown)
[4K Pre-Burst]
Burst recording is performed for approximately 1 second before and after the moment that the
shutter button is pressed. The shutter sound will be heard only once.
1
Press the shutter button fully
●
In situations where you want to lock focus and exposure, such as when the subject is not at the
center, use [AF/AE LOCK].
●
Recording length: Approximately 2 seconds
■
2
To cancel the 4K Photo functions: In step
, select [
] .
●
When you perform 4K burst photo recording, a 4K burst file will be saved in the MP4 format.
●
Use a UHS Speed Class 3 card.
●
When you are using an SDHC memory card, you can continue recording without interruption even if the file exceeds 4 GB, but the motion picture file will be recorded and played
back in separate files. If using an SDXC Memory Card, you can record a motion picture in a single file even if the size is greater than 4 GB.
●
When recording 4K photos, the angle of view becomes narrower.
●
If the surrounding temperature is high, or 4K photos are recorded continuously, or the temperature of the camera rises, [
halfway through to protect the camera. Wait until the camera cools down.
●
When [
] ([4K Pre-Burst]) is set, the battery drains faster and the camera temperature rises. Select [

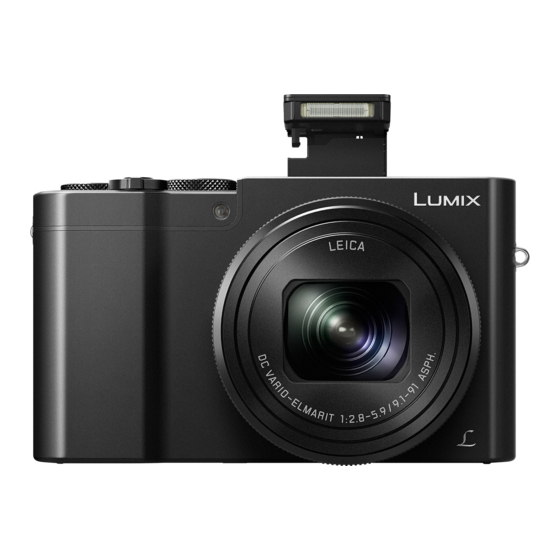

DMC-ZS100/DMC-ZS60
Model No.
ZS100
ZS60
Shutter button
Shutter button
[
] button
[
] button
Press and hold
Recording is performed
Start (First)
Stop (Second)
Recording is performed
Approximately 1 second
Recording is performed
] may be displayed and recording may be stopped
] ([4K Pre-Burst]) only when recording.
Digital Camera
To record the subject with reduced blur
Set mode dial to [
]
SQC0339
ZS100
Set the shutter speed by rotating the rear dial
ZS60
Set the shutter speed by rotating the control dial
●
Approximate shutter speed for outdoor recording in fine weather conditions: 1/1000 seconds or faster.
●
If you increase the shutter speed, the ISO sensitivity becomes higher, which may increase the noise on the screen.
Adding markers to select and save pictures ([4K Burst(S/S)] only):
When you press the [Fn1] button while recording, you can add a marker. (Up to 40 markers for each recording.) When selecting and saving pictures
from a 4K burst file, you can skip to the positions where you added markers.
2
Selecting pictures from 4K burst file and saving
1
Select a 4K burst file on the playback screen, and press
●
[
] is displayed on a 4K burst file.
●
The slide view screen for selecting pictures will be displayed.
2
Touch and drag the frames to select the frame you want to save as a picture
●
You can display the previous or next 45 frames in slide view by touching [
only).
When a file with long burst time is selected ([4K Burst]/[4K Burst(S/S)] only):
Make a rough selection of scenes using the 4K burst playback screen first, and select the desired frame you want to save as a picture using the slide view
screen.
Press [Fn2] button to display the 4K burst playback screen
Press
and perform continuous playback
●
You can start continuous rewind by pressing
●
You can start fast rewind/forward during continuous playback by pressing
On the scene you want to save as a picture, press
Press [Fn2] button to display the slide view screen
3
Press [MENU/SET] to save the picture
●
The same operation can be performed by touching [
Saving a picture by selecting a focus point after recording ([Post Focus])
You can record bursts of photos with the same quality as a 4K photo while automatically changing the focus point.
1
Recording using [Post Focus]
1
Press [
] button
2
Press
to select [ON] and press [MENU/SET]
3
Determine the composition and press the shutter
button halfway
4
Press the shutter button fully to start recording
■
To cancel [Post Focus]: Select [OFF] in step
Layering brighter parts into a single still picture ([Light Composition])
Select multiple frames from 4K burst files recorded in 4K Photo mode that you wish to combine. Parts of the image that are brighter
than the preceding frame will be superimposed on the preceding frame to combine the frames into one picture. Refer to "Basic
Owner's Manual" for details.
]/[
] ([4K Burst]/[4K Burst(S/S)]
. To pause the rewind operation, press
again.
. To return to continuous playback, press
to stop playback
]. The picture will be saved in JPEG format.
2
Select the focus point and save the picture
1
On the playback screen, select the image with
the [
] icon and press
2
Select the focus point by touching it
3
Touch [
] to save the picture
●
The picture will be saved in JPEG format.
2
.
.
