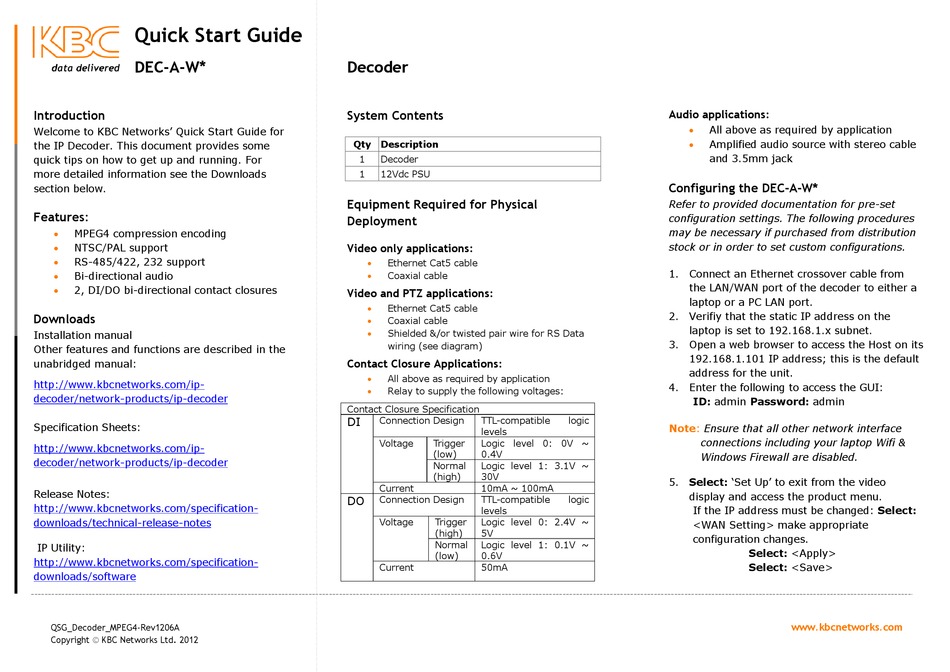

KBC DEC-A-W Quick Start Manual

Quick Start Guide
DEC-A-W*
Introduction
Welcome to KBC Networks' Quick Start Guide for
the IP Decoder. This document provides some
quick tips on how to get up and running. For
more detailed information see the Downloads
section below.
Features:
 MPEG4 compression encoding
 NTSC/PAL support
 RS-485/422, 232 support
 Bi-directional audio
 2, DI/DO bi-directional contact closures
Downloads
Installation manual
Other features and functions are described in the
unabridged manual:
http://www.kbcnetworks.com/ip-
decoder/network-products/ip-decoder
Specification Sheets:
http://www.kbcnetworks.com/ip-
decoder/network-products/ip-decoder
Release Notes:
http://www.kbcnetworks.com/specification-
downloads/technical-release-notes
IP Utility:
http://www.kbcnetworks.com/specification-
downloads/software
QSG_Decoder_MPEG4-Rev1206A
Copyright © KBC Networks Ltd. 2012
Decoder
System Contents
Qty Description
1 Decoder
1 12Vdc PSU
Equipment Required for Physical
Deployment
Video only applications:
 Ethernet Cat5 cable
 Coaxial cable
Video and PTZ applications:
 Ethernet Cat5 cable
 Coaxial cable
 Shielded &/or twisted pair wire for RS Data
wiring (see diagram)
Contact Closure Applications:
 All above as required by application
 Relay to supply the following voltages:
Contact Closure Specification
DI Connection Design TTL-compatible
levels
Voltage Trigger Logic level 0: 0V ~
(low) 0.4V
Normal Logic level 1: 3.1V ~
(high) 30V
Current 10mA ~ 100mA
DO Connection Design TTL-compatible
levels
Voltage Trigger Logic level 0: 2.4V ~
(high) 5V
Normal Logic level 1: 0.1V ~
(low) 0.6V
Current 50mA
Audio applications:
 All above as required by application
 Amplified audio source with stereo cable
and 3.5mm jack
Configuring the DEC-A-W*
Refer to provided documentation for pre-set
configuration settings. The following procedures
may be necessary if purchased from distribution
stock or in order to set custom configurations.
1. Connect an Ethernet crossover cable from
the LAN/WAN port of the decoder to either a
laptop or a PC LAN port.
2. Verifiy that the static IP address on the
laptop is set to 192.168.1.x subnet.
3. Open a web browser to access the Host on its
192.168.1.101 IP address; this is the default
address for the unit.
4. Enter the following to access the GUI:
ID: admin Password: admin
logic
Note: Ensure that all other network interface
connections including your laptop Wifi &
Windows Firewall are disabled.
5. Select: 'Set Up' to exit from the video
display and access the product menu.
logic
If the IP address must be changed: Select:
<WAN Setting> make appropriate
configuration changes.
Select: <Apply>
Select: <Save>
www.kbcnetworks.com
