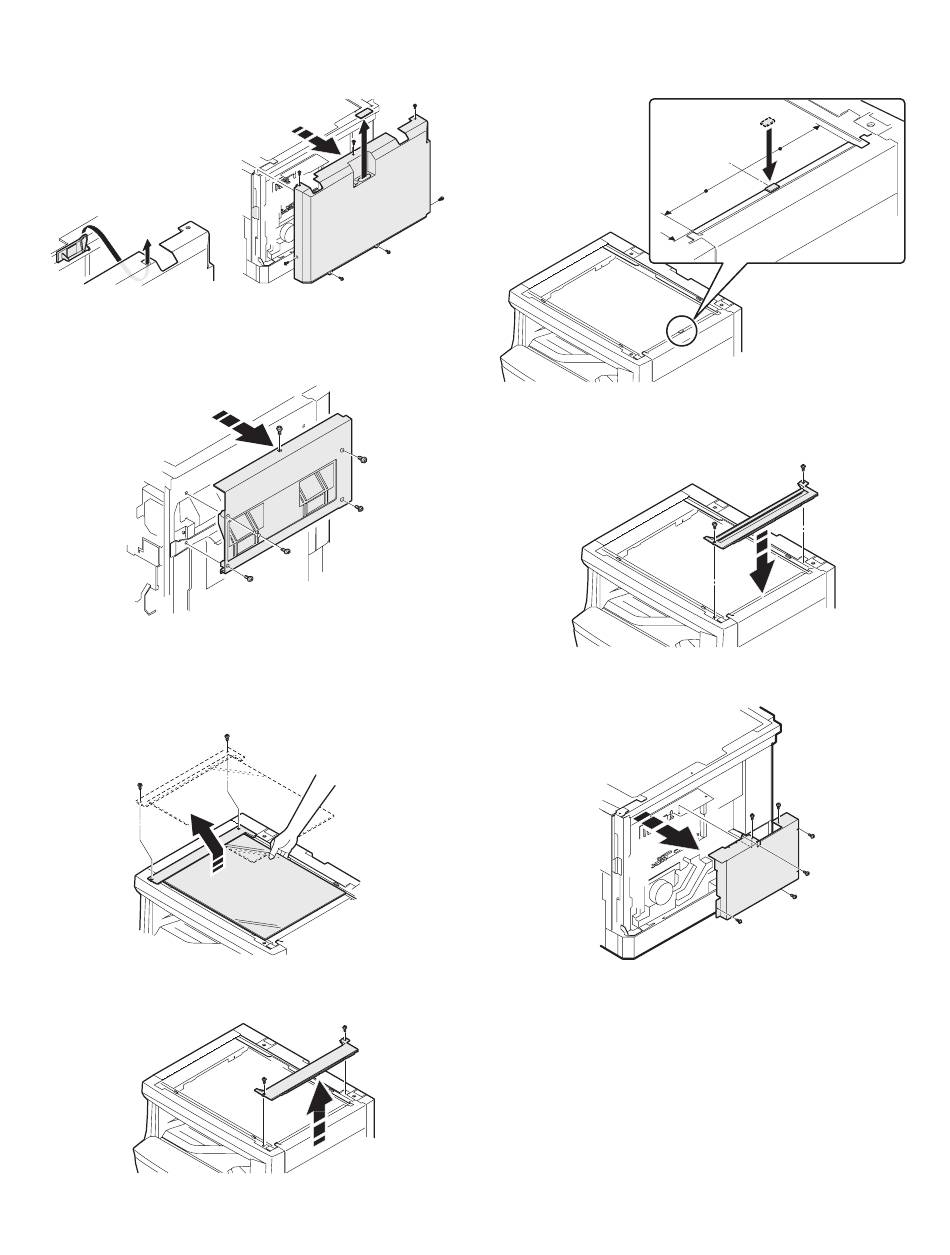

2) Remove the rear cabinet of the copier.
Remove the seven screws and remove the cabinet.
Remove the connector cover.
∗
If a open/close detection is attached, be careful not to break the
actuator.
3) Remove the right cabinet.
Remove the five screws.
4) Remove the document glass holder (left side) and the
document glass.
Remove the two screws and carefully remove the document glass
holder (left side) and the document glass. Do not separate the glass
and holder.
5) Remove the document glass holder cover (right side).
Remove the two screws.
6) Attach the cushion (one position).
Remove the cover of the double-sided adhesive tape and paste the
cushion taking care not to allow it to extend over the plate edges.
7) Attach the SPF glass holder cover.
After attaching the SPF glass holding cover, attach the document
glass.
8) Remove the PWB shield plate.
Remove the six screws.
– 2 –
