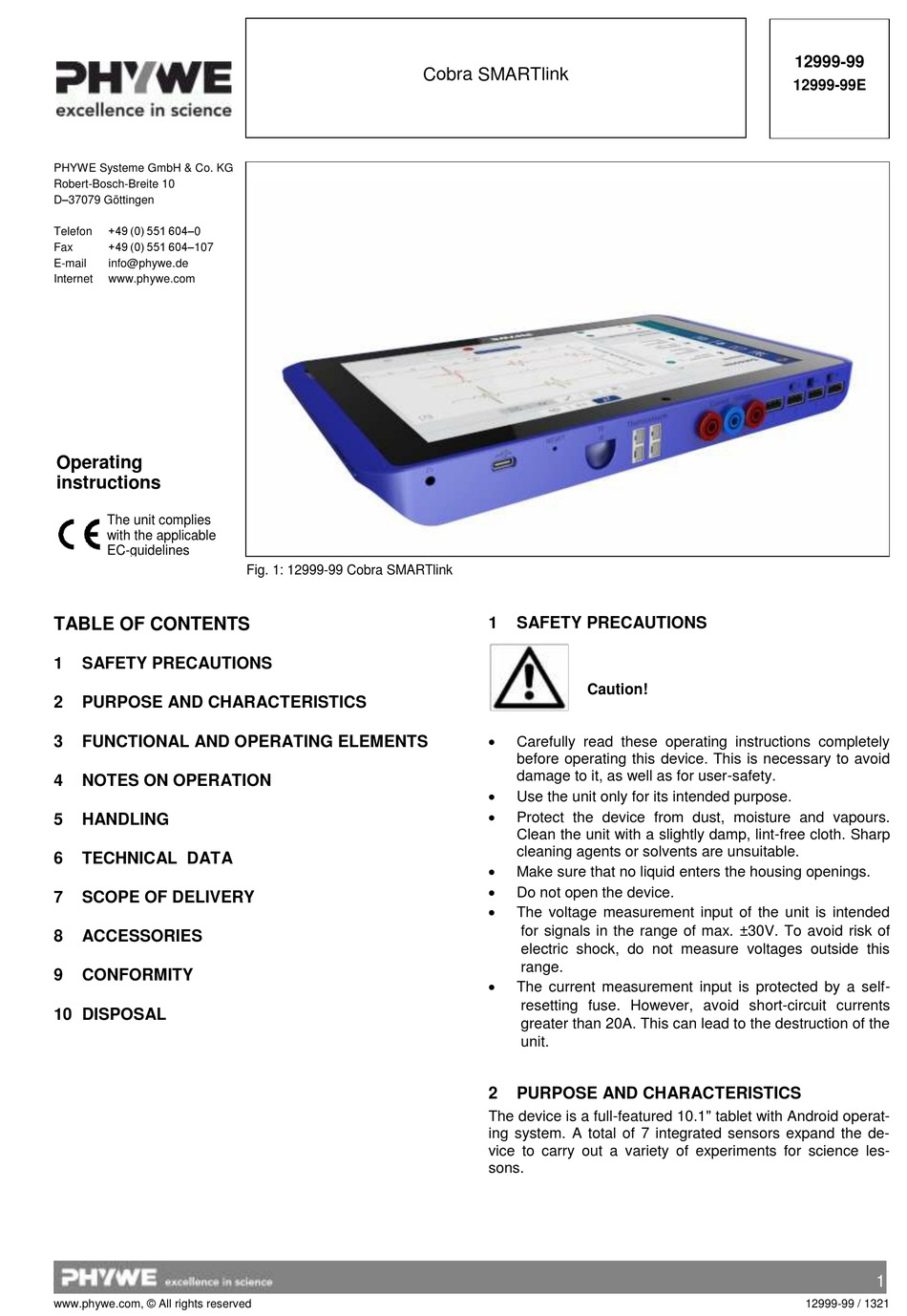

PHYWE Cobra SMARTlink Operating Instructions Manual

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
D–37079 Göttingen
+49 (0) 551 604–0
Telefon
+49 (0) 551 604–107
Fax
E-mail info@phywe.de
Internet www.phywe.com
Operating
instructions
The unit complies
with the applicable
EC-guidelines
TABLE OF CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND CHARACTERISTICS
3 FUNCTIONAL AND OPERATING ELEMENTS
4 NOTES ON OPERATION
5 HANDLING
6 TECHNICAL DATA
7 SCOPE OF DELIVERY
8 ACCESSORIES
9 CONFORMITY
10 DISPOSAL
www.phywe.com, © All rights reserved
Fig. 1: 12999-99 Cobra SMARTlink
Cobra SMARTlink
1 SAFETY PRECAUTIONS
Caution!

Carefully read these operating instructions completely
before operating this device. This is necessary to avoid
damage to it, as well as for user-safety.

Use the unit only for its intended purpose.

Protect the device from dust, moisture and vapours.
Clean the unit with a slightly damp, lint-free cloth. Sharp
cleaning agents or solvents are unsuitable.

Make sure that no liquid enters the housing openings.

Do not open the device.

The voltage measurement input of the unit is intended
for signals in the range of max. ±30V. To avoid risk of
electric shock, do not measure voltages outside this
range.

The current measurement input is protected by a self-
resetting fuse. However, avoid short-circuit currents
greater than 20A. This can lead to the destruction of the
unit.
2 PURPOSE AND CHARACTERISTICS

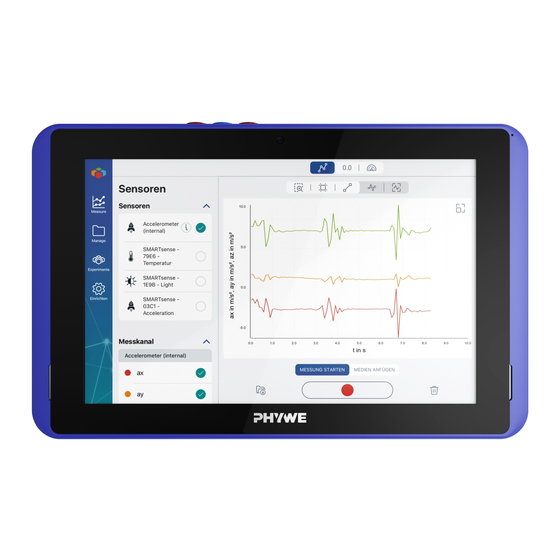

The device is a full-featured 10.1" tablet with Android operat-
ing system. A total of 7 integrated sensors expand the de-
vice to carry out a variety of experiments for science les-
sons.
12999-99
12999-99E
1
12999-99 / 1321
