ASSEMBLY INSTRUCTIONS
FBL-848

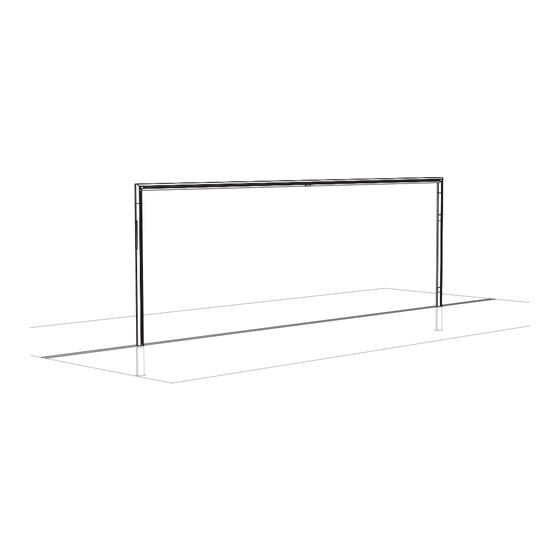

7.32x2.44m 3G Stadium Pro Goal
A minimum of 2 people are required for this assembly
30
mins
Estimated 30 minutes assembly time
i
IMPORTANT:
the ground to at least the specification detailed in this document
i
IMPORTANT: Please read these assembly instructions carefully
before starting to assemble your goal
(not including sockets)
This goal
must
be secured in sockets concreted into
INS848
Revision 8
12/09/2019
GB2552496
Advertisement
Table of Contents
Related Manuals for Harrod Sport FBL-848
Summary of Contents for Harrod Sport FBL-848

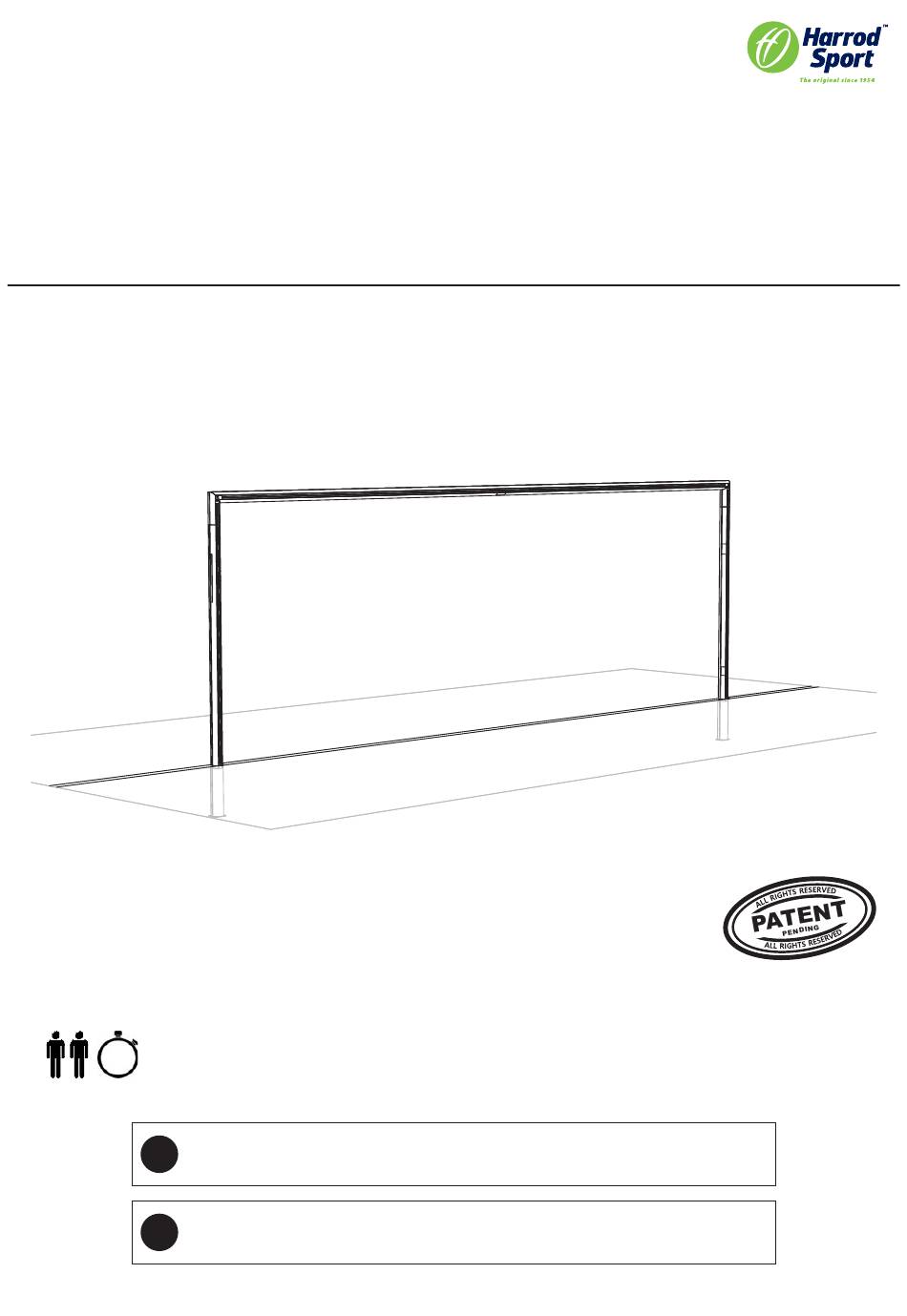

- Page 1 ASSEMBLY INSTRUCTIONS INS848 Revision 8 FBL-848 12/09/2019 7.32x2.44m 3G Stadium Pro Goal GB2552496 A minimum of 2 people are required for this assembly mins Estimated 30 minutes assembly time (not including sockets) IMPORTANT: This goal must be secured in sockets concreted into...
- Page 2 Code FBL-848 Product 7.32x2.44m 3G Stadium Pro Goal Pack Contents Stadium Pro Goal Crossbar L/H Upright R/H Upright Tools Required 1x 17mm Spanner (FEP878) 17mm 1x 4mm Allen Key (supplied) 1x 5mm Allen Key (supplied) 1x 8mm Allen Key (supplied)
- Page 3 Code FBL-848 Product 7.32x2.44m 3G Stadium Pro Goal Fittings Pack Contents FPK848: Stadium Pro Fittings Socket Upright Connector Socket Wedge Socket Lid 8mm Allen Key 5mm Allen Key 10. 4mm Allen Key 11. Net Holder Clip WEQ338 PEP899 APP239 (SKT-002) 12.
- Page 4 Code FBL-848 Product 7.32x2.44m 3G Stadium Pro Goal Socket Installation Dig 2 holes, L600mm x W600mm x D640-700mm, with the centre of each hole in the centre of the goal line, 7422mm apart. Position the Aluminium Sockets (4) centrally in the hole with the top of each Socket sitting 25mm below ground level, ensure the straight edge of the Socket is perpendicular to the goal line and the Sockets are sitting vertical.
- Page 5 Code FBL-848 Product 7.32x2.44m 3G Stadium Pro Goal Assembly Instructions Insert an Upright Connector (5) into each end of the Crossbar (1). Fix the Connectors in place using two M10x30mm Button Head Screws (15) and two M10 Nord-Lock Washers (16) per Connector.
- Page 6 Code FBL-848 Product 7.32x2.44m 3G Stadium Pro Goal Insert the Adjuster Handles (17) into the square bores in each Upright. Simultaneously rotate the adjusters clockwise to lower the goal and anti-clockwise to raise. Each full rotation of the handle equates to a height adjustment of 0.9mm. Rules of the game for senior 11-a-side competition dictates the height from the ground to the underside of the crossbar to be 2.44m.
- Page 7 Code FBL-848 Product 7.32x2.44m 3G Stadium Pro Goal Attach the Net Holder Clip (11) to the Crossbar plate using an M10x16mm Socket Set Screw (14).To attach the Net (18) hook the top corners over the Net Holder Clips and secure with an M6x8mm Button Head Screw (16).
