Liberty Furniture 439-EP77 Assembly Instruction

ITEM # : 439 - EP77
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have
come loose inside the carton during shipment. Identify and count all parts and compare with the parts list below:
Component List
Descriptions
NO.
1 Top, Center & Bottom Panel
Side Frame Left
2
Side Frame Right
3
*
Assembly Tool
Not Included
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.
WARNING!
1. Don't attempt to repair or modify parts that are broken or defective.Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.
LIBERTY FURNITURE
ASSEMBLY INSTRUCTION

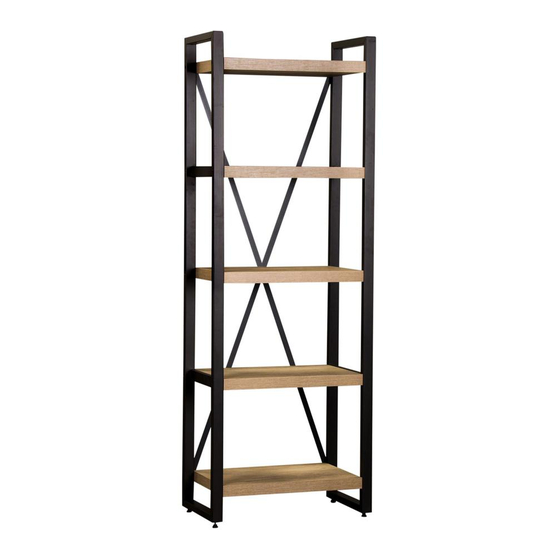

DESCRIPTION : TALL PIER UNIT
Qty.
NO.
5
A
B
C
D
1
E
1
4
Hardware List
Descriptions
JCBC Bolt M6 x 60mm
Allen Key M4
P/H Rattan Screw 8 X 5/8
Metal Plate
Adjustable
6.5' TALL PIER UNIT
Qty.
20
1
9
2
4
PAGE 1 OF 2
