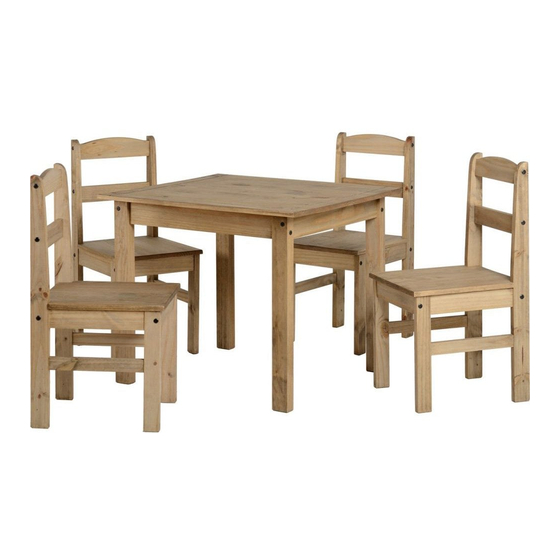

Dining set table/chair

Advertisement

Quick Links

SEC/SH/11/21/PJ1
55182
PANAMA DINING TABLE
ASSEMBLY INSTRUCTIONS
!
DO NOT
USE
IMPORTANT
PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY
After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped o ffimmediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
Page 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PANAMA 400-401-066 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seconique PANAMA 400-401-066

  • Page 1 SEC/SH/11/21/PJ1 55182 PANAMA DINING TABLE ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER FOR DOMESTIC USE ONLY CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason. •...
  • Page 2 SEC/SH/11/21/PJ1 TOOLS REQUIRED Please Note: The below parts have been number/colour coded to help identify them during assembly. to help identify them during assembly. PARTS LIST Part Number Part Code Carton Part Description Quantity S400-401-066-PJ1-01T Table Top Table Leg S400-401-066-PJ1-02T S400-401-066-PJ1-03T Table Leg (Red Marking) Long Frame Side...
  • Page 3 SEC/SH/11/21/PJ1 STEP 1 Ø7,0x80mm PARTS REQUIRED TABLE LEG TABLE LEG (RED) Ø7,0x60mm LONG FRAME SIDE HARDWARE REQUIRED Detail 1 GLUE (Blue Marking) Ø7,0x80mm TOOLS REQUIRED Detail 2 (Red Marking) Detail 1 Detail 2 STEP 2 Ø7,0x80mm PARTS REQUIRED TABLE LEG TABLE LEG (RED) Ø7,0x60mm LONG FRAME SIDE...
  • Page 4 SEC/SH/11/21/PJ1 STEP 3 PARTS REQUIRED Ø7,0x80mm SHORT FRAME SIDE Ø7,0x60mm (Red Marking) HARDWARE REQUIRED (Blue Marking) Detail 1 GLUE Detail 1 (Blue Marking) Ø7,0x60mm Detail 2 TOOLS REQUIRED (Red Marking) Detail 2 STEP 4 PARTS REQUIRED 1 - TABLE TOP For your future reference order number...
  • Page 5 SEC/SH/11/21/PJ1 55182 PANAMA DINING CHAIR ASSEMBLY INSTRUCTIONS DO NOT IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason. •...
  • Page 6 SEC/SH/11/21/PJ1 TOOLS REQUIRED PARTS LIST (PER CHAIR) Part Number Part Code Part Description Quantity Carton S400-401-066-PJ1-01C Right Chair Side Le Chair Side S400-401-066-PJ1-02C S400-401-066-PJ1-03C Seat Pad Top Back Rail S400-401-066-PJ1-04C Back Rail S400-401-066-PJ1-05C Seat Rail S400-401-066-PJ1-06C HARDWARE LIST GLUE Ø7,0x60mm (Black) 8,0 x 30mm Ø4,0 x 35CP PAGE 02...
  • Page 7 SEC/SH/11/21/PJ1 STEP 1 PARTS REQUIRED LEFT CHAIR SIDE TOP BACK RAIL BACK RAIL SEAT RAIL Detail 1 HARDWARE REQUIRED GLUE Ø8x30mm Detail 2 Ø7,0x60mm Detail 1 TOOLS REQUIRED TOOLS REQUIRED Detail 2 STEP 2 Detail 1 PARTS REQUIRED RIGHT CHAIR SIDE HARDWARE REQUIRED GLUE Ø8x30mm...
  • Page 8 SEC/SH/11/21/PJ1 STEP 3 PARTS REQUIRED Detail 2 HARDWARE REQUIRED Ø7,0x60mm TOOLS REQUIRED Detail 2 STEP 4 PARTS REQUIRED SEAT PAD FOR YOUR FUTURE REFERENCE ORDER NUMBER SHOULD BE HERE Detail 3 HARDWARE REQUIRED Ø4,0 x 35CP TOOLS REQUIRED CENTRALIZE Detail 3 PAGE 04...
