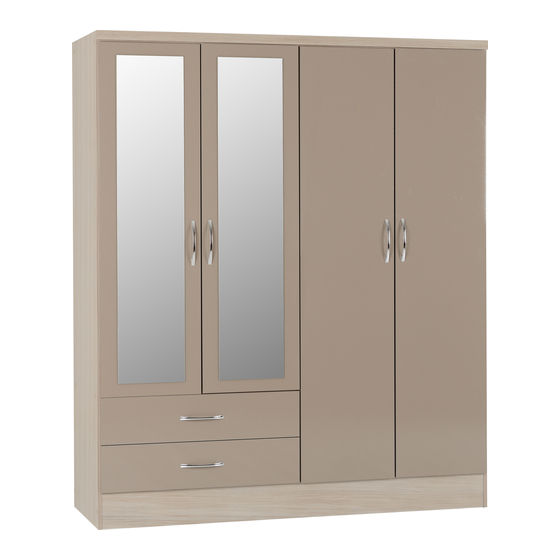

NEVADA 4 DOOR 2 DRAWER WARDROBE
ASSEMBLY INSTRUCTIONS
IMPORTANT
FOR DOMESTIC USE ONLY
PLEASE READ BEFORE YOU CONTINUE FURTHER
CARE AND MAINTENANCE
PAGE 1
