IQAir Atem X User Instructions

Room air purifier
Hide thumbs Also See for Atem X:
Table of Contents

Advertisement

Quick Links

Download this manual
User Instructions
IQAir Atem X User Instructions EN v00.19c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atem X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IQAir Atem X

Summary of Contents for IQAir Atem X

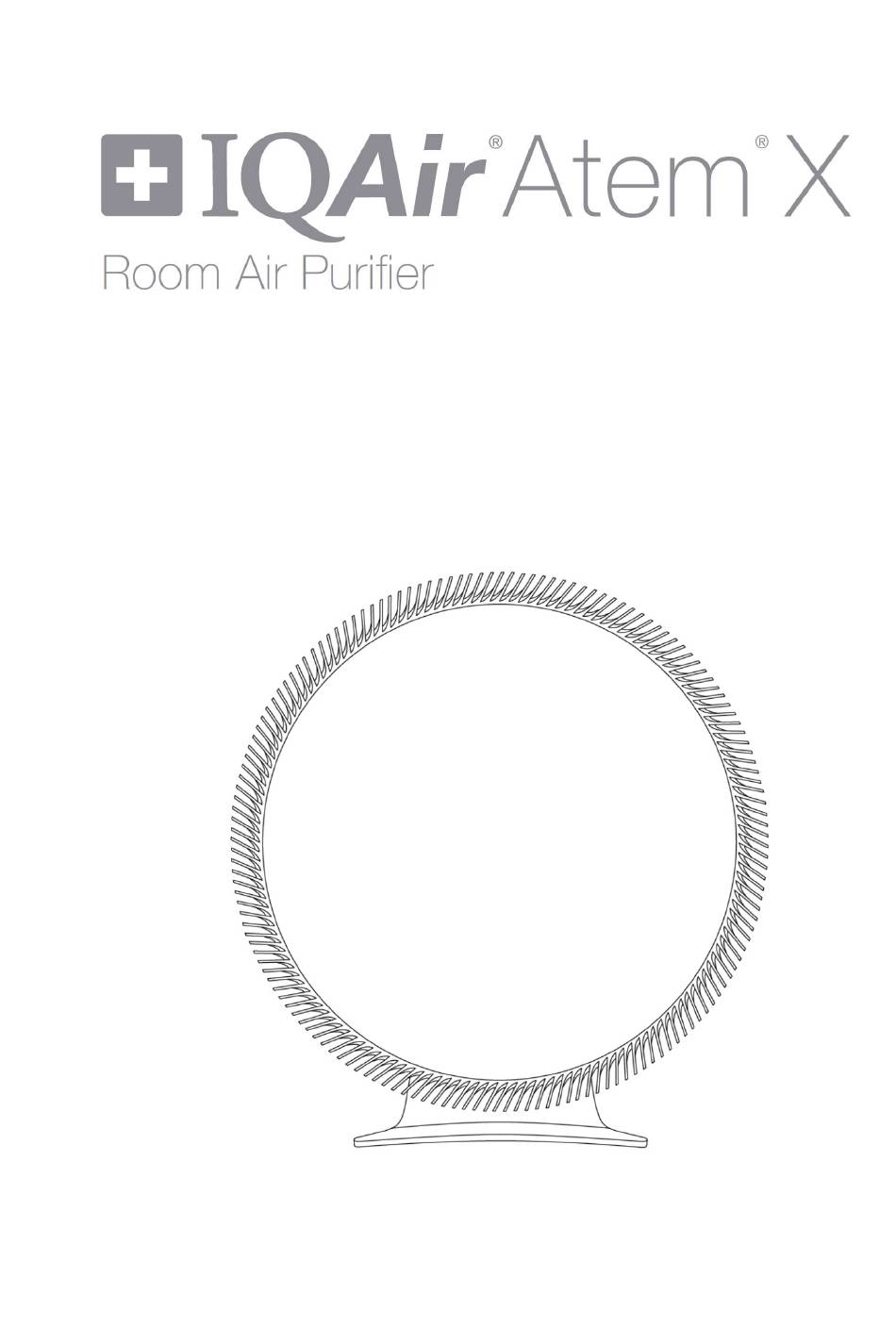

  • Page 1 User Instructions IQAir Atem X User Instructions EN v00.19c...
  • Page 2 If the supply water. cord is damaged, you must have  Do not allow any kind of liquid to it replaced by IQAir, a service spill on, enter or come into center authorized by IQAir, or contact...
  • Page 3  Do not use near furnaces, printed copy download from fireplaces, stoves or other high www.iqair.com and print or temperature heat sources. request at local dealer. For more information also refer www.iqair.com...

  • Page 4: Table Of Contents

    Contents Introducing Atem X ..........................Component Overview ........................Setup & Positioning ..........................Choosing a Suitable Location ....................... Installation ............................. Using Your Air Purifier ........................Install the App ..........................The control panel .......................... Air cleaning performance - Manual mode ................... Air cleaning performance - Smart Mode ..................

  • Page 5: Introducing Atem X

    Introducing Atem X The IQAir Atem X is a room air purifier for people who are serious about the air they breathe and the esthetics of their environments. Operation is via a control panel on the purifier or with the IQAir App. The purifier is equipped with built-in air quality sensors.

  • Page 6: Setup & Positioning

    Arrange the supply cord where it will not be tripped over, away from traffic areas. Excess cord can be stowed in the cord channel. Wall mounting The purifier can be mounted onto walls with the optional Atem X wall- mounting kit. Refer to the mounting instructions supplied with the wall- mounting kit.

  • Page 7: Using Your Air Purifier

    Control Atem X from your smart phone with the IQAir App or the purifier’s touch sensitive control panel. The IQAir App is much more than a remote control - It gives you access to additional features for your Atem X and, more importantly, the App opens a world of air quality information within IQAir’s AirVisual community.

  • Page 8: The Control Panel

    Wi-Fi is active, but not connected White: The purifier is connected to the IQAir IoT Cloud and can be controlled remotely When in standby, the purifier can be turned ON from the App. Touch and hold for 10 seconds to turn the purifier OFF.

  • Page 9: Air Cleaning Performance - Manual Mode

    App. Smart Mode is also deactivated by touching anywhere on the air cleaning performance control. In Smart Mode, the Atem X automatically increases air cleaning performance when pollution levels rise and reduces power when the air is clean.

  • Page 10: Filter Replacement

    Filter replacement Atem X will let you know, in advance, when the filters need to be replaced. A yellow warning symbol on the control panel tells you that the filter set needs to be replaced soon, make sure that you have a replacement filter set.
  • Page 11 Step 2 Rotate Rotate the purifier body clockwise until it reaches the end stop. Rotating the purifier gives you easy access to each of the filters - you do not have to stoop down to change filters. Step 3 Remove the inlet grille Consider that the Impaktor, which is latched on the inside of the inlet grill could have trapped a lot of dust, hair and lint.
  • Page 12 Step 4 Remove the used filter Press the latch towards the filter to unlock and remove the filter. Do not try to clean and/or reuse the filters. Filters may be disposed with household waste. Step 5 Insert the replacement filter Make sure that the filter’s orientation tab is facing towards the front of the purifier.
  • Page 13 Step 6 Remove and clean the Impaktor Pull the center tab. Once removed, the Impaktor can be thoroughly cleaned with a soft brush or a vacuum cleaner fitted with a brush attachment. If required, the Impaktor can be cleaned further by rinsing under running water at a wahbasin and then letting it dry.

  • Page 14: Technical Specifications

    Technical Specifications Model Atem X Room Air Purifier Input voltage 220-240-Volt version 230 V~ 50 Hz (Refer to the type label on your device) 100-120-Volt version 120 V~ 60 Hz Power rating 110 W Sensors Particulate matter (PM2.5), Temperature, Humidity...

  • Page 15: Additional Information

    Additional Information Electromagnetic Compatibility (EMC) and radiation exposure For USA - FCC Statement Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 16: Environment

    Filters may be disposed of with household waste. Do not burn used filters as fuel in a fireplace or for similar purpose. Product Storage When not in use, store your Atem X in a clean, dry place. Use the original packaging for optimal storage. Cleaning Unplug the power cord before cleaning.
