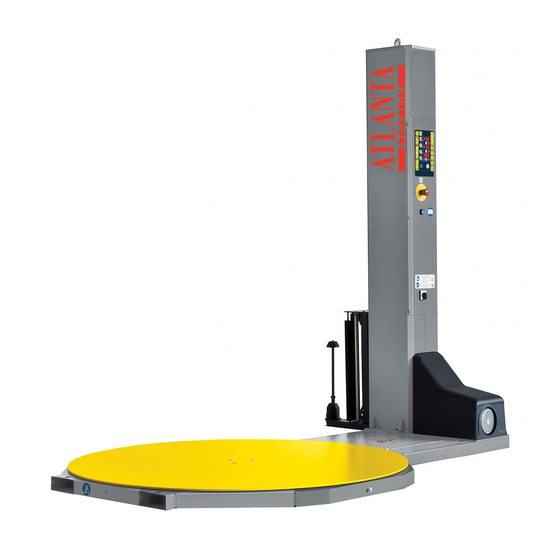

- Page 1 Turntable - Mast SYNTHESI SYNTHEX MYTHO Operator Panel Translation of the original Atlanta Stretch S.p.A. Via Torrianese, 58 47824 - Poggio Torriana - RN ITALY Tel. 0541 627145 www.atlantastretch.com info@atlantastretch.com Rev.0 13/01/2020...
- Page 2 Operator Panel | TURNTABLE - MAST Rev.0 13/01/2020...
- Page 3 SYNTHESI PANEL ................2 1.1.3 MYTHO PANEL ................3 1.1.4 CONTROLS DESCRIPTION ............4 1.1.5 EVA / SYNTHESY / MYTHO OPERATION ........5 ............8 1.2.1 SYNTHEX - MYTHO PANEL ............8 1.2.2 SYNTHEX AND MYTHO-TOUCH OPERATION ......11 CONTROL PANEL FUNCTIONS............. 14 ADDITIONAL MANUAL CONTROLS .............
- Page 4 Operator Panel | TURNTABLE - MAST Rev.0 13/01/2020...
- Page 5 1.1.1 Picture 1 Atlanta Stretch S.p.A.
- Page 6 Operator Panel | TURNTABLE - MAST 1.1.2 Picture 2 Rev.0 13/01/2020...
- Page 7 1.1.3 Picture 3 Atlanta Stretch S.p.A.
- Page 8 Operator Panel | TURNTABLE - MAST 1.1.4 Programmed cycle START button. Carriage up manual retention button. If pressed together with (E), the presser automatically rises to the up cycle start position. Decrease values button. Increase values button. Alarm reset (fast pressure – less than 2 second); Saving parameters (press until the LED flashes - more than 3 seconds);...
- Page 9 RESET to enable / disable the block. When the active function the right LED of the display (V) lights up and stays lit. The disabled/enabled status remains even after the machine has been turned off and on again. Atlanta Stretch S.p.A.
- Page 10 Operator Panel | TURNTABLE - MAST DISPLAY (V) Picture 4 - DISPLAY (V) 1) indicates the decimal point (values from 0.00 to 9.99) 2) indicates the decimal point (values from 0.0 to 9.9) 3) indicates the block status of keyboard ON: keyboard blocked (V+ and V- blocked) OFF: keyboard released (V+ e V- sbloccati) Signals...
- Page 11 Pressing the button (G), and keeping it pressed, press the button (E), the carriage falls to the low position and then stops. Press the button (B) and, holding it down, press the button (E). The presser automatically ascends to the start cycle top position. Atlanta Stretch S.p.A.
- Page 12 Operator Panel | TURNTABLE - MAST 1.2.1 Picture 5 Rev.0 13/01/2020...
- Page 13 The right point indicates the ascent of the film carriage, the left point indicates the rotation of the platform or the robot path; In the robots, the left point flashing indicates that the battery is in reserve. Atlanta Stretch S.p.A.
- Page 14 Operator Panel | TURNTABLE - MAST Lift pressure roller, the pressure roller lifts automatically to its top position at start of cycle. Press and hold to lower the pressure roller manually. “Copy” icon, copies the values of the functions of the selected program.
- Page 15 PASTE (T) icon. NB: The virgin target programme must always be released (F00=1). Automatic opening of the program used previously. When the machine is turned on again, the parameters from the last programme selected and started will be lloaded. Atlanta Stretch S.p.A.
- Page 16 Operator Panel | TURNTABLE - MAST Disable/enable keypad: prevents modification of parameters by blocking the icons V+ e V-; press, in order, the icons SAVE (M), F+, F-, DISABLE KEYPAD (W). When the function is enabled, the right LED on the display V turns on and remains steady.
-
Page 17: Screen Calibration
Press icon (I) to lower the carriage to its bottom position and then stop Press icon (q) to lift the pressure roller to its top position and then stop (*) The machine must not be in cycle; press the RESET icon (E) to exit. Atlanta Stretch S.p.A. - Page 18 Operator Panel | TURNTABLE - MAST Synthesi Mytho This parameter is used to prevent cycle parameters from being overwritten: 0 block, 1 release Set cycle: 01 up and down 02 up or down; 03 manual; 04 fast cycle up and down and 05 layers Table rotation speed: selectable from 05 to 100 Carriage up speed: selectable from 05 to 100 Carriage down speed: selectable from 05 to 100...
- Page 19 OPT 0 = excluded, 1 included with one blade stroke, 2 included with two blade strokes cutting tension) Film exit time after cutting: 0 ÷ 100 tenths of a second Film extraction time with light tension at the beginning of the cycle Atlanta Stretch S.p.A.
- Page 20 Operator Panel | TURNTABLE - MAST Synthesi Mytho Upward cycle in steps of the roll holder carriage; 0 = disabled Number of step revs (F30) Film tension on the product during the step cycle rotations Only PS (MPS2) carriage: lengthening of the film during the step cycle rotations Number of initial creasing rotations at the base of the product (after F05 rotations with film open);...
- Page 21 1 or disabled 0) Number of wraps at the restart of the layers cycle (optional, F01 = 5) Comfort height included 1, excluded 0 (Opt: advanced creasing) further ascent of the carriage after the high rotations Atlanta Stretch S.p.A.
- Page 22 Operator Panel | TURNTABLE - MAST The (F) display is used for showing the manual controls. To execute the manual command, use the buttons F+ and F- to select the desired command and press the button indicated in the list below: Button (B) Clockwise arm rotation Button (G)
- Page 23 During winding, buttons (B) (carriage going up) or (G) (carriage going down) can be pressed to stop the carriage, add extra wraps wherever required, and start it again. Picture 8 Atlanta Stretch S.p.A.
- Page 24 Operator Panel | TURNTABLE - MAST See Picture 8 - pag. 19 DANGER The cycle “up only or down only” is required for maximum height of the product to be wrapped at 1500 mm. Beyond this height, you must use appropriate personal protective equipment based on the risk of falling and work height exceeding 1500 mm.
- Page 25 The carriage ascends to the height set in F30, performs a number of rotations set in F31, and repeats until the top of the product is reached. During the reinforcement rotations, the tension and lengthening of the film can be adjusted using the parameters set in F32 and F33. Atlanta Stretch S.p.A.
- Page 26 Operator Panel | TURNTABLE - MAST Transpallet photocell - The safety photocell is activated. - Remove the obstacle / check the mirror on the interrupted safety photocell. - The photocell has no obstacles but the signal does not get to the card. - Make sure the photocell is operating and the LED changes status when an obstacle is inserted.
- Page 27 - Invert the rotation direction or the limit switches opened during carriage direction. are inverted. ascent High limit switch error: it - The carriage moves in the opposite - Invert the rotation direction or the limit switches opened during carriage direction. are inverted. descent Atlanta Stretch S.p.A.
- Page 28 Operator Panel | TURNTABLE - MAST Emergency intervention - Emergency button pressed. - Unblock the button and restore the power circuit. - Carriage door open. - Close the door and restore the power circuit. If FE or FM carriage, check the bridge on the connector.
- Page 29 (Tables) Alarm, exit occupied - The photocells are engaged. - Check the status of the photocells. while unloading the pallet from the rotating roller unit. The two photocells on the unloading line are both engaged. (Tables) Atlanta Stretch S.p.A.
- Page 30 Operator Panel | TURNTABLE - MAST Alarm, maximum timeout - Timeout loading pallet. - Check loading of the pallet. during pallet loading (Tables) Alarm, maximum timeout - Timeout unloading pallet. - Check loading of the pallet. during pallet unloading (Tables) Alarm maximum timeout - Timeout transporting pallet.
- Page 31 - Press the BLUE REFRESH key (2). - Reset the alarm by pressing the RESET (E) key located on the control panel. - Press the START (A) key for 3 seconds. Picture 9 Atlanta Stretch S.p.A.
- Page 32 Atlanta Stretch S.p.A. Via Torrianese, 58 47824 - Poggio Torriana - RN - ITALY Tel. 0541 627145 www.atlantastretch.com info@atlantastretch.com...
