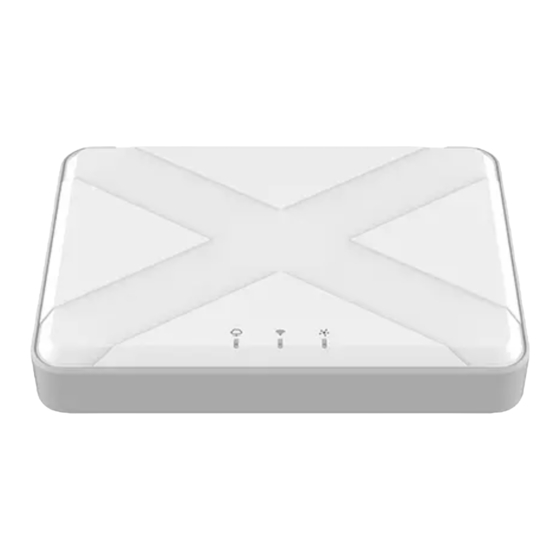

- Page 1 SEG-X5 ZigBee Gateway Quick Start Guide...
- Page 2 Safety Handling WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the gateway and other property. Read all the safety notices below before using the gateway. • Avoid high humidity or extreme temperatures. •...
- Page 3 Technical Specifications Connectivity • 10/100M bps Ethernet RJ45 Port • Auto MDIX ZigBee • 2.4GHz IEEE 802.15.4 ZigBee Profile • ZigBee 3.0 • Operating frequency: 2.4 GHz RF Characteristics • Internal PCB Antenna • Range outdoor: 100m (open area) Physical Specifications Operating Voltage •...
- Page 4 Welcome The SEG-X5 Smart Gateway acts as a central platform for your smart home system. It allows you to add ZigBee devices into the system. Automatic control, schedule, scene, remote monitoring and control for ZigBee devices can enrich your IoT experience. This guide will provide you with an overview of the product and help you get through the initial setup.
- Page 5 Get to know your device ① Indicator Cloud connection Sub-devices Wi-Fi (Optional) Cloud connection indicator The status gives the following information: LED Color Status What it means Green Always-on Connected to the cloud Successfully Flashes slowly Failed to connect to the cloud Orange Always-on In configuration mode...
- Page 6 System-initiated After you reset the gateway or when it is powered on, the Cloud connection indicator and the Wi-Fi / Sub-devices indicator will be always-on at the same time. Firmware upgrade When the gateway firmware is upgrading, the Cloud connection indicator and the Wi-Fi / Sub-devices indicator will flash slowly at the same time.
- Page 7 Reset Button • Reset: Press and hold the reset button for 10 seconds until the buzzer beeps to restore the gateway to default factory setting. ③ Buzzer The gateway has a built-in buzzer, the status gives the following information: Status What it means One long beep Rest the gateway...
- Page 8 3.2 Add sub-devices Please refer to the manual of your sub-device for the adding operation, then enable permit join on gateway. When the sub- device successfully joins the gateway, the buzzer will beep twice evenly.
