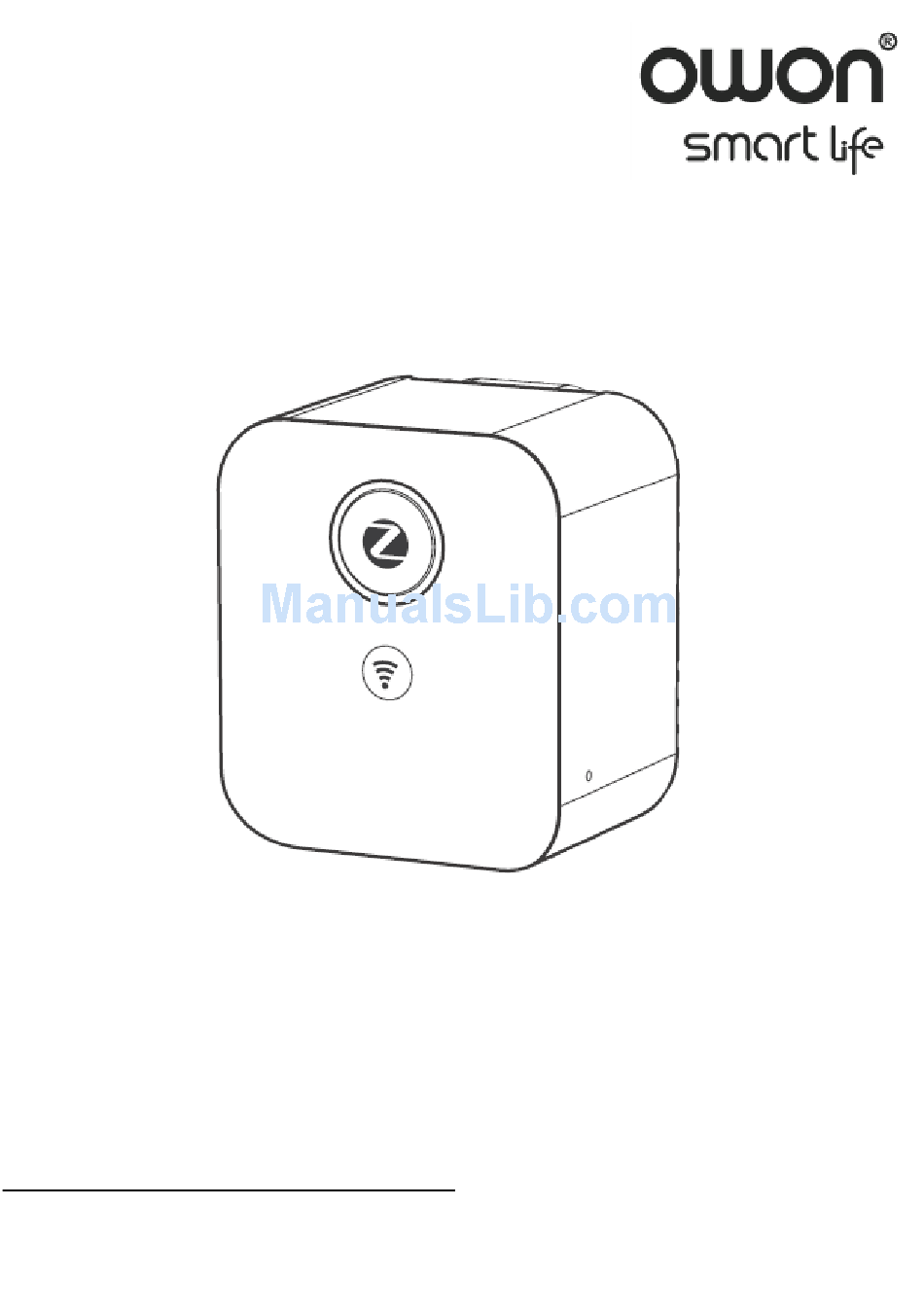

- Page 1 SEG-X3 Smart Gateway Quick Start Guide...
-
Page 2: Get To Know Your Device
1. Welcome The SEG-X3 Smart Gateway acts as a central platform of your smart home system. It allows you to add ZigBee devices into the system and while at the same time could connect to the Internet so as to be controlled by the SmartOWON mobile app. -
Page 3: Buttons Introduction
Versions available in these sockets: 2.2. Buttons Introduction “Z” button Use the “Z” button to do the following: Permit joining Reset ZigBee network Wi-Fi button Use the Wi-Fi button to do the following: Reset Wi-Fi network Switch between cloud mode and AP mode ... -
Page 4: Led Indicator
The SEG-X3 is in permit joining mode Blue LED solid which means that it allows other ZigBee devices to join its network. The SEG-X3 is in cloud mode which means Blue LED flashing that it has been connected to the cloud server. -
Page 5: Get Started
A smartphone (Android phone or iPhone) Then follow the steps below: Step 1: Insert the SEG-X3 Smart Gateway into a general power outlet (GPO). Turn it on, and wait for the LED light to turn purple flashing (means gateway is in AP mode) - Page 6 Tips: to see operation details, please visit http://.owon.me/docs/user_guides.html to see the system user guides. Step 4: Register an account Follow the mobile app to register an account.
- Page 7 Step 5: Add devices to the smart gateway Press “Z” button for two seconds until the LED indicator turns blue solid. Then the SEG-X3 Smart Gateway will allow other devices to join its network so that you could use the mobile app to control the devices.
- Page 8 A4: Use a pin key tool to press and hold the reset button for ten seconds until the LED indicator flashes purple five times rapidly to return the gateway to default factory setting. Q5. How to add more smart home devices into the SEG-X3 gateway?
- Page 9 Wi-Fi router that could connect to the Internet. The operation steps are as below: Step 1: Connect your smartphone to the Wi-Fi hotspot of the SEG-X3 Smart Gateway which is started by “ZB” and end by the last six digits of the SEG-X3 gateway MAC address.
-
Page 10: Technical Specifications
5. Technical Specifications 5.1. Hardware specification ARM Cortex-M3 Flash ROM 256k Data Interface Micro USB port Data Storage Capacity TF Card: 8G Wireless Connectivity ZigBee, Wi-Fi Operating frequency:2.4 GHz RF Characteristics Internal PCB Antenna Range outdoor/indoor: 100m/30m AC 100 ~ 240 V, 50 ~ 60 Hz Power Supply Rated power consumption: 1W Dimensions... -
Page 11: Software Specification
5.2. Software specification IP Addressing: DHCP, Static IP WAN Connectivity Data Porting: TCP/IP, TCP, UDP Security Modes: WEP, WPA/WPA2 ZigBee Home Automation Profile Data format: JSON Downlink commands Gateway Operation Command HAN Control Command Data format: JSON Uplink Messages Home Area Network Information Messages Device Data Authentication... - Page 12 6. Appendix: Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the device or other property. Read all the safety notices below before using the device. Avoid high humidity or extreme temperatures. ...
