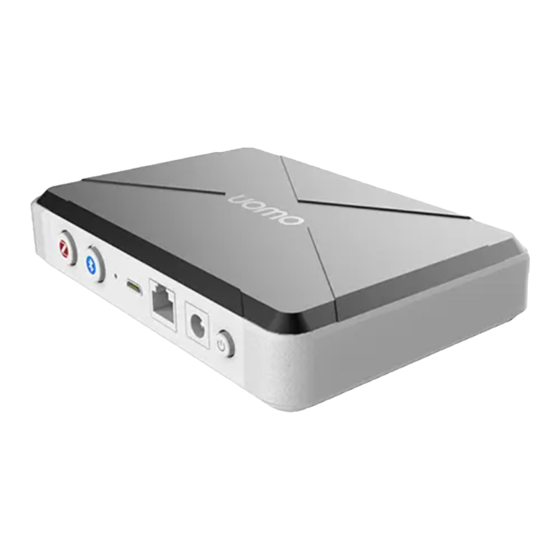

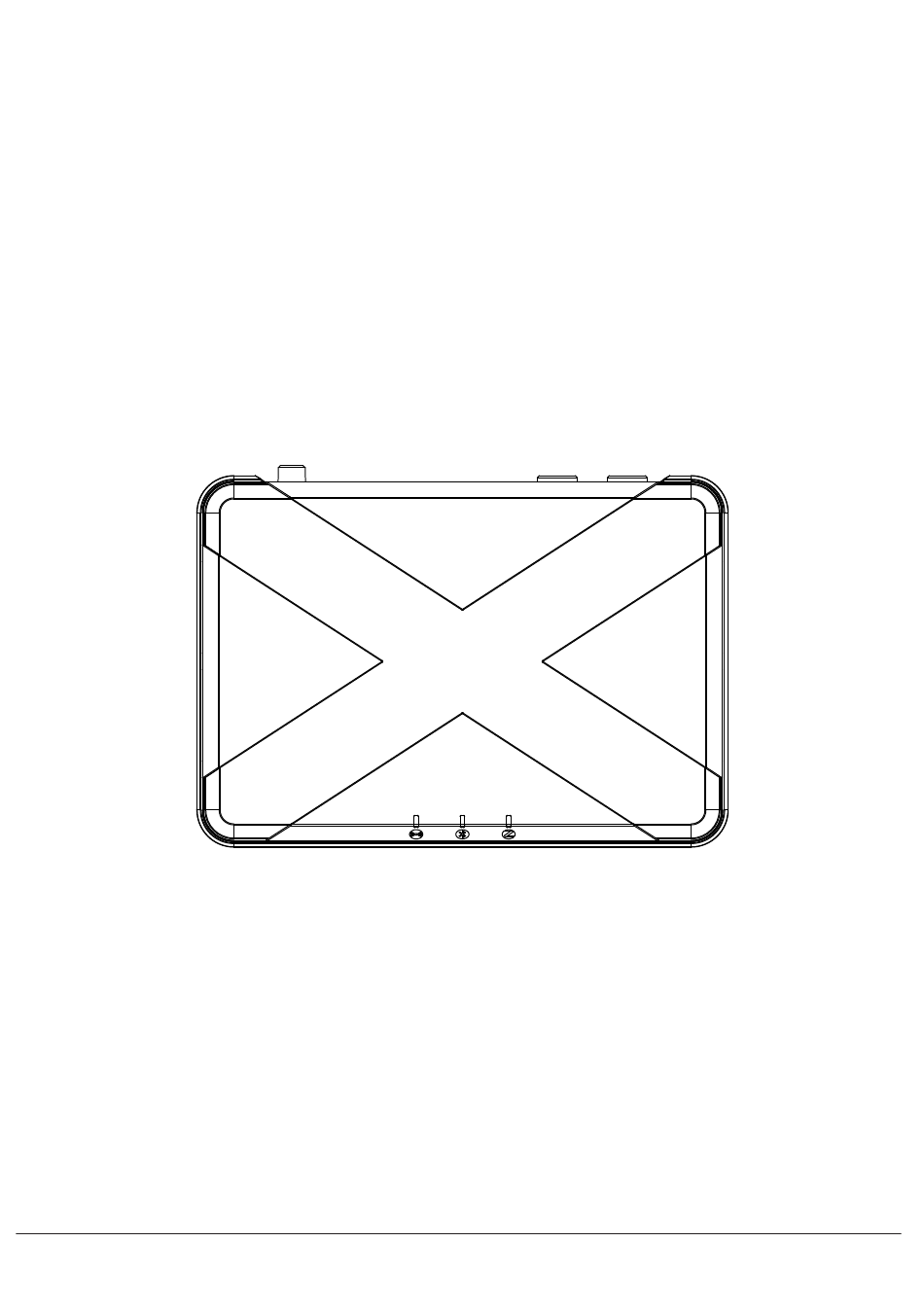

- Page 1 SEG-X1 ZigBee/Ethernet Gateway Quick Start Guide...
- Page 2 Introduction The SEG-X1 Smart Gateway acts as a central platform for your smart home system. It allows you to add ZigBee devices into the system and to be controlled by the mobile app, while at the same time provide more stable connection through Ethernet.
- Page 3 ZigBee LED indicator The ZigBee LED status gives the following information of the gateway : LED Status What it means Steady light Permit Joining. Flash twice New device added successfully 1. Reset Button • Restart gateway. Press the reset button to restart the gateway. •...
- Page 4 the ZigBee LED turns solid. Press the "Z" button again to exit. • Reset ZigBee network. Press both the “Z” button and the reset button together to reset the ZigBee network (ZigBee LED indicator flashes five times, all the ZigBee devices' information stored in the gateway will be removed).
- Page 5 bar icon ( ) at the top left corner, and then select “Add New Devices”. The gateway will allow ZigBee devices to join its ZigBee network within 60 seconds. You can press the "Z" button again once or tap "Cancel" in the mobile app to exit.
- Page 6 Technical Specifications Hardware Specifications • MIPS, 200MHz Flash ROM • 2M Data Interface • Micro USB port SPI Flash • 16MB • 100M bps Ethernet • Auto MDIX • Operating frequency: 2.4 GHz RF Characteristics • Internal PCB Antenna • Range outdoor/indoor: 100m/30m •...
- Page 7 Software Specifications • IP Addressing: DHCP, Static IP WAN Connectivity • Data Porting: TCP/IP, TCP, UDP • Security Modes: SSL ZigBee • Home Automation Profile • Data format: JSON Downlink commands • Gateway Operation Command • HAN Control Command • Data format: JSON Uplink Messages •...
- Page 8 Safety Handling WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the gateway and other property. Read all the safety notices below before using the gateway. • Avoid high humidity or extreme temperatures. •...
