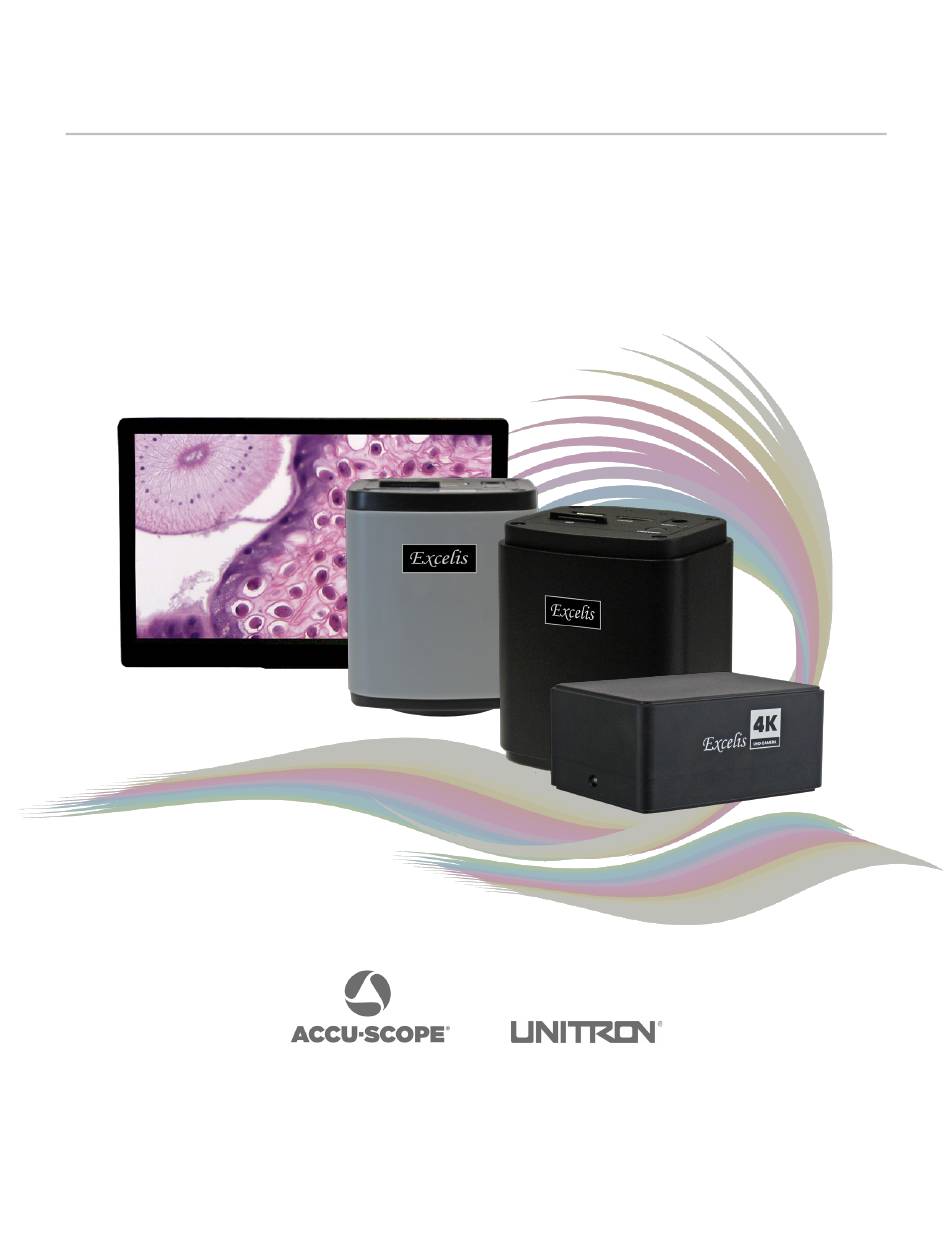

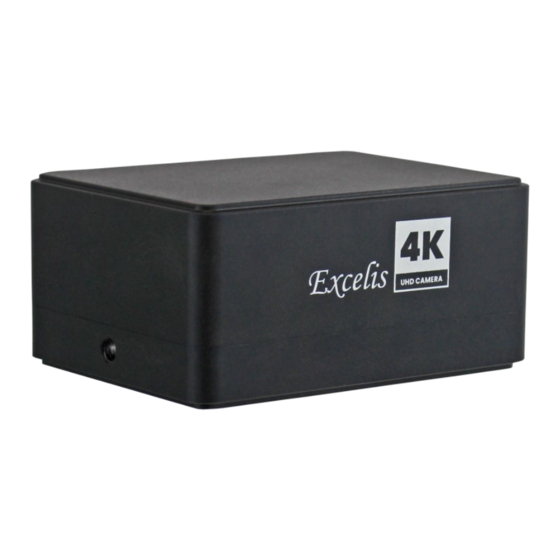

- Page 1 Excelis HDMI QUICK START GUIDE 73 Mall Drive, Commack, NY 11725 631-864-1000 (P) • 631-543-8900 info@accu-scope.com • www.accu-scope.com...
- Page 2 Excelis HDMI QUICK START Congratulations on the purchase of your new Excelis HDMI microscopy camera! This guide will help you get up and running fast so you may begin using your camera right away. What’s in the Box — AU-300 & 600 •...
-
Page 3: Installation
Excelis HDMI QUICK START Using Excelis HDMI With a Monitor ONLY The Excelis HDMI’s on-board software can be used with a PC, Mac or stand alone HDMI monitor. INSTALLATION 1) INSTALL THE CAMERA: Install the c-mount adapter onto your Excelis HDMI camera, then mount the camera onto your microscope’s photo port. - Page 4 Excelis HDMI QUICK START Congratulations on the purchase of your new Excelis HDMI microscopy camera! This guide will help you get up and running fast so you may begin using your camera right away. What’s in the Box — 4K •...
- Page 5 Excelis HDMI QUICK START Using Excelis HDMI With a Monitor ONLY The Excelis HDMI’s on-board software can be used with a PC, Mac or stand alone HDMI monitor. INSTALLATION 1) INSTALL THE CAMERA: Install the c-mount adapter onto your Excelis HDMI camera, then mount the camera onto your microscope’s photo port.
- Page 6 Excelis HDMI QUICK START VIEWING & ADJUSTING AN IMAGE 1) CAMERA MENU & SETTINGS: With your camera mouse navigate to the TOP LEFT area of your monitor – as you hover there, a CAMERA ICON and SETTINGS ICON will appear on the display. Camera Settings 2) ADJUSTING DISPLAY SETTINGS FOR YOUR LIVE IMAGE: with your...
-
Page 7: Capturing An Image
Excelis HDMI QUICK START CAPTURING AN IMAGE CAPTURE AN IMAGE: to capture an image, CLICK the CAMERA ICON – the image will be saved to the SD card in JPEG format (.jpg). The camera will revert back to live view. Camera Settings IMAGE TOOLS... - Page 8 Excelis HDMI QUICK START IMAGE TOOLS (continued) Indicates this feature available only on Excelis 4K and AU-600-HD cameras with SN# ending with “–M” or “–MC” (i.e., 1707001-M). CALIBRATION: Allows measurements to be taken. HORIZONTAL FLIP: Flips a saved image on the SD card on its horizontal axis. VERTICAL FLIP: Flips a saved image on the SD card on its vertical axis.
- Page 9 Excelis HDMI QUICK START IMAGE TOOLS (continued) Indicates this feature available only on Excelis 4K and AU-600-HD cameras purchased after July 1, 2017 and with SN# ending with “–M” or “–MC” (i.e., 1707001-M). CALIBRATION ICON To perform a measurement, follow these steps: ④...
- Page 10 Excelis HDMI QUICK START IMAGE TOOLS (continued) Indicates this feature available only on Excelis 4K and AU-600-HD cameras purchased after July 1, 2017 and with SN# ending with “–M” or “–MC” (i.e., 1707001-M). SCALE DISPLAY & SELECTION FEATURE The scale bar can be displayed on the screen which corresponds to the length set during the measurement calibrations.
- Page 11 Excelis HDMI QUICK START IMAGE TOOLS (continued) Indicates this feature available only on Excelis 4K and AU-600-HD cameras purchased after July 1, 2017 and with SN# ending with “–M” or “–MC” (i.e., 1707001-M). MASK ICON The mask feature allows the user to highlight a area of an image to demonstrate, operate or explain. This feature temporarily blacks out nonselected parts of the image.
- Page 12 Excelis HDMI QUICK START IMAGE TOOLS (continued) COMPARISON BROWSER ICONS The comparison browser allows you to compare saved images on the SD card with the live view. HOME: brings you back to the previous screen. BACK: brings you to the previous page of saved images (if there is one). FORWARD: brings you to the next page of saved images (if there one).
- Page 13 Excelis HDMI QUICK START IMAGE TOOLS (continued) BROWSER ICONS The browser allows you to view, select or delete saved images and video on the SD card. HOME: brings you back to the previous screen. BACK: brings you to the previous page of saved images or video (if there is one). FORWARD: brings you to the next page of saved image (if there one).
- Page 14 For More Image Control For more image control, analysis and annotation of images, use CaptaVision+ imaging software that came with your camera. You can download the latest version of CaptaVision+ from https://accu-scope.com/support/software- updates. NOTE: CaptaVision+ imaging software is compatible with Windows 7, 8, and 10 (32 or 64 bit), and Mac OS 10.4...
-
Page 15: Quick Start
All items returned for warranty repair must be sent freight prepaid and insured to ACCU-SCOPE INC., or UNITRON Ltd., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the Continental United States of America.
