VITACON C6 Assembly Instructions

Contents:
1. VitaScan LT Bladder Scanner Probe (refer to the Quick Start that accompanied the Scanner Probe for instructions on how to scan)
2.

Medical Grade Tablet

3.

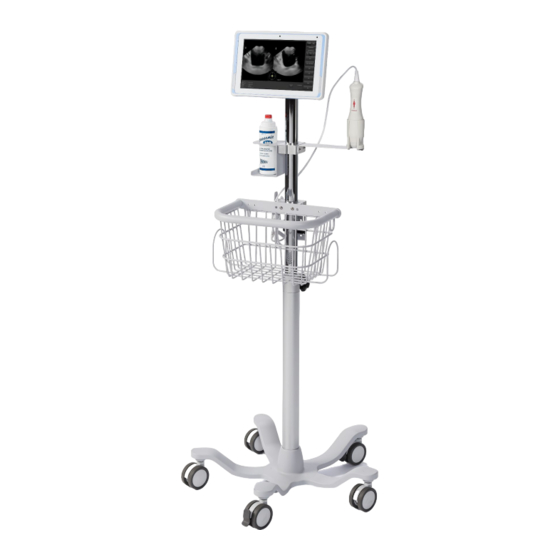

Rolling Medical Cart with Probe Holder, Cord Cleat and Basket

1

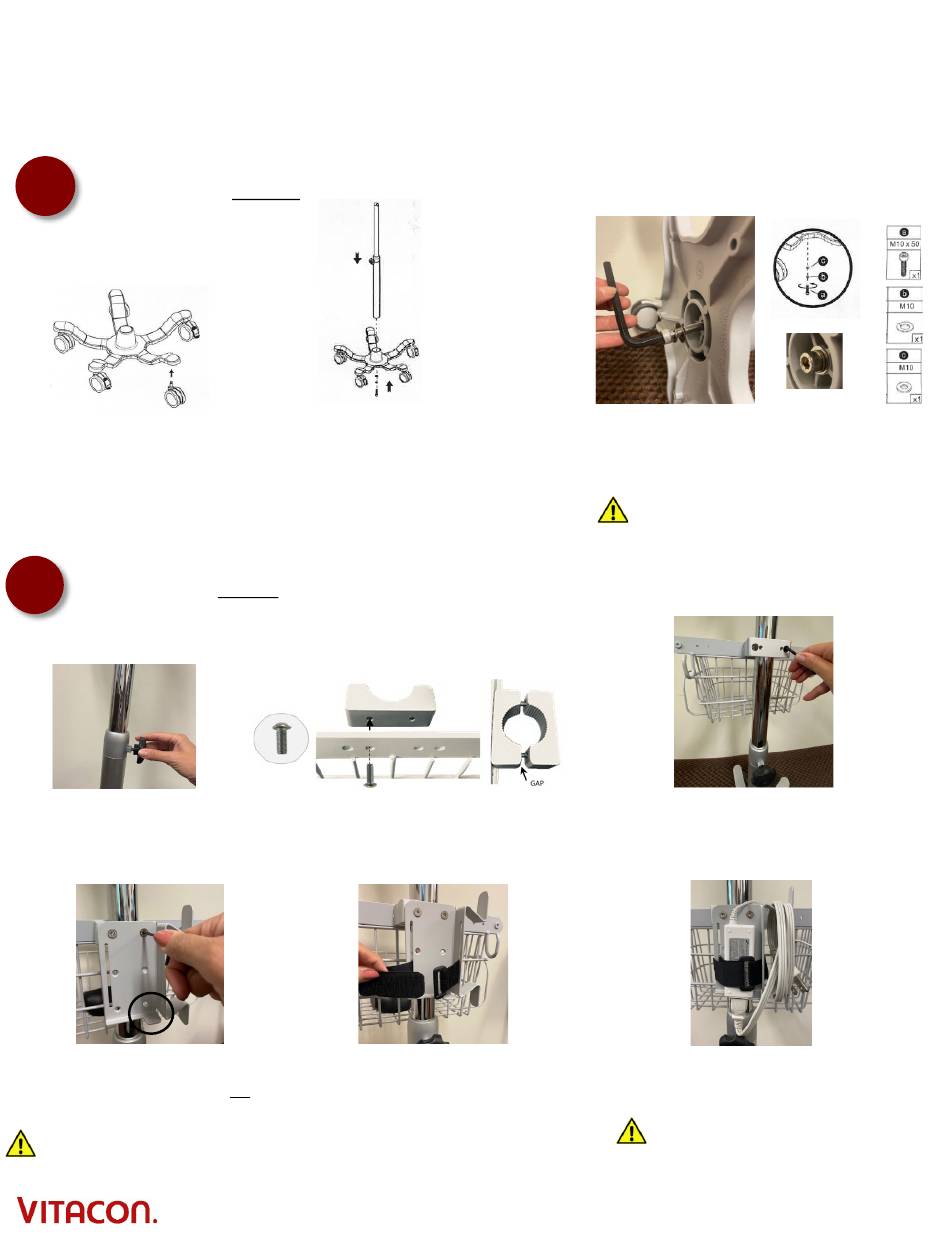

ASSEMBLE THE LOWER HALF OF THE CART

1.a Install the casters onto the base.
2

ASSEMBLE THE UPPER HALF OF THE CART

2.a Extend the top post and tighten
the Adjustment Knob to hold it in
place.
2.d Attach the Cord Cleat to the back of the
Basket's Mounting Bracket using the top
two holes.
Install with the "lip" at the bottom
(as shown).
C6 ASSEMBLY INSTRUCTIONS
1.b Insert the bottom post into Base.
2.b Attach the Basket's Mounting Bracket to the
Basket. Loosen the Bracket leaving enough gap to
slide the Bracket onto the Upper Post.
2.e Insert the Velcro strap with the
fuzzy side on the outside.
(800) 757-8450 Option 2  support@vitacon.us
1.c Lay assembly on its side to access the base bottom.
Grip the post to prevent rotation. Secure the post to the
base using the Hex Wrench. Return stand to upright
position.
It is important that you fully secure the bolt using
the Hex Wrench so that it is flush. Do not hand
tighten.
2.c Slide the Basket onto the upper post opposite the
Adjustment Knob. Position the Basket approx. midway
down the post and tighten the bracket evenly.
2.f Attach the Tablet's Power Cord to the Cord Cleat
and organize the cord.
Install with the transformer resting on the
"lip". Secure the Velcro tightly.
Rev 20210928
