VITACON C6 Assembly Instructions

Contents:
1. VitaScan LT Bladder Scanner Probe - Refer to the Quick Start that accompanied the Scanner
Probe for instructions on how to scan.
2.

Medical Grade Tablet

3.

VitaScan LT Rolling Medical Cart with Probe Holder and Basket

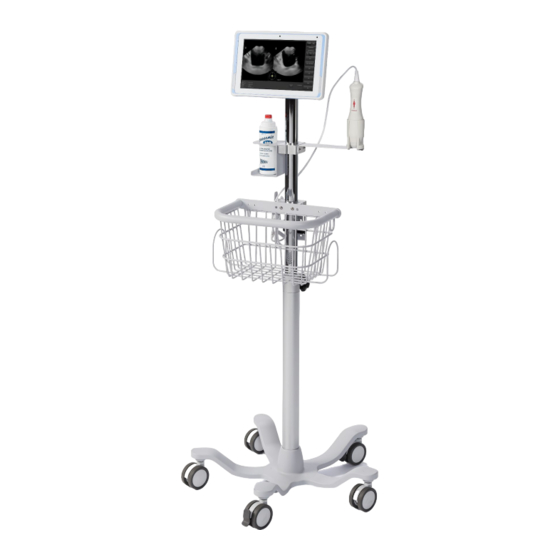

Once fully assembled and adjusted your cart should look like Fig. 1

ASSEMBLE THE LOWER HALF OF THE CART

1
Install the casters onto the base.
Install the Post onto the Base
Insert the Roll Stand Post (bottom) into Base.
Lay assembly on its side for access to bottom base and connect
the two using the supplied hardware as shown.
Return stand to upright position.

ASSEMBLE THE UPPER HALF OF THE CART

2
Extend the top post and tighten the adjustment knob to hold it in place.
Attach mounting bracket to basket. Using the supplied wrench, securely attach the Basket's Mounting Bracket to the back of the
Basket. Loosen the Basket's Mounting Bracket leaving enough gap to slide the Bracket onto the Upper Post.
Install the Basket onto the
Slide the Basket onto the upper post from the top down. Position Basket about midway down the post and tighten the screws.
Adjust for ideal positioning once fully assembled.
Install the Probe Holder onto the
Slide the Probe Holder onto the upper post from the top down. Position a few inches from the top and tighten. Adjust for ideal
positioning once fully assembled.

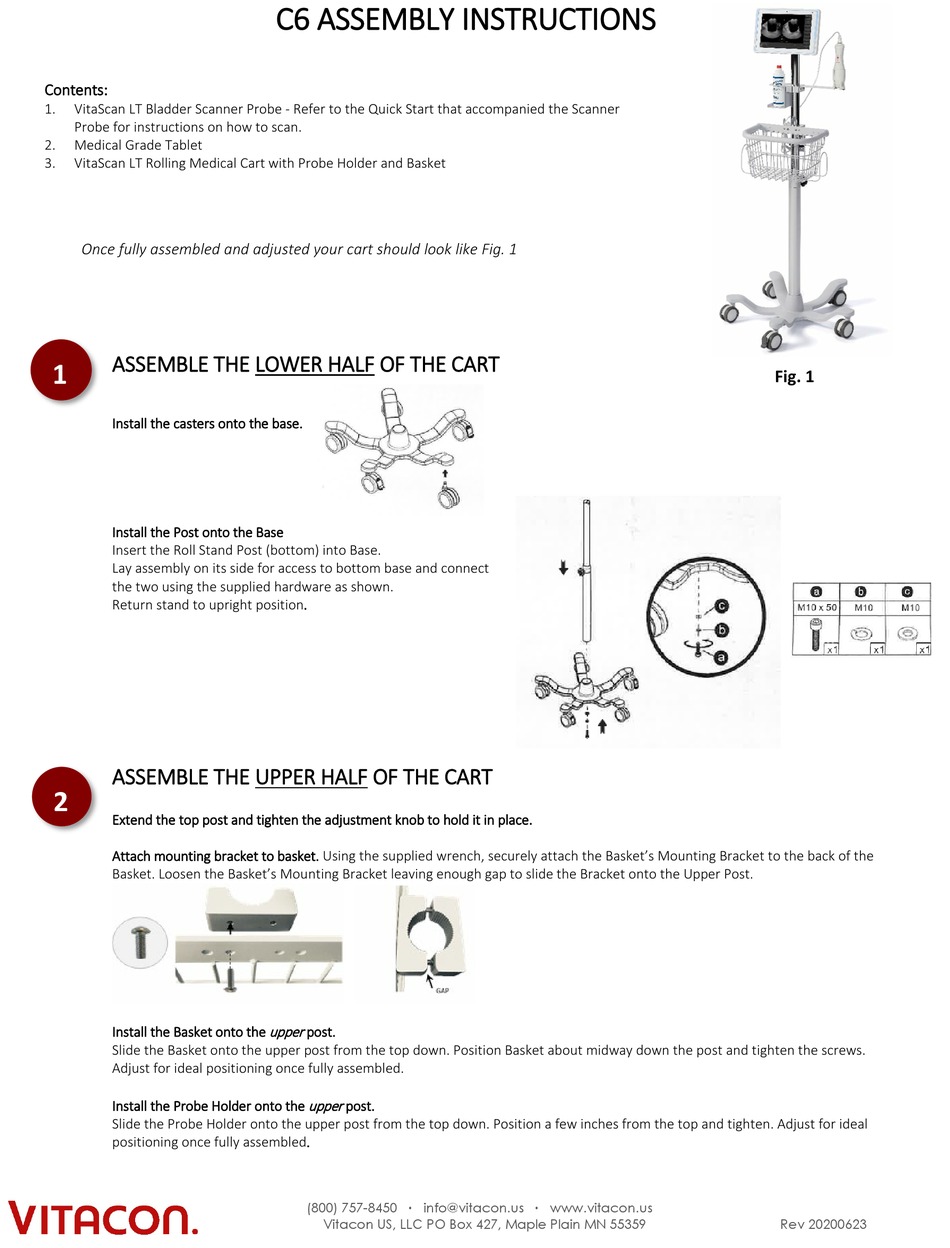

C6 ASSEMBLY INSTRUCTIONS
upper
post.
upper
post.
(800) 757-8450  info@vitacon.us  www.vitacon.us
Vitacon US, LLC PO Box 427, Maple Plain MN 55359
Fig. 1
Rev 20200623
