AUREL SIR2000-5026 Instruction Manual

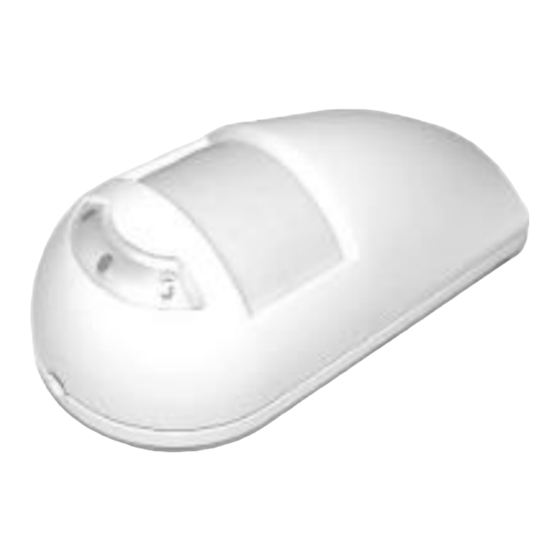

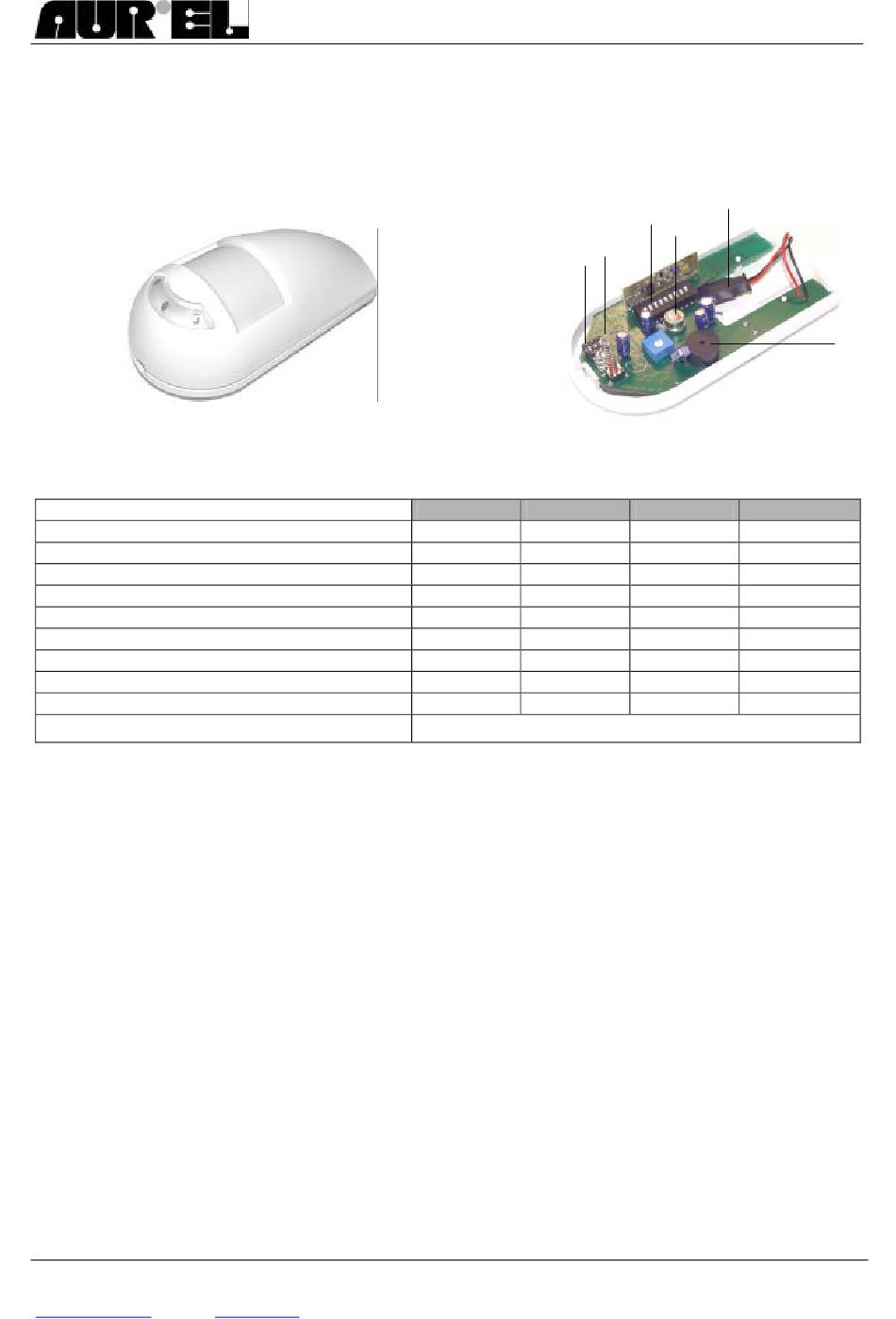

SIR2000-5026, infrared, sensor with radio signalling
Passive pyroelectric effect intrusion detector with remote signalling by an RF codified transmission.

Technical features

Battery supply
Rest consumption
Alarm consumption
Working frequency
Coding type 145026
Inhibition time between alarms
Test inhibition time
Covered distance
Working temperature
Dimensions

How it operates

[1] Dip-switch 1 : in ON position, after an alarm, it inhibits for 2 minutes the PIR sensor (standard
operation). In OFF position, the inhibition time is 4 seconds (test operation).
[1] Dip-switch 2 : It activates the LED, essential for the sensor's test.
[1] Dip-switch 3 : in ON position, continuously activates the RF transmission, to be used to verify the
useful radio transmission distance.
[3] Dip-switch tri-states, 9 positions: determines the RF transmission code (Fig.1).
The number of the possible combinations is 19683, which can be set by the 3 positions, 9 commutators (ON-
OFF-OPEN).
[6] Battery control: when the battery voltage reaches less than 5V, during an alarm, the buzzer will emit
a sound signal.
N.B. The battery must be replaced within few days from the first sound signalling.
[2] Anti-tampering: The device is protected against tampering; any attempt of breaking the plastic case
will trigger an alarm.
Technical features are subject to change without notice. AUREL S.p.A. does not assume responsibilities for any damages caused by the device's misuse
AUREL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fax: +390546941660
http://www.aurel.it - email: aurel@aurel.it
2
1
Min. Typical
9
15
10
433,92
19683
120
4
12
-20
120 x 60 x 45 mm
SIR 2000-5026
Instruction Manual
5
3
4
Fig. 1
Max. Unity
Vdc
µA
mA
MHz
bit
s
s
15 m
+80 °C
Rev. A, January 11th 2002
