AUREL MAG 4M 5026 User Manual

Magnetic contact with radio transmission
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Magnetic contact with radio transmission
The magnetic contact wireless MAG 4M 5026 is a sensor able to detect opening or closing doors or windows
and transmits via radio a alarm signal. It is composed of two distinct elements: a case containing the
magnetic contact and electronic card normally placed on the frame of the fixture and a small permanent
magnet to fit on the mobile element of the fixture. The working is based on the closing and opening of a
sensor capable to operate within a 5mm radius from the permanent magnet.
MAG 4MHCS is battery power supplied and designed to ensure autonomy of 3-5 years, it is always internally
controlled by a meter charge that forwards via radio the battery life time and warns by a beeper and LED,
the alarm of discharged battery.
The radio transmission operates in the 433.92 MHz ISM band with fixed coding settable by a 9 tree-state
vias dip-switch, features as shown in CI 145026. It starts when the magnet is removed from electrical side
to indicate the alarm condition.
It's available a led to indicate the radio transmission, alarm and test.
1.
Reed: magnetic sensor
2.
Magnet: magnet
3.
Dip-switch: 9 tree-state vias to set radio code
4.
JP1 and JP2: Setting mode (see "Sensor Configuration) (see the paragraph "HOW IT WORKS")
5.
Battery: Rechargeable lithium type mod. CR2032.
6.
LED: light signals (see signaling)
The technical features can be change without forecast. AUR°EL S.p.A doesn't assume any responsibility for the demages due to the improper use.
AUR°EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fax: +390546941660
7
http://www.aurel.it
- email:
lab-el@aurel.it
Fig.1
MAG 4M 5026

User Manual

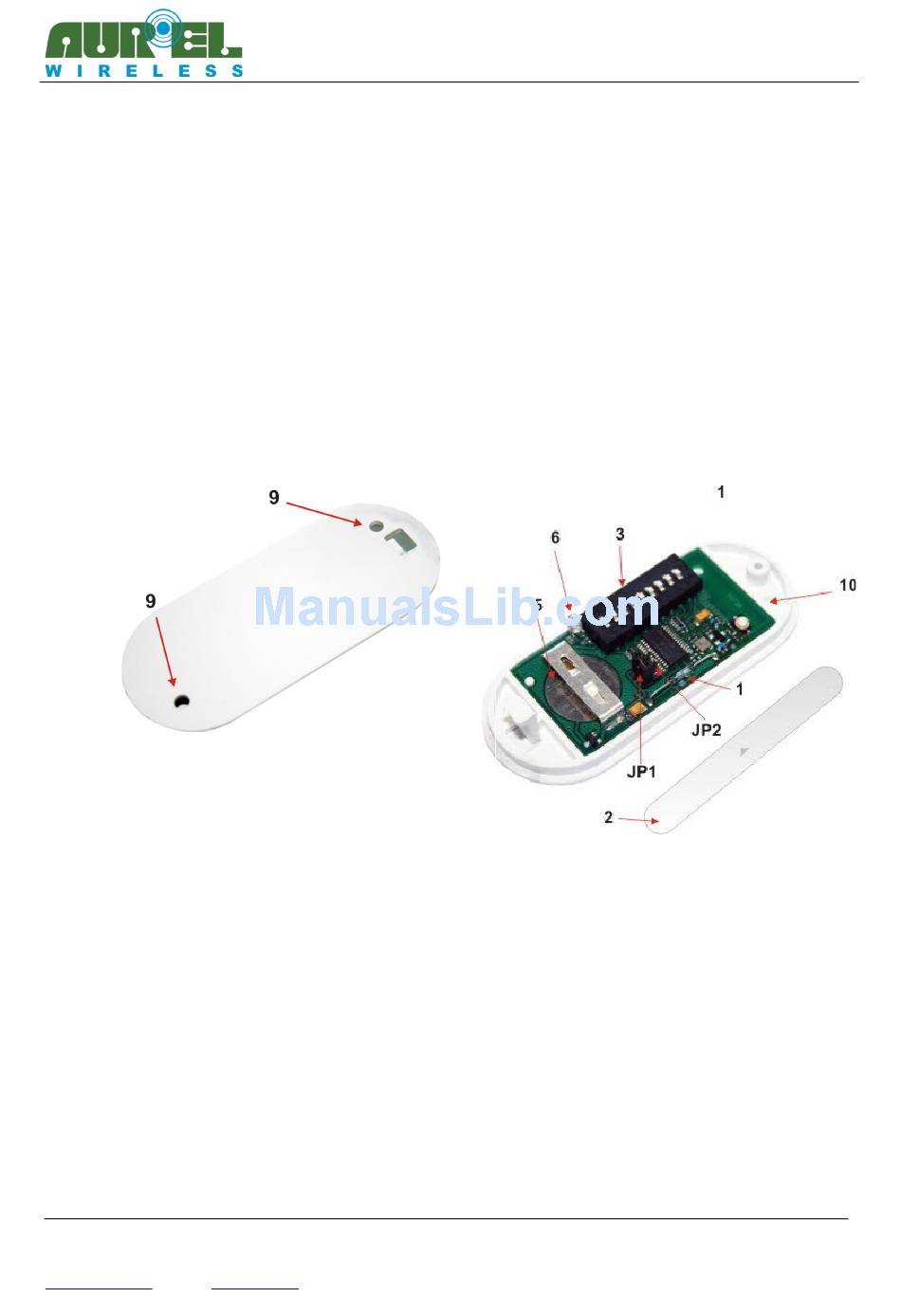

Fig. 2 – Electronic card inside the case
Rev.A 11.06.2014
Page 1 of
Preliminary

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG 4M 5026 and is the answer not in the manual?

Questions and answers

Related Manuals for AUREL MAG 4M 5026

Summary of Contents for AUREL MAG 4M 5026

  • Page 1: User Manual

    Magnetic contact with radio transmission The magnetic contact wireless MAG 4M 5026 is a sensor able to detect opening or closing doors or windows and transmits via radio a alarm signal. It is composed of two distinct elements: a case containing the magnetic contact and electronic card normally placed on the frame of the fixture and a small permanent magnet to fit on the mobile element of the fixture.
  • Page 2 Note: The closing of the magnetic contact is not shown in anyway. Luminous signal Within the MAG 4M 5026 is present a red led which shows the follow functions: It switches on in presence of any radio transmission( alarm signal, radio test).
  • Page 3 Prepare the receiver side in the learning mode. Activate the "radio mode" of the MAG 4M 5026 by closing of JP1 contact and JP2 opening. The radio transmitter will send a modulated signal for 30 seconds with radio code set by 9 vias dip-switch.
  • Page 4 MAG 4M 5026 User Manual Battery substitution The substitution of the battery must be carried out when the LED of the sensor, independently from alarm status, it quickly blinks for two seconds each 5 minutes(alarm signal for discharged battery). In this case the battery is not completely finished and it can ensure a couple of weeks of working.
  • Page 5 MAG 4M 5026 User Manual Working temperature °C Case dimensions 3V litium battery size CR2032 Radio code features MAG AM 5026 implements a fixed code radio protocol with the possibility to set 19683 different codes through the 9 vias three-state dip-switch inside the enclosure.

  • Page 6: Ce Declaration Of Conformity

    MAG 4M 5026 User Manual CE DECLARATION OF CONFORMITY The magnetic contact MAG 4M 5026 is under the follow normative:  ETSI EN 301 489-3 V1.4.1 – Electromagnetic compatibility  ETSI EN 300 220-1 V2.3.1 – Radio features  EN 60950 – Other features The technical features can be change without forecast.
  • Page 7 MAG 4M 5026 User Manual CE Reference In the back of the plastic case that encloses the transmitter is present a label with the identification of the module as those reported here at the left side [product name, manufacturer, voltage supply and current supply].
