AUREL MAG 4MHCS User Manual

Magnetic contact with radio transmission
The magnetic contact wireless MAG 4MHCS is a sensor able to detect opening or closing doors or windows
and transmits via radio a alarm signal. It is composed of two distinct elements: a case containing the
magnetic contact and electronic card normally placed on the frame of the fixture and a small permanent
magnet to fit on the mobile element of the fixture. The working is based on the closing and opening of a
sensor capable to operate within a 5mm radius from the permanent magnet.
MAG 4MHCS is battery power supplied and designed to ensure autonomy of 3-5 years, it is always internally
controlled by a meter charge that forwards via radio the battery life time and warns by a beeper and LED,
the alarm of discharged battery.
It's available a double auxiliary block terminal independent from internal magnetic contact, where it's
possible to connect a second sensor, eg further magnetic contact, sensor for rolling shutters or other type of
sensor that uses a free NC contact. Internal electrical card manages this independent contact and the event
of case opening and consequent sends a unique radio code.
Other functionalities are: the tamper, which is activated in the event of tampering of the enclosure, the tear
can be activated by removing of the sensor installed, a software periodic supervision that communicates via
radio the battery status, tamper, magnetic contact independent alarm condition.
The radio protocol is a rolling code type, programmable on demand, and unique code programmed in AUREL
for each sensor.
A LED shows radio transmissions, alarms and test.

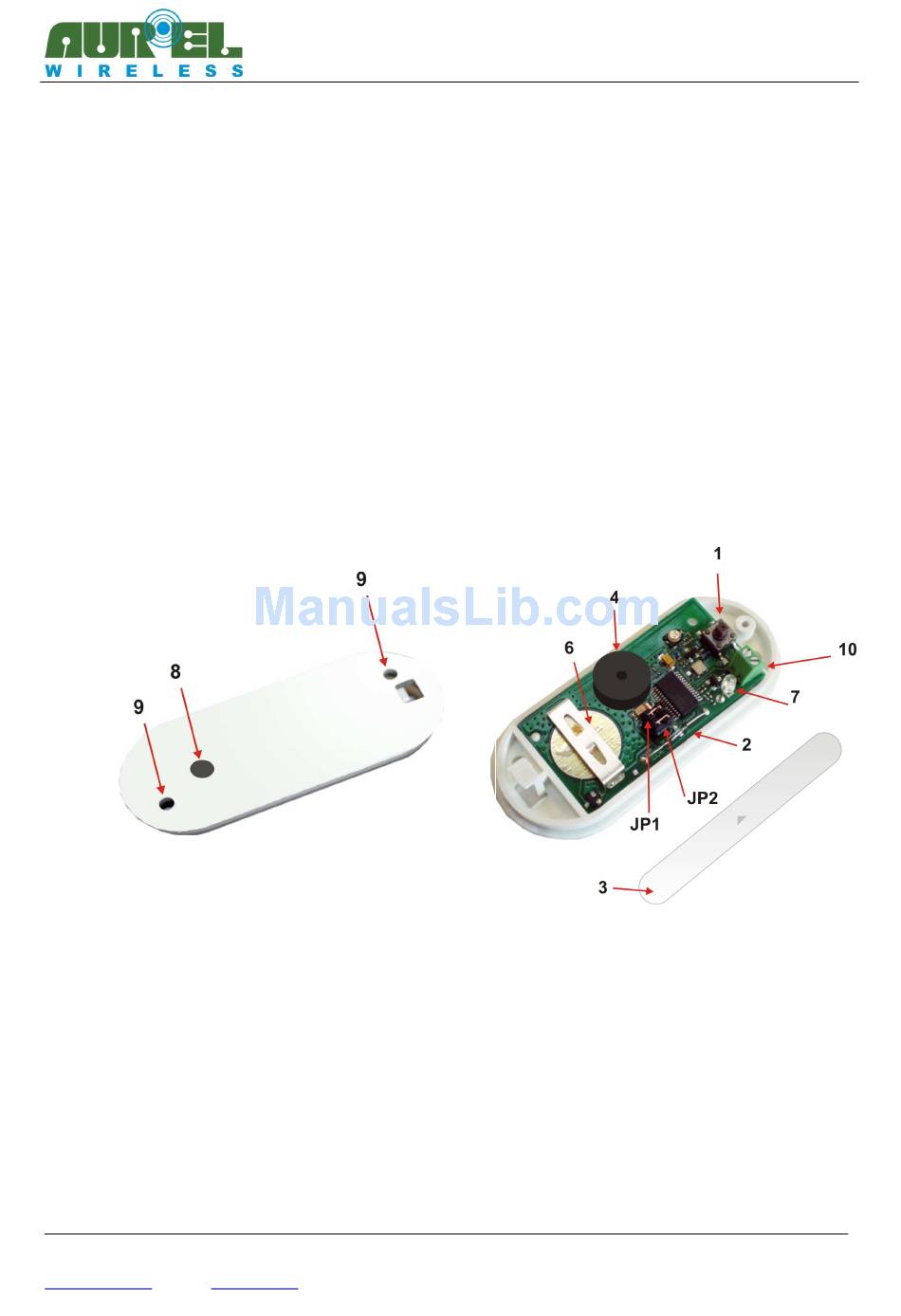

1. Tamper Alarm: Tamper switch
2. Reed: magnetic sensor
3. Magnet: magnet
4. Buzzer: Low battery indicator
5. JP1 and JP2: Setting mode (see "Sensor Configuration).
6. Battery: Rechargeable lithium type mod. CR2032.
7. LED: light signals (see signaling)
8. The tear: Contact tear
9. Fixing screws
10. Auxiliary input
The technical features can be change without forecast. AUR°EL S.p.A doesn't assume any responsibility for the demages due to the improper use.
AUR° EL S.p.A. Via Foro dei Tigli, 4 - 47015 Modigliana (FC) – ITALY
Tel.: +390546941124 – Fax: +390546941660
http://www.aurel.it - email: lab-el@aurel.it
Fig. 2 – Electronic card inside the case
