- Page 1 User guide / Installation guide Easee Base 1-Way / 2-Way...
-
Page 2: Table Of Contents
Table of contents Introduction Introduction Technical specifications Safety instructions Product overview Assembly instructions Adapter plate 1-Way 2-Way Power Rail Practical details Practical details IMPORTANT: Read carefully before use. Keep for future reference. -
Page 3: Introduction

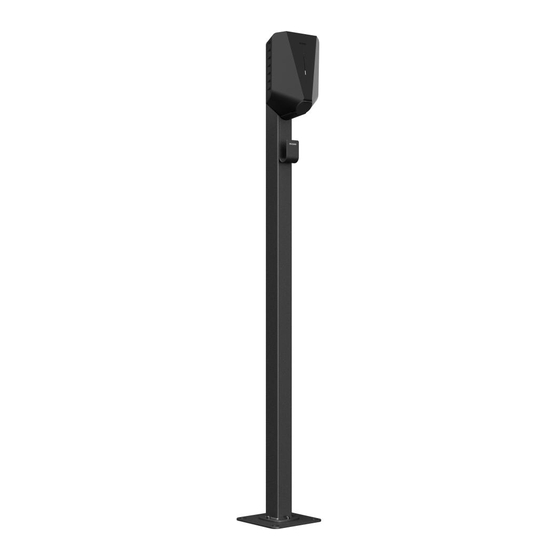

Introduction Technical specifications Easee Base General The Easee Base is a modular charging post for mounting Dimension (mm): H: 1500 x W: 160 x D: 80 up to four Easee Charging Robots. Weight: 6.1–7.7 kg Material: Aluminium With Easee Base, it is possible to choose between... -
Page 4: Safety Instructions
Safety instructions — Do not immerse the product in water or other liquids. — It is advisable to have an extra protection around the post when mounted in an open parking space. — Make sure that children do not play with the product. —... -
Page 5: Product Overview
Product overview Common parts Column Side panel Power Rail Adapter plate Ground connection plate Screws, washers and nut... - Page 6 Product overview 1-Way / 2-Way Mounting plate 1-Way cover 1-Way x1 2-Way x2 Screws 1-Way 2-Way...
-
Page 7: Adapter Plate
Column Attach the foundation of the column to the adapter Adapter plate plate with 4 socket head screws. Recommended torque is 30-40 Nm. INFO! It can be mounted in 45° increments to get the correct direction. Column at a 45° angle... -
Page 8: 1-Way
Assembly instructions 1-Way 1-Way Plate and cover Attach the mounting plate with 3 flat head screws and the cover with 3 rounded head screws. NOTICE! Make sure the top end of the column is sealed with a plastic cap. - Page 9 1-Way Thread the cable through the hole in the column and Backplate the Easee charger backplate before attaching it with 4 rounded head screws.
-
Page 10: 2-Way
Assembly instructions 2-Way 2-Way Plates Attach the mounting plates to the column with 3 flat head screws each (6 screws total). NOTICE! Make sure the top end of the column is sealed with a plastic cap. - Page 11 2-Way Thread the cables through each hole in the column and Backplates the Easee chargers backplates before attaching them with 4 rounded head screws (8 screws total).
-
Page 12: Power Rail
Power Rail Power Rail Before connecting The Power Rail is a connection box that allows multiple charging posts to be connected in series. Please pay attention to the earthing system of the charging post, which is described carefully in the following pages. - Page 13 Power Rail Before installing the Power Rail make sure to apply Ground the ground connection plate. The plate is essential for connecting the post to the protective earth (PE). connection 1. Make sure the top PE terminal screw is open, then plate wedge the end of the plate into the terminal from the back.
- Page 14 2. Insert the serrated washer on the rod inside the column. It should be placed between the metal column and the Power Rail. 3. Slide the Power Rail with the ground connection plate inside the column and latch the bottom of the rail into the catch.
- Page 15 4. Fasten the grounding nut with the spring washer on the rod. NOTICE! In order to complete the PE connection, the grounding nut has to be fastened and the top PE terminal screw has to be tightened (regardless of whether there is a wire in it or not). Important! Do not forget this step!
- Page 16 Power Rail The ground connection plate connects the entire Terminals leftmost lane to the metal column, so it is very important that this lane is only used for PE connections. We recommend using the two lower terminal sets for the main power cables. One set of terminals is used for power in and the other is used for power out, if you want to connect another charging post on the same cable.
- Page 17 We recommend using the two upper terminal sets for the charger cables. For a single charger, only one set of terminals is used, and for two chargers, both sets of terminals are used. Wire size up to 6mm². 1-Way 2-Way Charger 1 Charger 1 Charger 2...
- Page 18 Power Rail Wiring TN/TT 3-phase IT/TT 3-phase (230/400 V) (230 V) 1. Strip the individual wires by 12 mm. If the cable has flexible conductors, it is recommended to use ferrules on stranded wires. Use correct tools to press them. 2.
-
Page 19: Practical Details
All correctly installed Easee hardware is covered by our 3 years* limited warranty. *Some countries may have extended warranty. - Page 20 Easee AS. Easee and all other Easee product names and slogans are trademarks or registered trademarks of Easee AS. Easee products can be protected by one or more patents.
- Page 21 Easee AS Grenseveien 19 4313 Sandnes, Norway .easee.com...
