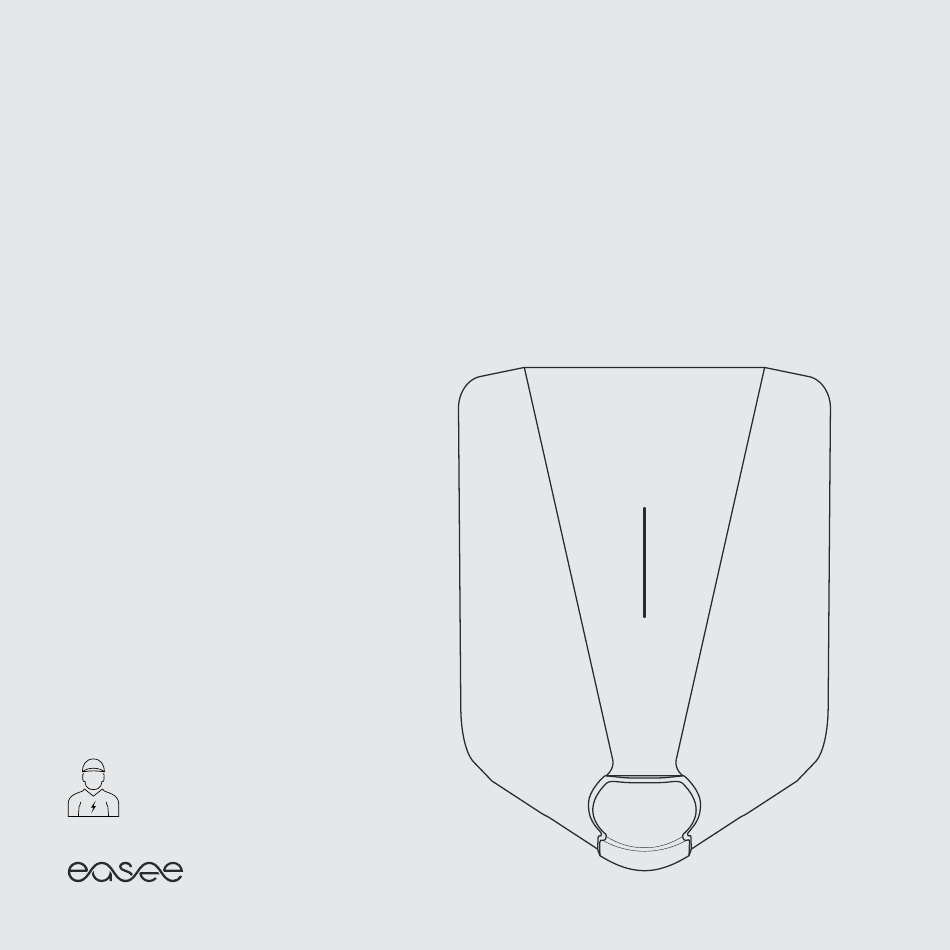

- Page 1 Quick Guide Installation Instructions Authorized personnel only...
- Page 2 Easee and all other Easee product names and SUBJECT TO CHANGE WITHOUT NOTICE. slogans are trademarks or registered trademarks of Easee AS. Easee products can be protected by one The latest version of this publication can be or more patents.
- Page 3 Open the charging robot 1. Bend down the lower part of the rubber cover and insert the two ends of the included tool into the two openings at the bottom of the front cover. 2. Pull down until it comes loose. 3.
-
Page 4: Mounting The Backplate
Mounting the backplate 1. The backplate is mounted on the wall using the 4 wall-screws supplied in the installation kit. Use appropriate wall plugs for different types of walls. If you have multiple backplates, now would be a good time to mount them as well! 130-140 cm Recommended installation height... - Page 5 Prepare the backplate 1. Fit the sealing plug on the cable before connecting in the backplate. 2. Secure the sheath of the cable by using the supplied strain relief. 3. Close all holes that are not used for cable entry with the blind sealing plugs supplied.
- Page 6 Connect the backplate 1. All cable cores must be stripped back allowing 12mm exposed conductor. 2. For parallel connection, each termination port is used as connection point. 3. Tighten the screws with a torque of 5Nm. Terminations should be visually and mechanically inspected before mounting the electronics.
- Page 7 Plug in the electronics 1. Match up the tabs on the Chargeberry with the slots in the backplate. 2. When the Chargeberry has reached the bottom, push it down with good force until you hear a click! When installing several charging robots, you must use the same chargeberry to program all the back plates that are connected to the same fuse / cable - so please wait to plug in the remaining ones! Click!
- Page 8 This is done by first holding the touch button until the light strip turns green and you hear a confirmation tone. 2. Select the Wi-Fi network that begins with ”Easee...” 3. Open your browser and enter 192.168.4.1 in the address field.
- Page 9 Enter installation details 1. Enter installation details and follow the on-screen instructions. 2. Press on the screen for more information. For several charging robots connected to the same fuse, all the back plates must be programmed with the same chargeberry in order for load- balancing to work! Click!
- Page 10 Lock the electronics Lock the Chargeberry with the included padlock. Locking the electronics adds an extra level of security. (Optional)
- Page 11 Mount the front cover 1. Hang the front cover at the top of the backplate and let it fall into place. 2. Then press the bottom of the front cover until you hear a click! 3. Bend the lower part of the rubber cover down. 4.
- Page 12 Powering your freedom Easee AS Professor Olav Hanssens vei 7A 4021 Stavanger, Norway...
