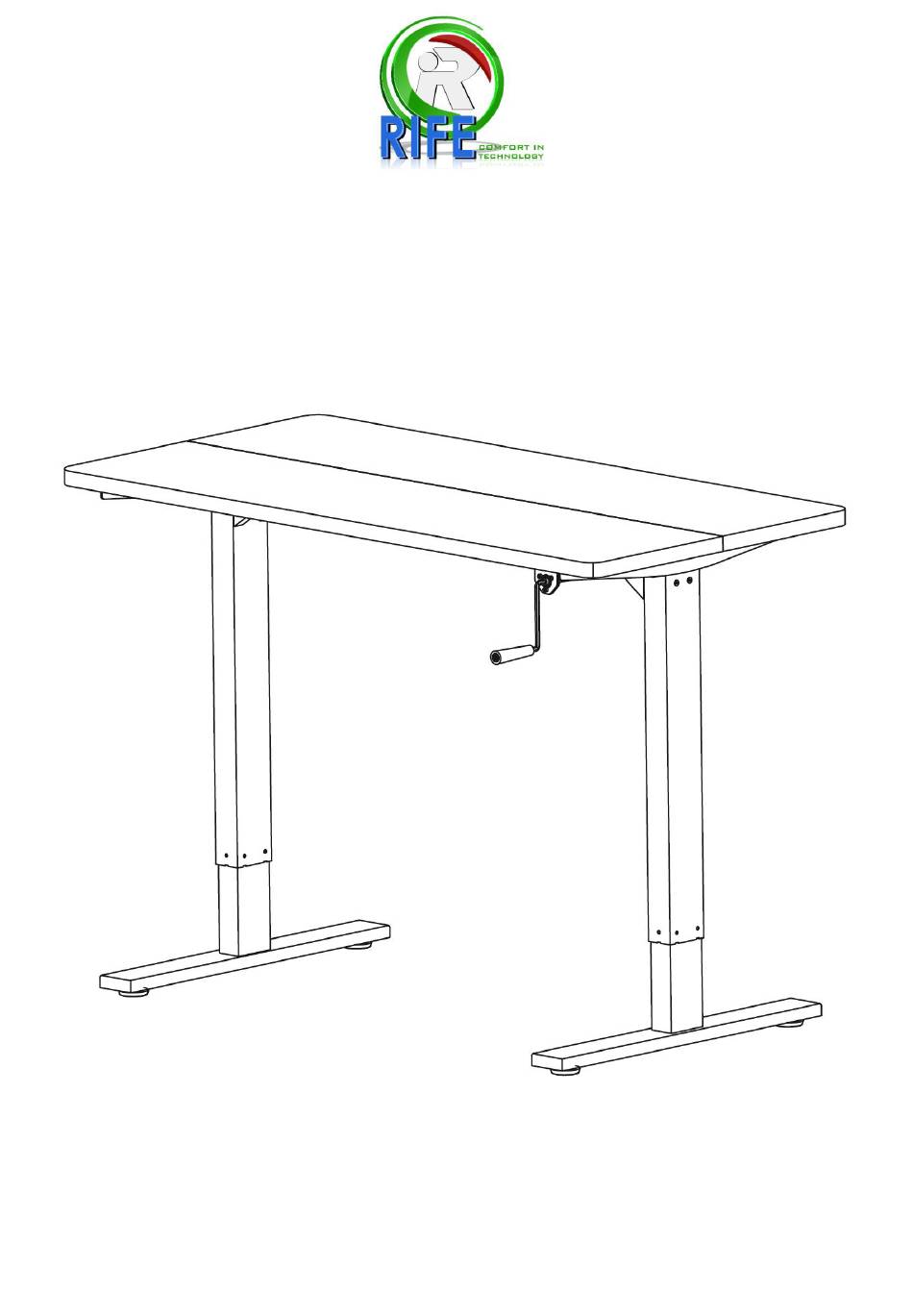

- Page 1 Rife Technologies Crank Height Adjustable Desk CT1200 WWW.rifeindia.com Tel : 9899250704 ASSEMBLY & USE INSTRUCTIONS...
- Page 2 Parts List Part Components Table board Crossbar Rail Connecting Link Side Bracket Lift Column Foot Handle Connecting Handle Leveling Feet Machine Screws: M6*12 Wood Screws: ST5*16 Wooden pin 4mm Allen Key 2.5mm Allen Key...
- Page 3 STEP 1 Lay out all components and hardware to ensure that you have all components and hardware listed on the parts page . STEP 2 Position two Crossbar rails (#2) on its side. Place one Lift column (#5) on the Crossbar rails..
- Page 4 STEP 4 Position the Connecting link (#7) in the middle of the desk base, adjust its length and tighten the screws on the Connecting link. Slightly loosen the screws at A and B with the 2.5mm Allen key (#14)（do not remove the screws）...
- Page 5 STEP 5 Position the Handle Connecting(#7) and Handle (#8) as shown. SETP 6 Connect the table board(#1) with four wooden pins(#12) as shown.
- Page 6 STEP 7 Confirm the desk frame is properly positioned on the underside of the table board . Attach the desk frame to the underside of the table board by using twelve ST5x16 wood screws (#11). Adjust the length of the Handle connecting (#7) as per desktop length, tighten the screw on the Handle connecting .
