Summary of Contents for Rife DM7

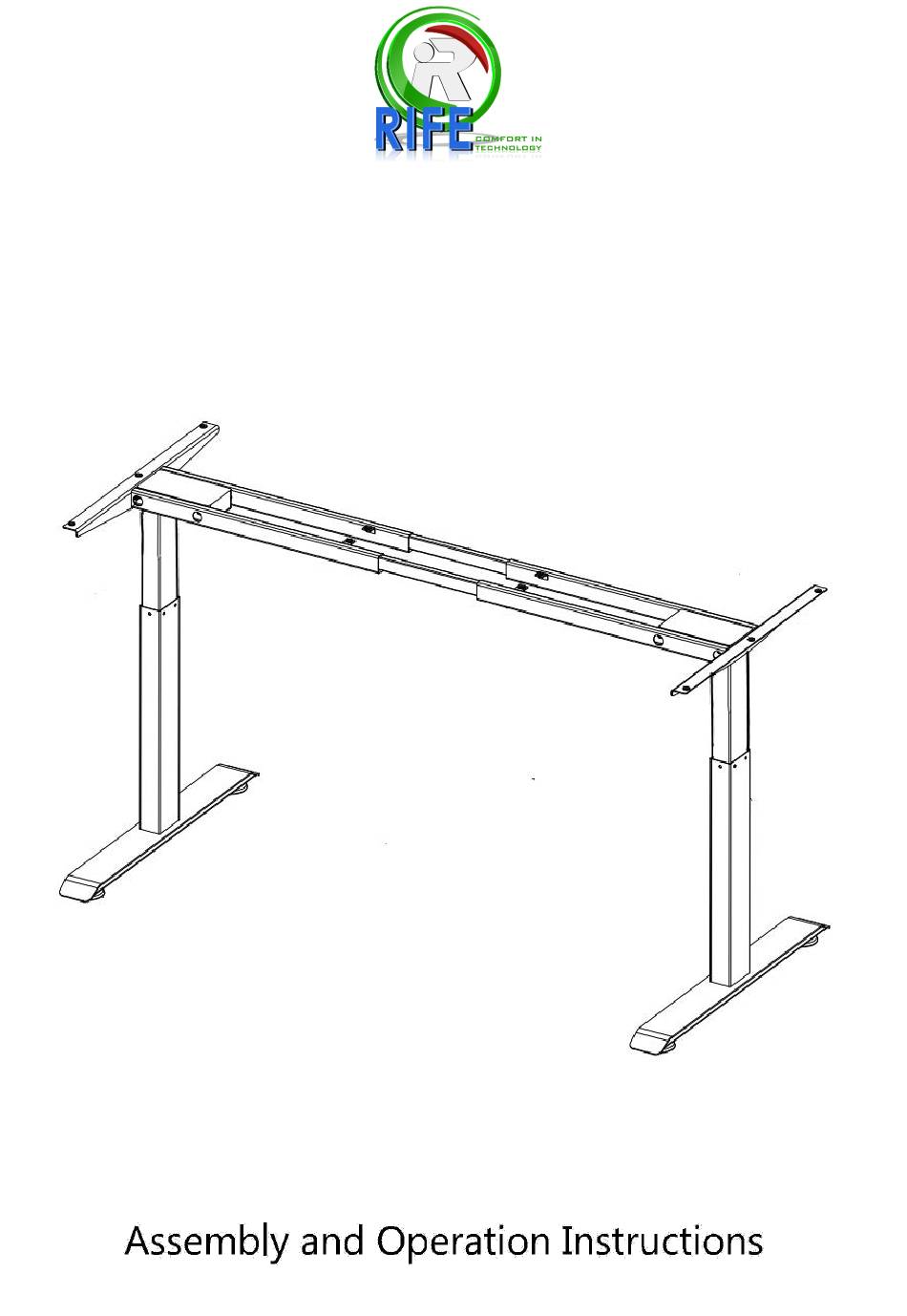

- Page 1 Rife Technologies HEIGHT-ADJUSTABLE DESK DM7 www.rifeindia.com Tel : 9899250704...
- Page 2 Part Name End Frame Cross Rails Side Bracket Lift Column Foot Control Box Handset Power Cord Leveling Feet Machine Screws M6*12 Machine Screws M6*10 Wood Screws M5*16 Cable Clips...
- Page 4 Attach the foot (Part 5) to the bottom of each Lift Column (Part 4) using 4 pcs M6 × 12 mm Machine Screws （Part 10） tighten firmly. Attach the Leveling Feet（Part 9） to the foot foot (Part 5) and tighten firmly. Insert the Cross Rails (Part 2) into the End Frame (Part 1) on both sides.
- Page 6 Ensure the wood screws are not too long for the width of your desktop surface; Otherwise they may puncture it when screwed all the way in! Check that the frame is properly positioned on the underside of the desktop. Attached the base to the underside of the desktop using 14 M5x16mm Wood Screws 3 per Side Bracket ( Part 3 ) ---6 total 1 per End Frame ( Part 1) ---4 total...
-
Page 9: Up Down Operation
1.The interface of hand controller The key instructions: 2.Initialization Operation When the system is abnormal, or hand controller display the "RST", you need to make lift table initialized, initialization, Press the "DOWN" button, until the motor stopped then after 5 second, enter the initialization mode automatically.At this time can't loosen the "DOWN"... - Page 10 5.The minimum limit set System supports desktop minimum height limit, methods for operation, when it comes to setting the lowest height for the desktop height, the corresponding height at the same time Press the "SET" and "DOWN" button for 5 seconds, the buzzer sound can be heard at this time, is the location of the minimum storage success.
