SERVICE

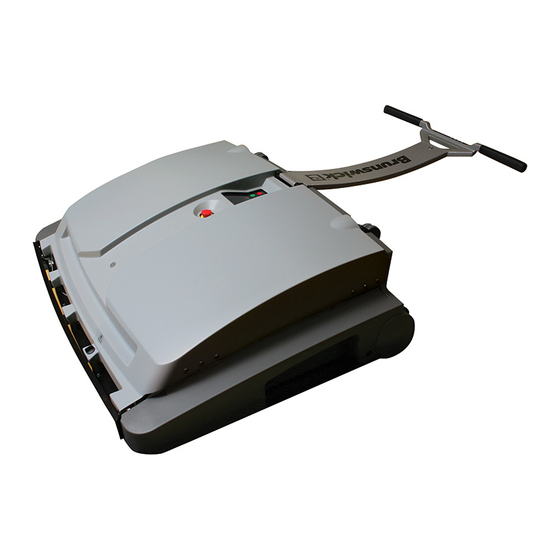

Subject: Authority22 Spray Nozzle Assembly
Distribution: Authority22 Customers
Part Numbers
Cleaner Nozzle Body, Long, 14-100410-000
Cleaner Nozzle Body, Short, 14-100411-000

Introduction

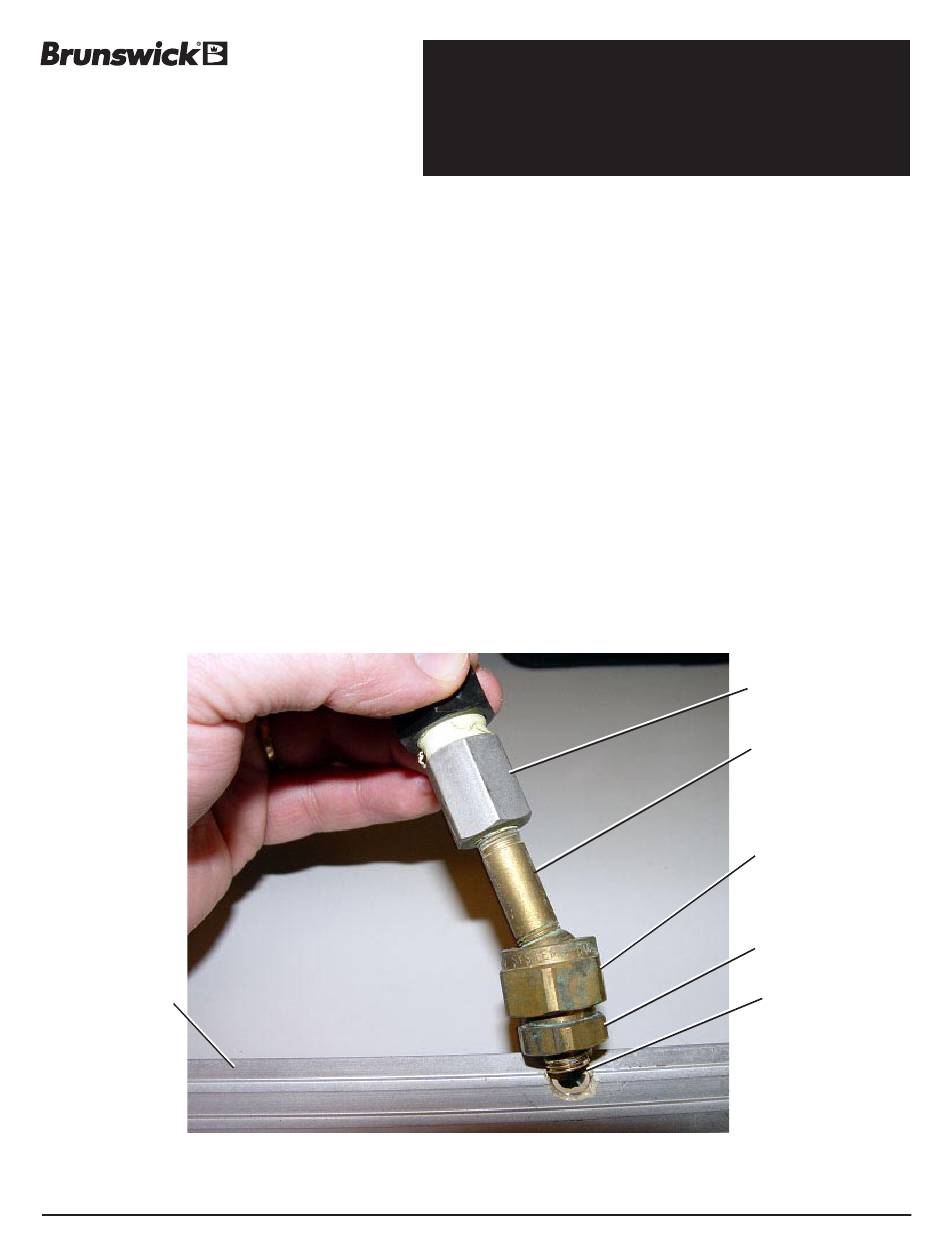

It has come to our attention that the cleaner spray nozzle body assembly threads of the bottom ball socket nut are
being broken off inside the cleaner rail of the Authority22. The leading cause of this failure is incorrect adjustment
of the spray nozzle assembly by the user. Refer to Figure 1.
This bulletin will explain the correct adjustment and incorrect adjustment of the spray nozzle body assembly. It will
also provide the procedure for the removal of the threads of the bottom ball socket nut if they have been broken
off inside the cleaner rail assembly.
CLEANER RAIL
ASSEMBLY
(C) 2008 Brunswick Bowling & Billiards Corporation, 525 West Laketon Avenue, P.O. Box 329, Muskegon, Michigan 49443-0329
BULLETIN
Figure 1
Date: 2/29/08
Bulletin No. SB08-2
ASSEMBLY,
CLEANER
NOZZLE BODY
BALL & STEM
BALL SOCKET
JAM NUT
BOTTOM
BALL SOCKET
NUT
BROKEN
THREADS
OF NUT
Page 1 of 5
