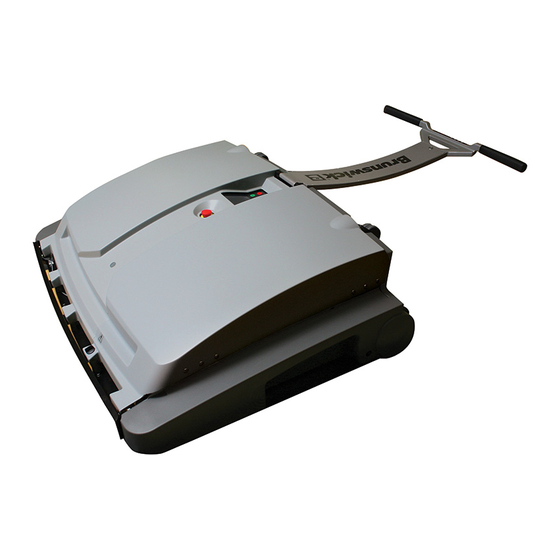

Authority22 Graphic User Interface will not turn on.
Symptom #1: Graphic User Interface (GUI) display will not come on, nor will the Red LED on the
keypad come on. "No Power to the GUI"
Symptom #2: Sometimes a "Power Lost" message will be shown on the display and the red LED will
be blinking ("Power Lost" troubleshooting is near the bottom of this document)
What the "Power Lost" message means:
This means there has been an interruption or loss of power to the GUI. It had lost power during operation from
a loose connection or a voltage drop from the machine. You will see this message on the GUI screen and the
Red LED is lit and flashing on the keypad under normal conditions.
Note: Before starting any troubleshooting below, Is the emergency stop button depressed? Push down on the
emergency stop button, then turn the red knob and let it pop back up to the on position. Are any of the
breakers tripped? Is there still no power to the GUI? The GUI has a red LED in the keypad that will light when
power is applied.
If not, remove the GUI and test your GUI with the external power supply from you spare parts kit to see if the
GUI can be powered up. If you use the external power supply to power up the GUI, and the GUI does in fact
power up and boot to the operating screen, then follow the procedures below.
If the GUI does not power up the UPS inside the GUI could have failed or there is a broken terminal on the
UPS board. Open the cover of the GUI and remove the mid plate to check connections and wiring. If after
checking the wiring and the GUI still does not turn on replace the UPS or GUI. Electronic Repair Center part
number for the UPS is # 14-100177-800 and the part number for the GUI is # 14-100362-800
Troubleshooting "No Power to the GUI".
#1
Is the power cord plugged in and the main power switch on the Electrical Enclosure turned on? If so,
see step #2
#2
Is the emergency stop button depressed or wiring disconnected?
•
Press down on the emergency stop button and turn it so it pops back up to make sure it is up
and on.
•
We have seen the bottom part of this emergency stop switch come loose on the inside of the
electrical enclosure, be sure to open the cover and check this connection.
•
If the emergency stop switch is good see step #3
#3
Is the Power/Communication cable from the electrical enclosure to the GUI plugged in to the back of
the GUI and plugged into the electrical enclosure located on the RH side looking from the T handle
named "User Interface"?
Note: The newer power cables have fuse holders in the red power line near the connector for the GUI
as shown below in Figure #1. There is a 2-amp slow blow fuse in this line, is it blown? Verify with a
voltmeter.
Advertisement
Related Manuals for Brunswick Authority22
Summary of Contents for Brunswick Authority22
- Page 1 Authority22 Graphic User Interface will not turn on. Symptom #1: Graphic User Interface (GUI) display will not come on, nor will the Red LED on the keypad come on. “No Power to the GUI” Symptom #2: Sometimes a “Power Lost” message will be shown on the display and the red LED will be blinking (“Power Lost”...
- Page 2 Figure #1 • To test for 12 VDC to the GUI, unplug the green power connector to the back of the GUI, using a digital volt meter set it for DC Volts, put one lead on each of the set screws like in the picture below Figure #2 Figure #2 •...
- Page 3 Figure #3 If there is no power from the User Interface connection at the enclosure we need check the power supply. To start we need to remove the electrical enclosure top cover to check for 12 VDC. Leave the emergency stop switch connected when performing this check. •...
- Page 4 • If 12 VDC is present, check the “J2” connection right next to “J1” for 12 VDC • If there is 12 VDC present at “J2” you must now check the voltage at the Machine Controller PCB see step #6 •...
- Page 5 Figure #5 • After the two screws have been removed from the sides of the top corners of the enclosure, grab the center edge and lift up (Figure #6) very slowly so that you can see the power cable attached to the Machine Controller PCB at location “J10” (Lower board) Figure #6 Note: Before you remove this power cable from the Machine Controller PCB you must make a mental note of how it is plugged into the lower PCB.
- Page 6 • Unplug the power cable from the lower Machine Controller PCB and with the power on test this cable for 12 VDC. • If this cable has 12 VDC at the end where it plugs into the Machine controller PCB and no 12 VDC out of the “User Interface”...
- Page 7 Figure #7 #8 Removing the Electrical Enclosure to check the power supply: • To remove the Electrical Enclosure, you must remove all the connections from the RH and LH side of the enclosure and remove all the injector cables connections behind and under the GUI screen that run through the middle wall.
- Page 8 • Next you will need to plug the AC Power cable back into the enclosure to test the power supply. To do this you must cut the cable ties that secure the AC power cable to the group of cables near the LH side of the enclosure.
- Page 9 Note: As a check, you can check for 12 VDC at the power supply terminal strip by placing any lead from the voltmeter to any red wire and placing the other lead to any black wire. • If there is not 115V at the two red/red & white terminals wires on the power supply, double check the black and white wires going to the transformer from the emergency stop relay for 115 volts.
- Page 10 • These two terminals when the power is applied should have 120/230 volts, if not the emergency stop button has failed or a wire is loose or off. • If there is 120/230 volts at these two terminals we will need to check the incoming voltage to this same relay.
- Page 11 In 2007 we found that the 1-amp fuse for the GUI circuit on the machine controller PCB was not enough for a well-used GUI. It pushed the limits on the 1-amp fuse and had to be changed to a 2-amp fuse. This fuse is not the traditional glass type of fuse.
