GS Overflow Sock Pin Cleaner
Packaging
2 ea.
1 Pkg.
47-860012-000
Tools Required
- Wrench - 10 mm
Instructions
1. Remove the two screws (6 mm x 16 mm) securing the overflow chute to the elevator bracket.
2. Reassemble with new plate between elevator bracket and the overflow chute mounting bracket
(47-095729-004). Refer to Figure 1.
April 2011
Plate
Pin Cleaning Mop (Pkg. of 2)

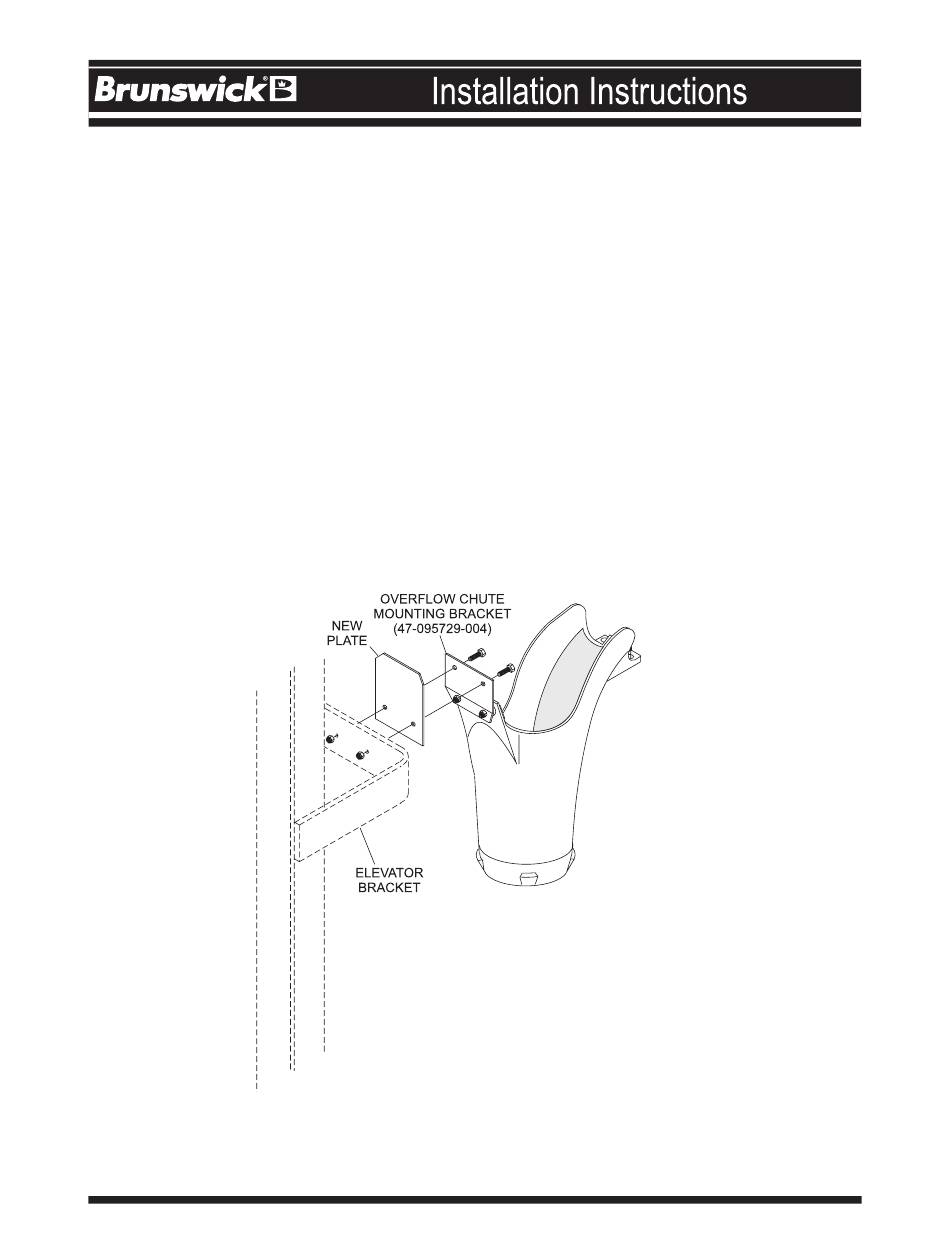

Figure 1
© Brunswick Bowling & Billiards Corp. 2011. All rights reserved.
1
47-902001-000
Advertisement
Table of Contents
Related Manuals for Brunswick 47-860012-000
Summary of Contents for Brunswick 47-860012-000
- Page 1 GS Overflow Sock Pin Cleaner Packaging 2 ea. Plate 1 Pkg. 47-860012-000 Pin Cleaning Mop (Pkg. of 2) Tools Required - Wrench - 10 mm Instructions 1. Remove the two screws (6 mm x 16 mm) securing the overflow chute to the elevator bracket. 2. Reassemble with new plate between elevator bracket and the overflow chute mounting bracket (47-095729-004). Refer to Figure 1. Figure 1 © Brunswick Bowling & Billiards Corp. 2011. All rights reserved. April 2011...
- Page 2 3. Place sleeve of the pin cleaning mop onto the new plate and let the mop suspend into the overflow chute. Refer to Figure 2. Figure 2 4. When bottom half of the pin cleaning mop becomes dirty, remove the mop, turn upside down and place opposite sleeve of mop onto the new plate. 5. When both ends are dirty, wash in cold water with home laundry detergent. Dry using low heat setting.
