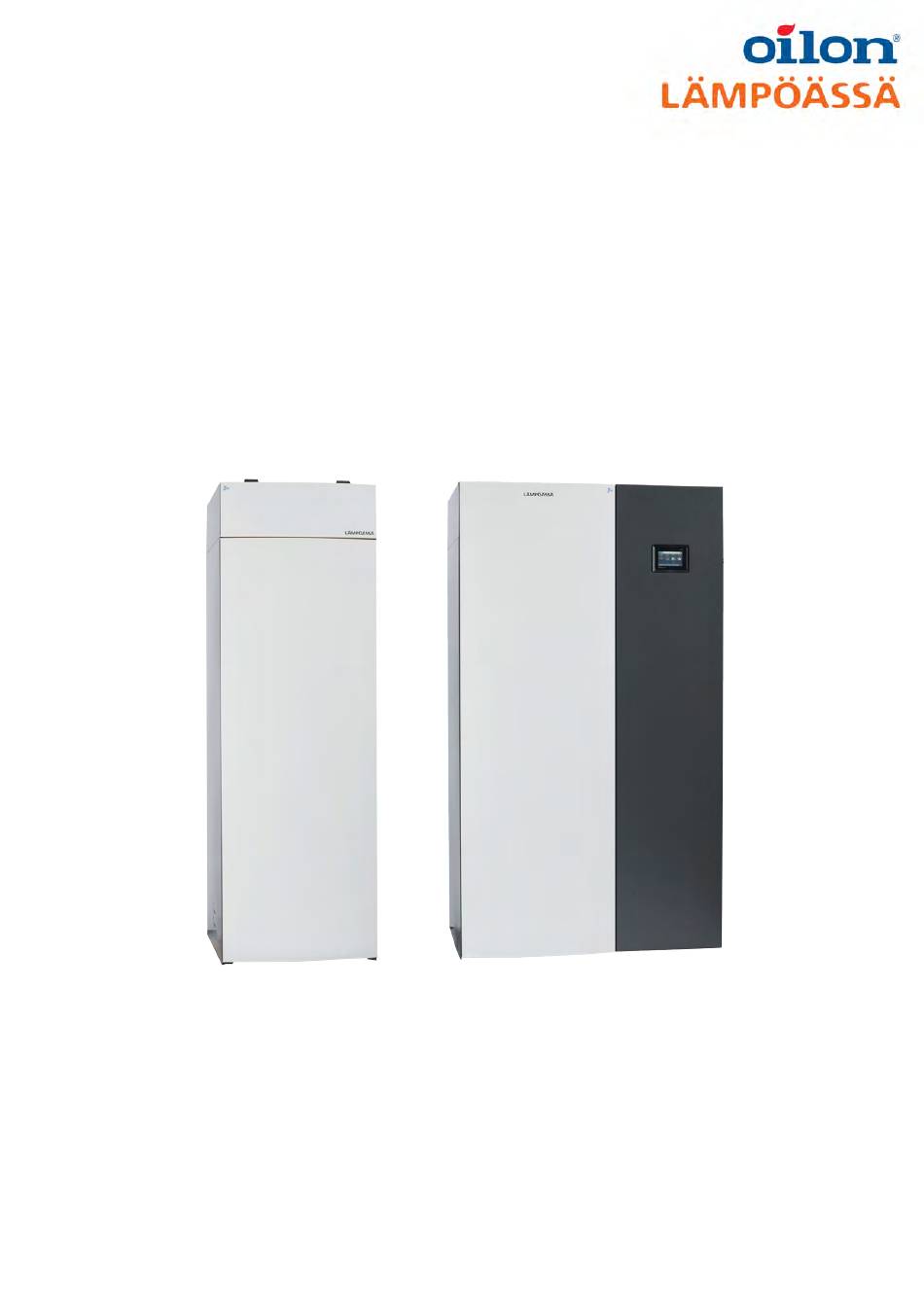

- Page 1 VSi 6-14, VMi 6-17 ÄssäControl Installation and operation manual M8011 2204EN 25 January 2022...
-
Page 3: Table Of Contents
Contents Introduction Safety notice and warnings................ 3 Transportation..................... 5 Product description..................5 System structure and operation..............6 Optional accessories...................9 Installation Before installation..................11 Bivalent operation: use with supplementary heating........ 11 Installation site requirements..............11 Removing the packaging and inspecting the contents......12 Removing transportation supports............ - Page 4 4.4.5 Timers......................31 4.4.6 Measurements...................32 4.4.7 Heating curves..................33 4.4.8 Boiler settings: storage tank settings............34 4.4.9 Accessories....................36 Menu functions..................37 Menu functions: Other settings..............37 4.6.1 Heating circuit min and max temperature..........38 4.6.2 Backup device settings: options for backup heater........39 4.6.3 Partial power settings................39 4.6.4 Summer functions..................
-
Page 5: Introduction
1 Introduction 1.1 Safety notice and warnings Read these instructions carefully before installation, commissioning, operation, or maintenance of the device. The given instructions must be followed. Throughout this manual, the following three symbols are used to point out very important information: Be careful. - Page 6 The manufacturer shall not be liable for any defects in the equipment resulting from improper installation or any costs arising thereof. Only certified technicians who have received the appropriate training for installing Oilon and Lämpöässä heat pumps may use the heat pump’s maintenance functions. 4 (70)
-
Page 7: Transportation
1.2 Transportation During lifting, do not walk or work under the heat pump or any other suspended load. Transport the heat pump in an upright position. ● If the heat pump needs to be tilted to pass through a doorway, do not tilt the unit beyond 45°. -
Page 8: System Structure And Operation
1.4 System structure and operation Ground source heating system Ground source heat pump system ver. 1 Principle drawing of a ground source heating system. 1: brine circuit (horizontal ground loop, borehole or lake/pond system); 2: ground source heat pump; 3: heating circuits (radiator heating or floor heating); 4: domestic hot water heating; 5: passive cooling (optional). - Page 9 increases by a few degrees. The brine is then pumped into a heat exchanger inside the heat pump: the evaporator. In the evaporator, thermal energy is transferred from the brine to low-pressure refrigerant, evaporating the refrigerant. In vertical systems, a deep well is bored into the bedrock. In horizontal systems, an extensive coil of plastic pipe (PEM 40/10) is buried to a depth of 1–1.2 meters or more or submerged in a body of water (minimum depth: 3 meters).
- Page 10 Pos. Item Evaporator Compressor Desuperheater Condenser Expansion valve Upper storage tank section Lower storage tank section Domestic hot water coils Domestic cold water inlet Domestic hot water outlet VSi operation ver. 1 Principle drawing of a V series heat pump. Storage tank on top, heat pump at the bottom.
-
Page 11: Optional Accessories
Domestic hot water is heated by drawing domestic cold water through a coil inside the storage tank. In tanks with two sections, the domestic water is pre-heated in a coil in the lower section, and brought to its final temperature in the tank’s upper section. Usually, domestic hot water needs to be heated to a higher temperature than the water circulating in the heating circuits. - Page 12 By default, the system supports control of one external supplementary heat source. Control for up to 4 external heat sources is available as an optional accessory. 10 (70) M8011 2204EN...
-
Page 13: Installation
2 Installation 2.1 Before installation The manufacturer shall not be liable for any defects in the equipment resulting from improper installation or any costs arising thereof. Any pipe installation associated with the heat pump may be performed by qualified and trained personnel only. Check the following before installation: 1. -
Page 14: Removing The Packaging And Inspecting The Contents
The unit’s installation site should have a floor drain. The site’s floor should be inclined so that any runoff from the unit leads towards the drain. Place the unit on a stable, steady base that can carry the entire weight of the heat pump and a full storage tank, see the tank volume in the technical data. -
Page 15: Removing Transportation Supports
Accessory included in delivery Outdoor temperature sensor Adjustable feet (4 pcs.) Brine circuit fill and bleed unit Flexible hoses for the brine circuit (2 pcs, approx. 600 mm) Shut-off valve, 1" Filling bottle with shut-off valve Connecting pipe ... -
Page 16: Detaching Crown Plate
There is a copy of the diagram on top of the storage tank. Connections, VSi Pos. Connection Size Heating circuit 1, 22 mm flow Heating circuit 1, 22 mm return Heating circuit 2, 22 mm flow Heating circuit 2, 22 mm return Domestic cold water 22 mm... -
Page 17: Brine Circuit And Fill And Bleed Unit Installation, Vsi
Screw positions, VSi Screw positions, VMi 2. Pull the crown plate towards yourself and lift it off of the heat pump. 2.6.2 Brine circuit and fill and bleed unit installation, VSi Use special care when making the connections. The heat pump case has an opening for brine circuit pipes on both sides. 1. -
Page 18: Brine Circuit And Fill And Bleed Unit Installation, Vmi
If cooling units are added to the system to a height above the heat pump, install a membrane expansion vessel in the system. ● Install a bleed port to the highest point in the system. ● The filling bottle needs to be taken out of use by closing the shut-off valve under the bottle, see the piping diagrams provided with the heat pump. - Page 19 Pos. Item Rearmost shut-off valve (brine circuit connection) Foremost shut-off valve (brine circuit connection) Foremost ball valve (filling connection) Expansion vessel port Rearmost ball valve (filling connection) T strainer Fill and bleed unit ver. 1 1. Check that the brine circuit has been appropriately connected. 2.
-
Page 20: Heating Circuit Connections
*You can use the heat pump’s brine circuit pump to speed up the bleed process. 1. Make sure that the motor protection circuit breaker (QM1) has been disabled. 2. Make sure that the submersible pump and the unit’s internal brine pump rotate in the same direction. -
Page 21: Domestic Hot Water Connections
1. Open the heating circuit fill valve. 2. Fill the circuit with water. 3. Bleed the storage tank (and, if necessary, the condenser and desuperheater line) and the heating circuit until all air has escaped. 4. Leave storage tank pressure to a level of 1–1.2 bar. ●... -
Page 22: Speed Control For Heating Circuit Pumps
Connecting DHW recirculation, VMi ver. 1 ● Make the connections as indicated in the piping diagrams supplied with the unit. Optional accessories ● Regulating valve ● Actuator for the regulating valve ● Water temperature regulation (feature) 2.6.8 Speed control for heating circuit pumps UPM3 auto ver. -
Page 23: Hvac Checklist
Constant LED1 LED2 LED3 LED4 LED5 pressure mode Green Green Yellow Yellow Yellow Constant pressure mode 1 Constant pressure mode 2 Constant pressure mode 3 Auto Adapt Constant LED1 LED2 LED3 LED4 LED5... -
Page 24: Supply Connections
Detach the control cabinet’s cover by unscrewing the four screws that secure the cover to the top of the cabinet. 2.7.1 Supply connections The heat pump’s power input connection is inside the heat pump’s internal control cabinet. Use a fixed connection. ●... -
Page 25: Room Temperature Sensor (Optional)
2.7.3 Room temperature sensor (optional) Install the room temperature sensor in a location where it measures the average temperature in the relevant heating zone as accurately as possible. ● Install the sensor in a central location in an open space (such as a hallway connecting several rooms or a stairway). -
Page 26: Electrical Installation Checklist
a. Select the current range. ● Switch 2 position = ON (when fuse rating < 50 A). ● Switch 1 and 3–6 position: OFF. b. Adjust the hysteresis, output percentage, and delay from screws in front of the relay (main fuses: 25 A). ●... -
Page 27: Commissioning
3 Commissioning 3.1 Preparations If the storage tank is not preheated before commissioning, the compressor will become damaged. The manufacturer shall not be liable for any such damage. Before commissioning, preheat the storage tank. 1. Ensure that the storage tank has been filled with water. 2. - Page 28 Problem Cause Solution The control system does not start Check the measured values and the pump. setpoints. Check that the fill and bleed Shut-off valves are in the fill valves are closed and the valve position. between them is open. ...
-
Page 29: Operation
4 Operation 4.1 The ÄssäControl system ÄssäControl display ver. 1 ÄssäControl is a logic-based control system that takes both the outdoor temperature as well as ambient indoor conditions into consideration. The system’s controller regulates the heating system’s flow temperature based on the outdoor temperature using a heating curve consisting of seven points. -
Page 30: Changing The Language
● To toggle between the two pages, tap on the arrow button in the bottom right corner. ● To access a quick function, tap on the function’s button. ● To change the date and time displayed in the top section of the screen, tap and hold the date or time. -
Page 31: Room Temperature Change With Room Temperature Measurement Active
Both the original heating curve and the adjusted curve will be displayed in the Heating curves view. To return room temperature to its original level, set the value to 0 °C. 4.4.2 Room temperature change with room temperature measurement active If an optional room temperature sensor has been installed and activated, the current room temperature and the target value for room temperature will be displayed in the Room temperature change view. -
Page 32: At Home And Away
Hot water intensification ver. 1 1. Select how long domestic hot water production will be boosted using the plus and minus buttons (optional). 2. Activate the boost function by pressing the MAX button. 3. When increased hot water production is no longer needed, press the ECO button. This step is not necessary, if the timer function in the first step is used. -
Page 33: Timers
At home and away settings ver. 1 2. In the Room temperature change field, enter the amount with which the temperature will be changed. The adjustment range for the temperature values in this view is –10...+10 °C. A typical value for each is –5 °C. 3. -
Page 34: Measurements
Heating circuit timer ver. 1 Finally, the Timer view appears. Timer view ver. 1 2. To schedule a temperature change for a weekday, specify a start time and end time for the change as well as the amount with which the temperature will be changed (in °C). -
Page 35: Heating Curves
The left column shows the current measured values, and the right column the corresponding settings. Resistor runtimes are run times for the electric immersion heater’s different power stages. Use the arrow buttons at the bottom of the screen to navigate between the different pages in the view. -
Page 36: Boiler Settings: Storage Tank Settings
Heating curve ver. 1 The setpoint values correspond to heating water temperatures and can be changed by the user. Adjusted values are displayed, if the heating water temperature is being adjusted by a function in the system, such as the Home and Away function or a timer. Factory defaults are suitable for use with floor heating. - Page 37 Boiler settings ver. 1 There are separate setpoints for the upper and lower section of the storage tank. The first column in the view shows the setpoint values. The second column shows temperature values that have been adjusted by a function in the system, such as the Home and Away function.
-
Page 38: Accessories
Limiting domestic hot water temperature In the winter season, the temperature in the lower section of the storage tank is determined by the flow temperature (flow to heating circuits). As outdoor and indoor temperatures are lower, the compressor may run for long periods of time. Consequently, the water in the upper section of the tank can become scalding hot. -
Page 39: Menu Functions
Available accessories Accessory More information Heating circuit 2 Heating curves, Timers Heating circuit 3 Heating curves, Timers Hot water temperature limiter (Heating curves), Storage tank settings Room temperature measurement Room temperature change with room temperature measurement active Free cooling Other settings 4.5 Menu functions Menu functions provide access to views and settings that are useful during commissioning, maintenance, and troubleshooting. -
Page 40: Heating Circuit Min And Max Temperature
Other settings ver. 1 Button Function Select language Language selection External heat source control Control options for optional electric immersion heaters HC min and max temperature Minimum and maximum temperature limits for heating circuits Backup device settings Settings for the electric immersion heater used for backup heating during a compressor fault Screen settings Changing screen brightness, selecting the screen shutoff delay... -
Page 41: Backup Device Settings: Options For Backup Heater
Heating circuit setpoints Setpoint Description Adjustment range Factory setting HC1...HC3 max Maximum flow temperature for heating 0–90 °C 60 °C temperature circuit 1...3 Minimum flow temperature for heating HC1...3 min temperature 0–90 °C 5 °C circuit 1...3 4.6.2 Backup device settings: options for backup heater These options apply only to configurations where the electric immersion heater is not used in parallel with the heat pump. -
Page 42: Magna Geo Control: Brine Circuit Pump Settings
Summer functions ver. 1 1. To activate the summer function, check the Summer Function checkbox. 2. Check the checkboxes for the heating circuit pumps that will not be used in the summer. This will allow you to leave the circulation pumps on where they are needed (in a heating circuit reserved for wet areas, for example). - Page 43 If the system includes an optional room temperature sensor, the system will automatically adjust room temperature to the desired level. If there is no room temperature sensor, the system will always run at full capacity. Free cooling is an energy-efficient and economical method for cooling spaces, since electricity is required only for running the circulation pump and cooling unit fans.
- Page 44 In normal operation, the system will keep the temperature in the brine used for cooling one degree above the dew point. The purpose of this function is to prevent condensate from accumulating in any cooling units connected. ● To disable this function, check the Manual checkbox and enter a specific brine temperature value.
-
Page 45: Maintenance
5 Maintenance 5.1 Maintenance and care Oilon and Lämpöässä heat pumps are highly reliable and easy to maintain. If the system has been installed with care and in accordance with the instructions provided, there is usually no need for maintenance. - Page 46 Problem Cause Solution The mains power connection has Contact an electrician. an incorrect phase sequence. The compressor does not start, The mains power connection has and the display reads “Incorrect Contact an electrician. an incorrect phase sequence. phase sequence”. Test the brine circuit pump by The low pressure switch has running it manually from the tripped.
-
Page 47: Alarms
Problem Cause Solution In summer, the flow temperature No action required. sensor reading is higher than the value provided by the heating curve. This is caused by a temperature increase in the heating circuit. The demand for heating is high No action required. -
Page 48: Ässäcontrol Maintenance Functions
5.4 ÄssäControl maintenance functions Only certified technicians who have received the appropriate training for installing Oilon and Lämpöässä heat pumps may use the heat pump’s maintenance functions. The heat pump’s maintenance menu is protected by a password. -
Page 49: Input And Output States
Digital outputs manual control ver. 1 Analog outputs manual control ver. 1 5.4.2 Input and output states The digital inputs and outputs as well as their functions are described in the heat pump’s electrical diagrams. Use the Input and output states views to view the inputs’ and outputs’... - Page 50 Digital input Digital input Compressor 1 overheat protection ID10 Low pressure alarm, circuit 1 Not in use ID11 High pressure alarm, circuit 1 Brine circuit 1 on ID12 Compressor 1 on Not in use ID13 Not in use Not in use ID14 Soft starter Not in use...
-
Page 51: Running Information
Analog input Analog input Hot gas 1 Heating circuit 1 temperature Not in use Heating circuit 2 temperature Storage tank upper section Heating circuit 3 or DHW temperature Storage tank lower section Not in use Outdoor temperature Brine circuit temperature Analog outputs Analog output states ver. -
Page 52: Position Valve Settings: Settings For Control Valves
5.4.5 Position valve settings: settings for control valves This view allows you to configure the settings for control valves associated with heating circuits and the domestic hot water temperature limiter accessory. Each of these has two different settings views. Position valve settings ver. 1 If the temperature in the lower section of the storage tank is lower than heating circuit temperature, the storage tank’s temperature will be automatically increased to heating circuit temperature plus an offset (Boiler temperature deviation from heating curve). -
Page 53: Partial / Full Power: Switching Between Monovalent And Bivalent Operation
Setting Description Example Inverse control Changes the control direction of OFF position: when the voltage is 0 V, the the control valve control valve is all the way in the right position. ON position: when the voltage is 0 V, the control valve is all the way in the left position. Band The deviation from target If the band is 140 °C and the target temperature... -
Page 54: External Alarm
5.4.8 External alarm This view is used to configure the settings for an external alarm signal that can be connected to the heat pump. External alarm ver. 1 The Level setting determines how the heat pump will respond to an external alarm signal. -
Page 55: Boiler Maximum Limits
● Factory default: 35% 5.4.11 Boiler maximum limits This view allows you to set the minimum and maximum temperature setpoint for the lower section of the storage tank. 5.4.12 Cooling (optional) The cooling system has three control modes: Room temperature, External, and Manual. -
Page 56: Return Factory Settings: Resetting The Heat Pump
Cooling – Threeway valve This view allows you to configure the control options for the 3-way valve used in free cooling. Cooling - Threeway valve ver. 1 5.4.13 Return factory settings: resetting the heat pump This view allows you to reset the heat pump’s settings to factory defaults as well as browse through the heat pump’s alarm history. -
Page 57: Technical Data
6 Technical data 6.1 Technical data The performance between different units may vary. This variation is due to a wide number of factors, such as the properties of the fluids used in the circuits, fouling of the heat transfer surfaces in the condenser and evaporator circuit, flow rates, individual differences between compressors (standard EN 12900) as well as refrigerant circuit charge and adjustments made to the refrigerant circuit during installation. -
Page 58: Heat Pump Dimensions
VMi 6–17 Heat pump VMi 6 VMi 9 VMi 11 VMi 14 VMi 17 Weight Compressor type Scroll Refrigerant R407C Refrigerant charge 1400 1900 2000 2500 2600 Compressor oil Storage tank volume Max. storage tank pressure Constant Condenser pump speed control curve Constant curve mode 2 Constant curve mode 3... - Page 59 Dimensional drawings, VSi 10VS14_2 VSI 1 ver. 1 10VS14_2 VSI 2 ver. 1 M8011 2204EN 57 (70)
- Page 60 Dimensional drawings, VMi 10VMI141_2 VMI 1 ver. 1 10VMI141_2 VMI 2 ver. 1 58 (70) M8011 2204EN...
-
Page 61: Electrical Data
6.3 Electrical data Power connection, VSi 6–14 Heat pump VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Mains connection 400 V 3~ 50 Hz Starting current Operating current at 2.68/ 3.28/ 4.33/ 4.92/ 6.81/ +35/+55 °C 3.25 4.18 5.52 6.41 8.10 Supply cable size 5 x 2.5*... -
Page 62: Performance Data
6.4 Performance data Capacity data, VSi 6–14 Heat pump VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Heating capacity, heating 6.14 8.44 10.44 11.84 15.04 system temperature 35 °C* Heating capacity, heating 5.50 7.75 9.82 10.83 14.02 system temperature 55 °C* Cooling capacity, heating 5.09 6.91... - Page 63 Energy efficiency data, VSi 6–14 Heat pump VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 COP, heating system at 35 °C* 5.00 4.69 4.84 4.77 4.75 COP, heating system at 55 °C* 3.19 3.30 3.17 3.14 3.25 SCOP, heating system at 35 °C** 5.14 5.24 5.13...
-
Page 64: Brine Circuits
Seasonal performance factor, VSi 6–14 Heat pump VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Domestic hot water 4.02 3.77 3.89 3.83 3.81 0/35 5.00 4.69 4.84 4.77 4.75 spaces 0/45 4.02 3.77 3.89 3.83 3.81 spaces Space heating 0/55 3.39 3.18... - Page 65 Pump data, VMi 6–17 Heat pump VMi 6 VMi 9 VMi 11 VMi 14 VMi 17 Pump’s energy class A (variable frequency drive) Pump’s nominal input power 5–89 10–170 Pump speed, factory setting Nominal flow, ΔT=3K* 0.64 0.79 0.94 1.18 1.34 Maximum allowed external pressure loss, ΔT=3K*...
-
Page 66: Heating Circuits
6.6 Heating circuits Heating circuit or circuits, VSi Heat pump VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Pump’s energy class A (variable frequency drive) Pump’s nominal input power 5–53 Floor heating, ΔT=5K Nominal flow 0.29 0.40 0.50 0.56 0.72 Maximum allowed external pressure loss... - Page 67 Heat pump model VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Total rated heat output of heat pump and supplementary heater In colder climate conditions In warmer climate conditions Annual space heating energy consumption In colder climate conditions kWh/a 3539 4786...
- Page 68 Declared heating capacity and coefficient of performance at an indoor temperature of 20 °C and outdoor temperature of T , space heating Heat pump model VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Average climate = –7 °C 5.6/ 7.8/ 9.9/...
-
Page 69: Eu Product Data, Vmi
Seasonal power consumption, space heating Heat pump model VSi 6 VSi 8 VSi 10 VSi 12 VSi 14 Average QHE/A kWh/a 3041 4116 5296 5972 7453 Warmer QHE/W kWh/a 3539 4786 6181 6922 8659 Colder QHE/C kWh/a 1994 2695 3418 3907 4833 Power consumption in modes other than active mode... - Page 70 Supplier’s model identifier or trademark VMi 6 VMi 9 VMi 11 VMi 14 VMi 17 Seasonal space heating energy efficiency Seasonal DHW heating energy efficiency Sound power level, indoors Heat pump model VMi 6 VMi 9 VMi 11 VMi 14 VMi 17 Total rated heat output of heat pump and supplementary heater In colder climate conditions...
- Page 71 Seasonal coefficient of performance, space heating Heat pump model VMi 6 VMi 9 VMi 11 VMi 14 VMi 17 Average climate conditions SCOP/A Colder climate conditions SCOP/W Warmer climate conditions SCOP/C Declared heating capacity and coefficient of performance at an indoor temperature of 20 °C and outdoor temperature of T , space heating Heat pump model...
- Page 72 Operating limit temperatures, space heating Heat pump model VMi 6 VMi 9 VMi 11 VMi 14 VMi 17 Average °C –10 –10 Warmer °C –22 –22 Colder °C Seasonal power consumption, space heating Heat pump model VMi 6 VMi 9 VMi 11 VMi 14 VMi 17...
- Page 74 Contact information of Oilon dealer: OILON GROUP P.O. Box 5 FI-15801 LAHTI FINLAND Tel: +358 3 85 761 Fax: +358 3 857 6239 Email: info@oilon.com Date of installation: www.oilon.com...
