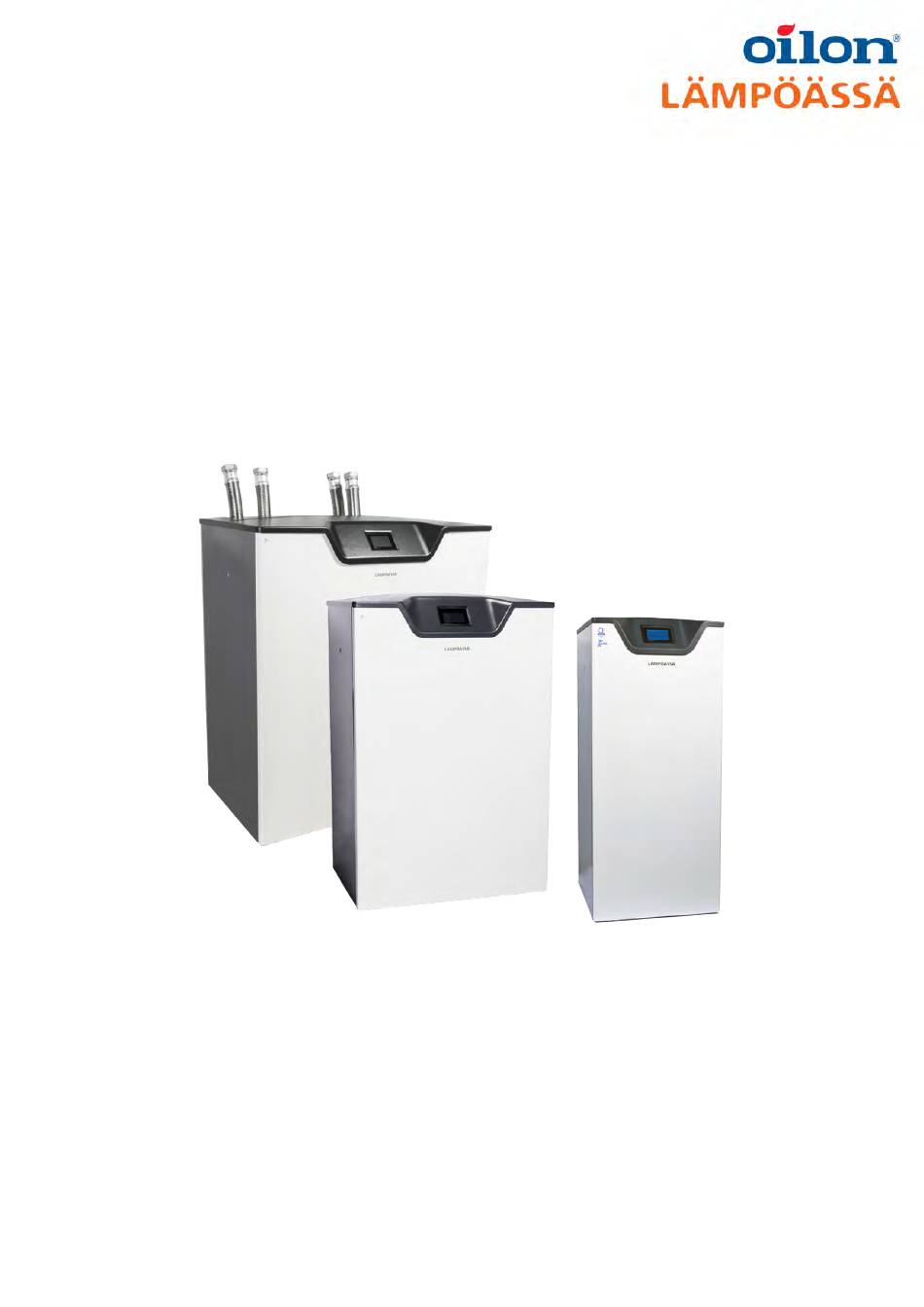

- Page 1 ESi 6-17, EMi 22-43, ELi 60-90 ÄssäControl Installation and operation manual Installation and operation manual ESi 6-17, EMi 22-43, ELi 60-90 ÄssäControl M8010 2204EN 25 January 2022...
-
Page 3: Table Of Contents
Contents Introduction Safety notice and warnings................ 3 Transportation..................... 5 Product description..................5 System structure and operation..............6 Optional accessories...................9 Installation Before installation..................11 Bivalent operation: use with supplementary heating........ 11 Installation site requirements..............11 Removing the packaging and inspecting the contents......12 Removing transportation supports............ - Page 4 4.4.4 At home and Away................... 30 4.4.5 Timers......................31 4.4.6 Measurements...................32 4.4.7 Heating curves..................33 4.4.8 Boiler settings: storage tank settings............34 4.4.9 Accessories....................36 Menu functions..................37 Menu functions: Other settings..............37 4.6.1 Heating circuit min and max temperature..........38 4.6.2 Backup device settings: options for backup heater........39 4.6.3 Partial power settings................
-
Page 5: Introduction
1 Introduction 1.1 Safety notice and warnings Read these instructions carefully before installation, commissioning, operation, or maintenance of the device. The given instructions must be followed. Throughout this manual, the following three symbols are used to point out very important information: Be careful. - Page 6 The manufacturer shall not be liable for any defects in the equipment resulting from improper installation or any costs arising thereof. Only certified technicians who have received the appropriate training for installing Oilon and Lämpöässä heat pumps may use the heat pump’s maintenance functions. 4 (75)
-
Page 7: Transportation
1.2 Transportation During lifting, do not walk or work under the heat pump or any other suspended load. Transport the heat pump in an upright position. ● If the heat pump needs to be tilted to pass through a doorway, do not tilt the unit beyond 45°. -
Page 8: System Structure And Operation
1.4 System structure and operation Ground source heating system Ground source heat pump system ver. 1 Principle drawing of a ground source heating system. 1: brine circuit (horizontal ground loop, borehole or lake/pond system); 2: ground source heat pump; 3: heating circuits (radiator heating or floor heating); 4: domestic hot water heating; 5: passive cooling (optional). - Page 9 increases by a few degrees. The brine is then pumped into a heat exchanger inside the heat pump: the evaporator. In the evaporator, thermal energy is transferred from the brine to low-pressure refrigerant, evaporating the refrigerant. In vertical systems, a deep well is bored into the bedrock. In horizontal systems, an extensive coil of plastic pipe (PEM 40/10) is buried to a depth of 1–1.2 meters or more or submerged in a body of water (minimum depth: 3 meters).
- Page 10 Heat pump Storage tank, 2 sections Pos. Item Evaporator Compressor Desuperheater Condenser Expansion valve Upper storage tank section Lower storage tank section Domestic hot water coils Domestic cold water inlet Domestic hot water outlet Heat pump and storage tank with two sections ver. 1 Heat pump Storage tank, 1 section Pos.
-
Page 11: Optional Accessories
in the section is regulated based on a heating curve. In normal heating conditions, the temperature in the section depends on the current need for heating (‘floating condensing’ operation). Heat distribution can be arranged using water circulation (floor heating or hot water radiators) or through air heating. - Page 12 ÄssäSolar solar collector ÄssäSolar is a solar collector that can be connected to almost any E series ground source heat pump. Solar heating is an environmentally friendly supplementary energy source for space heating and domestic hot water heating. ÄssäSolar utilizes energy extracted from solar radiation, resulting in more economical and environmentally friendly energy production.
-
Page 13: Installation
2 Installation 2.1 Before installation The manufacturer shall not be liable for any defects in the equipment resulting from improper installation or any costs arising thereof. Any pipe installation associated with the heat pump may be performed by qualified and trained personnel only. Check the following before installation: 1. -
Page 14: Removing The Packaging And Inspecting The Contents
The unit’s installation site should have a floor drain. The site’s floor should be inclined so that any runoff from the unit leads towards the drain. Place the unit on a stable, steady base that can carry the entire weight of the heat pump and a full storage tank, see the tank volume in the technical data. -
Page 15: Removing Transportation Supports
Accessory included in delivery Valve actuator 4-way valve (if the tank has two sections separated with a baffle) or 3-way valve (if the storage tank has only one section) Brine circuit pump Outdoor temperature sensor Flow temperature sensor Storage tank temperature sensors (2 pcs.) Adjustable feet (4 pcs.) -
Page 16: Hvac Installation
1. Screw the adjustable feet (in the accessory 2. Unscrew the fastening screws from the wooden package) to the bottom of the heat pump. transportation supports. 3. Finish by lifting the heat pump off of the transportation supports with a pallet jack or similar machine. -
Page 17: Brine Circuit And Fill And Bleed Unit Installation
Connections, EMi Pos. Connection Thread Flow from 1 1/2" F condenser Return to condenser 1 1/2" F Flow from 3/4" F desuperheater Return to 3/4" F desuperheater From evaporator to 2" F brine circuit From brine circuit to 2" F evaporator Connections, ELi Pos. - Page 18 ● Mixing container, 60 liters ● Submersible pump with filter, pump head approximately 30 m ● Brine solution (water/ethanol mixture, 1:1, frost resistance: –16 °C ● Reinforced hose, 1" (2 pcs.), length approximately 3 m ● Connector, 3/4", female (for fill and bleed unit, 2 pcs, ESi only) Before starting the process, check that the brine circuit has been appropriately connected.
-
Page 19: Connecting The Heat Pump To A Storage Tank
Note that if the valves are open, brine will be pushed out of the circuit. 18. Finish by making sure that both of the shut-off valves (1 and 2) are open. *You can use the heat pump’s brine circuit pump to speed up the bleed process. 1. -
Page 20: Filling And Bleeding The Storage Tank And The Heating Circuits
Renovated buildings Flush the building’s heating circuits thoroughly before connecting the ground source heat pump. It is advisable to install a T strainer in each heating circuit. 2.6.5 Filling and bleeding the storage tank and the heating circuits Keep the storage tank pressure below 1.5 bar throughout the filling process. -
Page 21: Speed Control For Heating Circuit Pumps
2.6.7 Speed control for heating circuit pumps UPM3 auto ver. 1 The heating circuit pumps for an EMi or ELi heat pump need to be selected based on the characteristics of the property’s heating system. Adjust the pumps in accordance with the pump manufacturer’s instructions. -
Page 22: Hvac Checklist
Constant LED1 LED2 LED3 LED4 LED5 curve mode Green Green Yellow Yellow Yellow Constant curve mode 1 Constant curve mode 2 Constant curve mode 3 Changing the operating mode 1. Press and hold the button for more than 2 seconds. 2. -
Page 23: Supply Connections
2. Detach the front panel by removing its two fastening screws and sliding the panel upwards. 3. Detach the control cabinet’s cover by unscrewing the four screws that secure the cover to the top of the cabinet. 2.7.1 Supply connections The heat pump’s power input connection is inside the heat pump’s internal control cabinet. -
Page 24: Outdoor Temperature Sensor
Storage tank sensors in tanks with one section Install both temperature sensors in the upper section of the tank. ● In the heat pump's settings, use the same temperature setpoints for both sensors. 2.7.3 Outdoor temperature sensor Install the outdoor sensor in a location where it measures the ambient conditions as accurately as possible. -
Page 25: Load Guard
2.7.5 Load guard When the heat pump has been set up for parallel use with an electric immersion heater, the property’s distribution board needs to be equipped with priority relays. The purpose of these relays is to step down the output of the heat pump’s electric immersion heater when the alternating current drawn through the property’s main fuses is close to the fuses’... -
Page 26: Electrical Installation Checklist
2.7.6 Electrical installation checklist Check the following: 1. The control cabinet’s supply input connection has the correct phase sequence. 2. The main fuse has a sufficient rating. 3. The ground source heat pump’s fuses have the correct rating and are of the right type (slow-blow, C curve). -
Page 27: Commissioning
3 Commissioning 3.1 Preparations If the storage tank is not preheated before commissioning, the compressor will become damaged. The manufacturer shall not be liable for any such damage. Before commissioning, preheat the storage tank. 1. Ensure that the storage tank has been filled with water. 2. - Page 28 Problem Cause Solution The control system does not start Check the measured values and the pump. setpoints. Check that the fill and bleed Shut-off valves are in the fill valves are closed and the valve position. between them is open. The plugs for the brine pump haven’t connected to the control or Make the necessary connections.
-
Page 29: Operation
4 Operation 4.1 The ÄssäControl system ÄssäControl display ver. 1 ÄssäControl is a logic-based control system that takes both the outdoor temperature as well as ambient indoor conditions into consideration. The system’s controller regulates the heating system’s flow temperature based on the outdoor temperature using a heating curve consisting of seven points. -
Page 30: Changing The Language
● To toggle between the two pages, tap on the arrow button in the bottom right corner. ● To access a quick function, tap on the function’s button. ● To change the date and time displayed in the top section of the screen, tap and hold the date or time. -
Page 31: Room Temperature Change With Room Temperature Measurement Active
Both the original heating curve and the adjusted curve will be displayed in the Heating curves view. To return room temperature to its original level, set the value to 0 °C. 4.4.2 Room temperature change with room temperature measurement active If an optional room temperature sensor has been installed and activated, the current room temperature and the target value for room temperature will be displayed in the Room temperature change view. -
Page 32: At Home And Away
Hot water intensification ver. 1 1. Select how long domestic hot water production will be boosted using the plus and minus buttons (optional). 2. Activate the boost function by pressing the MAX button. 3. When increased hot water production is no longer needed, press the ECO button. This step is not necessary, if the timer function in the first step is used. -
Page 33: Timers
At home and away settings ver. 1 2. In the Room temperature change field, enter the amount with which the temperature will be changed. The adjustment range for the temperature values in this view is –10...+10 °C. A typical value for each is –5 °C. 3. -
Page 34: Measurements
Heating circuit timer ver. 1 Finally, the Timer view appears. Timer view ver. 1 2. To schedule a temperature change for a weekday, specify a start time and end time for the change as well as the amount with which the temperature will be changed (in °C). -
Page 35: Heating Curves
The left column shows the current measured values, and the right column the corresponding settings. Resistor runtimes are run times for the electric immersion heater’s different power stages. Use the arrow buttons at the bottom of the screen to navigate between the different pages in the view. -
Page 36: Boiler Settings: Storage Tank Settings
Heating curve ver. 1 The setpoint values correspond to heating water temperatures and can be changed by the user. Adjusted values are displayed, if the heating water temperature is being adjusted by a function in the system, such as the Home and Away function or a timer. Factory defaults are suitable for use with floor heating. - Page 37 Boiler settings ver. 1 There are separate setpoints for the upper and lower section of the storage tank. The first column in the view shows the setpoint values. The second column shows temperature values that have been adjusted by a function in the system, such as the Home and Away function.
-
Page 38: Accessories
Limiting domestic hot water temperature In the winter season, the temperature in the lower section of the storage tank is determined by the flow temperature (flow to heating circuits). As outdoor and indoor temperatures are lower, the compressor may run for long periods of time. Consequently, the water in the upper section of the tank can become scalding hot. -
Page 39: Menu Functions
Available accessories Accessory More information Heating circuit 2 Heating curves, Timers Heating circuit 3 Heating curves, Timers Hot water temperature limiter (Heating curves), Storage tank settings Room temperature measurement Room temperature change with room temperature measurement active External heat source control Other settings Free cooling Other settings... -
Page 40: Heating Circuit Min And Max Temperature
Other settings ver. 1 Button Function Select language Language selection External heat source control Control options for optional electric immersion heaters HC min and max temperature Minimum and maximum temperature limits for heating circuits Backup device settings Settings for the electric immersion heater used for backup heating during a compressor fault Screen settings Changing screen brightness, selecting the screen shutoff delay... -
Page 41: Backup Device Settings: Options For Backup Heater
Heating circuit setpoints Setpoint Description Adjustment range Factory setting HC1...HC3 max Maximum flow temperature for heating 0–90 °C 60 °C temperature circuit 1...3 Minimum flow temperature for heating HC1...3 min temperature 0–90 °C 5 °C circuit 1...3 4.6.2 Backup device settings: options for backup heater These options apply only to configurations where the electric immersion heater is not used in parallel with the heat pump. -
Page 42: Magna Geo Control: Brine Circuit Pump Settings
Summer functions ver. 1 1. To activate the summer function, check the Summer Function checkbox. 2. Check the checkboxes for the heating circuit pumps that will not be used in the summer. This will allow you to leave the circulation pumps on where they are needed (in a heating circuit reserved for wet areas, for example). -
Page 43: Compressor Rotation (Optional)
To access additional settings, tap on the cogwheel button. Available settings Setting Description Available options Factory default Extra heat resistor amount The number of 1–4 supplementary heaters Heating time before extra Delay before the first 10 min heat supplementary heater is switched on Time between extra heat The delay after the first... -
Page 44: Free Cooling
4.7.1 Free cooling An independently operating cooling system can be connected to the heat pump’s brine circuit. A circulation pump draws cool brine from the brine circuit and pumps it through a cooling circuit. As the brine passes through the circuit, heat is extracted from indoor air. After the cooling circuit, the brine is fed back into the brine circuit. -
Page 45: Flexible Cooling
Manual control Cooling - Manual ver. 1 In normal operation, the system will keep the temperature in the brine used for cooling one degree above the dew point. The purpose of this function is to prevent condensate from accumulating in any cooling units connected. ●... - Page 46 Passive cooling The cooling circuit is cooled down by transferring thermal energy to the brine circuit (see section Free cooling). If the cooling circuit temperature does not fall down to its setpoint within a predetermined period (Delay), the system switches over to Active cooling.
-
Page 47: Maintenance
5 Maintenance 5.1 Maintenance and care Oilon and Lämpöässä heat pumps are highly reliable and easy to maintain. If the system has been installed with care and in accordance with the instructions provided, there is usually no need for maintenance. - Page 48 Problem Cause Solution The mains power connection has Contact an electrician. an incorrect phase sequence. The compressor does not start, The mains power connection has and the display reads “Incorrect Contact an electrician. an incorrect phase sequence. phase sequence”. Test the brine circuit pump by The low pressure switch has running it manually from the tripped.
-
Page 49: Alarms
Problem Cause Solution In summer, the flow temperature No action required. sensor reading is higher than the value provided by the heating curve. This is caused by a temperature increase in the heating circuit. The demand for heating is high No action required. -
Page 50: Ässäcontrol Maintenance Functions
5.4 ÄssäControl maintenance functions Only certified technicians who have received the appropriate training for installing Oilon and Lämpöässä heat pumps may use the heat pump’s maintenance functions. The heat pump’s maintenance menu is protected by a password. -
Page 51: Input And Output States
Digital outputs manual control ver. 1 Analog outputs manual control ver. 1 5.4.2 Input and output states The digital inputs and outputs as well as their functions are described in the heat pump’s electrical diagrams. Use the Input and output states views to view the inputs’ and outputs’... - Page 52 Digital input Digital input Compressor 1 overheat protection ID10 Low pressure alarm, circuit 1 Not in use ID11 High pressure alarm, circuit 1 Brine circuit 1 on ID12 Compressor 1 on Not in use ID13 Not in use Not in use ID14 Soft starter Not in use...
-
Page 53: Running Information
Analog input Analog input Hot gas 1 Heating circuit 1 temperature Not in use Heating circuit 2 temperature Storage tank upper section Heating circuit 3 or DHW temperature Storage tank lower section Not in use Outdoor temperature Brine circuit temperature Analog outputs Analog output states ver. -
Page 54: Position Valve Settings: Settings For Control Valves
5.4.5 Position valve settings: settings for control valves This view allows you to configure the settings for control valves associated with heating circuits and the domestic hot water temperature limiter accessory. Each of these has two different settings views. Position valve settings ver. 1 If the temperature in the lower section of the storage tank is lower than heating circuit temperature, the storage tank’s temperature will be automatically increased to heating circuit temperature plus an offset (Boiler temperature deviation from heating curve). -
Page 55: Partial / Full Power: Switching Between Monovalent And Bivalent Operation
Setting Description Example Inverse control Changes the control direction of OFF position: when the voltage is 0 V, the the control valve control valve is all the way in the right position. ON position: when the voltage is 0 V, the control valve is all the way in the left position. Band The deviation from target If the band is 140 °C and the target temperature... -
Page 56: Temperature Gauges
Accessing adjustment settings for analog control 1. In the main view, tap on the menu button. 2. Select Other settings and Extra heat settings. 3. In the Extra heat settings view, tap on the cogwheel button. The Level sliders in the view each represent a separate power stage or heat source (such as an electric immersion heater or oil-fired boiler). -
Page 57: Soft Starter Alarms
5.4.10 Soft starter alarms This view allows you to enable and disable alarms for the soft starter. The available options are Soft starter and Phase guard. 5.4.11 Super heat circuit control: desuperheater control options This view allows you to change the desuperheater pump’s settings. Super heat circuit control ver. - Page 58 Cooling ver. 1 Each of the buttons in the top right corner opens a new view, see below. Cooling – Manual Manual operation is intended only for testing the system’s operation. The Cooling – Manual view allows you to change the system’s operating mode and bypass measured values.
-
Page 59: Return Factory Settings: Resetting The Heat Pump
Cooling - Threeway valve ver. 1 Cooling – Digital outputs (flexible cooling only) This view allows you to specify the digital outputs for each operating mode. Cooling - Digital outputs ver. 1 5.4.14 Return factory settings: resetting the heat pump This view allows you to reset the heat pump’s settings to factory defaults as well as browse through the heat pump’s alarm history. -
Page 60: Technical Data
6 Technical data 6.1 Technical data The performance between different units may vary. This variation is due to a wide number of factors, such as the properties of the fluids used in the circuits, fouling of the heat transfer surfaces in the condenser and evaporator circuit, flow rates, individual differences between compressors (standard EN 12900) as well as refrigerant circuit charge and adjustments made to the refrigerant circuit during installation. -
Page 61: Heat Pump Dimensions
6.2 Heat pump dimensions Legend Item Description Item Description Brine in Brine out DS WI Desuperheater water in DS WO Desuperheater water out Heating water in Heating water out All measurements in mm. See the dimensional drawings on the following pages. Dimensions Heat pump –... - Page 62 Dimensional drawings, ESi 10ESI14_2 ESI 1 ver. 1 10ESI14_2 ESI 2 ver. 1 60 (75) M8010 2204EN...
- Page 63 Dimensional drawings, EMi 10EMI28T_3 EMI ver. 1 M8010 2204EN 61 (75)
- Page 64 Dimensional drawings, ELi 10ELI60T_2 ELI ver. 1 62 (75) M8010 2204EN...
-
Page 65: Electrical Data
6.3 Electrical data Power connection, ESi 6–17 Heat pump ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 Mains connection 400 V 3~ 50 Hz Starting current Operating current at 3.28/ 4.33/ 50.4/ 6.84/ 7.45/ +35/+55 °C 4.18 5.52 6.29 8.17 9.24 Supply cable size 5 x 2.5*... -
Page 66: Performance Data
6.4 Performance data Capacity data, ESi 6–17 Heat pump ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 Heating capacity, heating 8.44 10.44 12.39 15.64 17.75 system temperature 35 °C* Heating capacity, heating 7.75 9.82 11.45 14.47 16.71 system temperature 55 °C* Cooling capacity, heating 6.91 8.49... - Page 67 Energy efficiency data, ESi 6–17 Heat pump ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 COP at 35 °C* 4.69 4.84 4.97 4.88 4.84 COP at 55 °C* 3.30 3.17 3.33 3.33 3.25 SCOP at 35 °C** 5.24 5.13 5.29 5.31...
-
Page 68: Brine Circuits
Seasonal performance factor, EMi 22–43, ELi 60 and ELi 90 Heat pump EMi 22 EMi 28 EMi 43 ELi 60 Eli 90 0/35 Domestic hot water 3.61 3.66 3.61 3.73 3.62 0/35 4.49 4.56 4.50 4.64 4.51 spaces 0/45 3.61 3.66 3.61 3.73... -
Page 69: Heating Circuits
Maximum length of brine circuit loop, ESi 6–17 Heat pump ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 Borehole, PEH, PN6 – – 1 brine circuit* Horizontal loop, – – – PEM, PN10 Borehole, PEH, PN6 – 1200 2 brine circuits* Horizontal loop, –... -
Page 70: Eu Product Data, Esi
Heat pump ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 Pump’s energy class A (variable frequency drive) Pump’s nominal input power 5–53 Floor heating, ΔT=5K Flow 0.40 0.50 0.59 0.74 0.70* Maximum allowed external pressure loss Radiator heating, T=10K Flow 0.18 0.23... - Page 71 Operation Space heating Average Colder Warmer Capacity control Fixed Design load, space heating Heat pump model ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 11.5 14.5 16.71 Average climate conditions designh 11.5 14.5 16.71 Colder climate conditions designh 11.5 14.5 16.71...
-
Page 72: Eu Product Data, Emi
Heat pump model ESi 6 ESi 9 ESi 11 ESi 14 ESi 17 = bivalent 7.8/ 9.8/ 11.5/ 14.5/ 16.7/ COPd 3.30 3.10 3.33 3.33 3.25 temperature = operating 7.8/ 9.8/ 11.5/ 14.5/ 16.7/ COPd 3.30 3.10 3.33 3.33 3.25 limit temperature Degradation coefficient, T = –7 °C... - Page 73 Heat pump model Total rated heat output of heat pump and supplementary heater In colder climate conditions In warmer climate conditions Annual space heating energy efficiency In colder climate conditions In warmer climate conditions Annual space heating energy consumption In colder climate conditions kWh/a 12896 17429...
- Page 74 Declared heating capacity and coefficient of performance at an indoor temperature of 20 °C and outdoor temperature of T , space heating Heat pump model Average climate = –7 °C kW/COPd 20.8/3.36 26.6/3.18 43.2/3.35 conditions = +2 °C kW/COPd 21.1/3.86 27.5/3.65 44.0/3.87 = +7 °C kW/COPd...
-
Page 75: Eu Product Data, Eli
Seasonal power consumption, space heating Heat pump model Average QHE/A kWh/a 11174 15097 22794 Warmer QHE/W kWh/a 12896 17429 26329 Colder QHE/C kWh/a 7407 9936 15037 Power consumption in modes other than active mode Off mode 0.017 Standby mode 0.017 Thermostat off mode 0.017 Cranckase heater mode... - Page 76 Heat pump model ELi 60 ELi 60P ELi 90 ELi 90P In average conditions In colder climate conditions In warmer climate conditions Operation Space heating Average Colder Warmer Capacity control Fixed Design load, space heating Heat pump model ELi 60 ELi 60P...
- Page 77 Heat pump model ELi 60 ELi 60P ELi 90 ELi 90P = +2°C 59.1/ 45.0/ COPd 4.10 4.10 = +7 °C 59.7/ 45.8/ COPd 4.47 4.47 = +12 °C 60.1/ 46.4/ COPd 4.73 4.73 = bivalent 58.1/ 42.8/...
