Summary of Contents for Johansson 9750

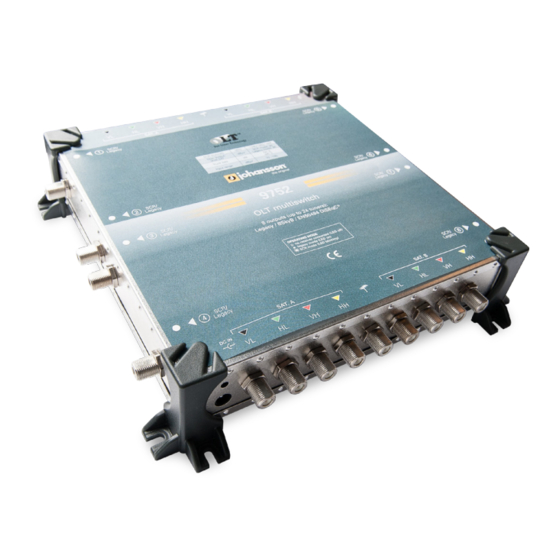

- Page 1 OLT Multiswitches manual 9750 9752...
- Page 2 Unitron can not be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. 12/12 © Unitron - Frankrijklaan 27 - B-8970 Poperinge - Belgium T +32 57 33 33 63 F +32 57 33 45 24 email sales@johansson.be www.johansson.be - www.unitrongroup.com...
-
Page 3: Table Of Contents
CONTENTS 1 INTRODUCTION safety instructions ........................accessories ..........................2 INSTALLATION OF THE HARDWARE ................3 IMPORTANT INFORMATION .................... 4 TECHNICAL SPECIFICATIONS ..................5 CONDITIONS OF WARRANTY .................. -
Page 4: Introduction
1 INTRODUCTION SAFETY INSTRUCTIONS Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: Do not expose the unit to rain or moisture. Install the unit in a dry location without infiltration or condensation of water. Do not expose it to dripping or splashing. - Page 5 To avoid any risk of electrical shocks: Connect apparatus only to socket with protective earth connection. The mains plug shall remain readily operable. Pull out power plug to make the different connections of cables. To avoid electrical shock, do not open the housing of adapter. Maintenance Only use a dry soft cloth to clean the cabinet.
-
Page 6: Accessories
ACCESSORIES Power Inserter » REF. 9930/9930UK For use with Quad LNB 9930 INPUTS FREQUENCY RANGE 5 - 2150 INSERTION LOSS < 1,5 ISOLATION BETWEEN PORTS > 35 RETURN LOSS > 10 CONTROL SIGNALS switchable : 13/18/13 + tone/18 + tone ADDED POWER SUPPLY ADAPTER 20V - 1A DIMENSIONS... -
Page 7: Installation Of The Hardware
2 INSTALLATION OF THE HARDWARE OPERATING MODE no receiver connected (LED off) legacy mode (LED on) SCR mode (LED blinking) Power adapter (ref. 9933/9933UK) Vertical Low SAT input 1 DC connection Horizontal Low SAT input 1 Vertical Low SAT output 1 Vertical High SAT input 1 Horizontal Low SAT output 1 Horizontal High SAT input 1... -
Page 8: Important Information
3 IMPORTANT INFORMATION When working with BskyB set-top boxes, be sure to use the OLT multiswitch in combination with the smart splitter (ref. 4603). This smart splitter avoids collisions between several set-top boxes. scr out legacy out scr out legacy out 9752 4603 4603... -
Page 9: Technical Specifications
4 TECHNICAL SPECIFICATIONS 9750 9752 1 x Terrestrial INPUTS 8 x Satellite (2 SAT positions) 4 outputs (up to 12 tuners) 8 outputs (up to 24 tuners) OUTPUTS Ter.: 5-790 (LTE protected) FREQUENCY SAT: 950-2150 1280/1382/1484 (Sky CH: 9/11/14) SCR CHANNELS... -
Page 10: Conditions Of Warranty
5 CONDITIONS OF WARRANTY PERIOD OF WARRANTY Unitron N.V. warrants the product as being free from defects in material and workmanship for a period of 24 months starting from the date of production indicated on it. See note below. If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product. - Page 12 UNITRON NV Frankrijklaan 27 B-8970 Poperinge Belgium T +32 57 33 33 63 F +32 57 33 45 24 sales@johansson.be www.johansson.be...
