  • Page 1 user Sat>IP manual 9830...
  • Page 2 Unitron can not be held liable for any damages resulting from the use of this product. Specifications are subject to change without notice. 12/13 © Unitron - Frankrijklaan 27 - B-8970 Poperinge - Belgium T +32 57 33 33 63 F +32 57 33 45 24 email sales@johansson.be www.johansson.be - www.unitrongroup.com...

  • Page 3: Table Of Contents

    CONTENTS 1 INTRODUCTION safety instructions ........................product description ......................... 2 INSTALLATION OF THE HARDWARE ................mounting ........................... hardware installation ......................accessories ..........................3 HOW TO START UP? ......................4 TECHNICAL SPECIFICATIONS ..................5 CONDITIONS OF WARRANTY ..................

  • Page 4: Introduction

    1 INTRODUCTION SAFETY INSTRUCTIONS Read these instructions carefully before connecting the unit To prevent fire, short circuit or shock hazard: Do not expose the unit to rain or moisture. Install the unit in a dry location without infiltration or condensation of water. Do not expose it to dripping or splashing.
  • Page 5 To avoid any risk of electrical shocks: Connect the unit only to socket with protective earth connection. The mains plug shall remain readily operable. Pull out power plug to make the different connections of cables. To avoid electrical shock, do not open the housing of the adapter. Maintenance Only use a dry soft cloth to clean the cabinet.

  • Page 6: Product Description

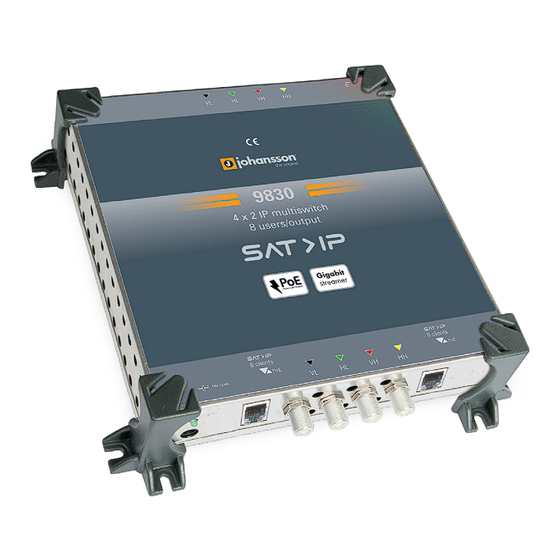

    PRODUCT DESCRIPTION • SAT>IP enables you to watch satellite TV on your smart phones, tablets, PC and also on your standard TV as well as smart TV. • 4 LNB inputs for Quattro or Quad LNB. • 4 Trunk outputs for cascading with any type of Multiswitch, as well in new or exist- ing installations.

  • Page 7: Installation Of The Hardware

    2 INSTALLATION OF THE HARDWARE MOUNTING...

  • Page 8: Hardware Installation

    HARDWARE INSTALLATION The example is based on two homes with each 8 independent users. The left side is an example with a one Gigabits router without power over Ethernet (PoE). In this case an extra PoE inserter is needed: minimum class 3.
  • Page 9 The right side is with a one gigabit router with power over Ethernet (PoE). Minimum requirements are 100 Megabit. 1Gigabit router is preferred if using HD channels. For the Wi-Fi access point it is preferred to have 300 Megabit/s.

  • Page 10: Accessories

    ACCESSORIES If the LNB is not already powered: (optional) a. Johansson 9933 for powering a Quattro LNB b. Johansson 9930 for powering a Quad LNB 2 x Ethernet cable: min Cat 5 (Maximum length 100m) One or two times: a. Power over Ethernet switch (1Gbps) + an access point (WLAN 300Mbps) b.

  • Page 11: How To Start Up

    3 HOW TO START UP? • The 9830 obtains its IP address automatically. • Check your WI-FI connection. • Download the desired app http://www.satip.info/products Go to SAT>IP CLIENTS. It will detect the SAT>IP server automatically. The 9830 is capable of streaming HD on PC, Smart TV and STB. Tablets and smart phones will not support HD due to decoding and bandwidth limitations.

  • Page 12: Technical Specifications

    4 TECHNICAL SPECIFICATIONS 9830 SAT INPUTS/OUTPUTS 950-2150 FREQUENCY 2 x RJ45 100/1000 Ethernet port OUTPUTS SAT>IP V1.2 compliant PROTOCOL 2 x 8 DVB-S(2) SATELLITE FRONTENDS USERS/OUTPUT DHCP/AUTO-IP ADDRESSING MAX. INPUT LEVEL dBµV MIN. INPUT LEVEL dBµV TRUNK LOSS >10 RETURN LOSS IN/OUT POE POWERED DEVICE PD class 3 (PD) CLASS...
  • Page 13 Power Inserter » REF. 9930/9930UK For use with Quad LNB 9930 INPUTS FREQUENCY RANGE 5 - 2150 INSERTION LOSS < 1,5 ISOLATION BETWEEN PORTS > 35 RETURN LOSS > 10 CONTROL SIGNALS switchable : 13/18/13 + tone/18 + tone ADDED POWER SUPPLY ADAPTER 20V - 1A DIMENSIONS 158 x 102 x 51...

  • Page 14: Conditions Of Warranty

    5 CONDITIONS OF WARRANTY PERIOD OF WARRANTY Unitron N.V. warrants the product as being free from defects in material and workmanship for a period of 24 months starting from the date of production indicated on it. See note below. If during this period of warranty the product proves defective, under normal use, due to defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the product.
  • Page 16 UNITRON NV Frankrijklaan 27 B-8970 Poperinge Belgium T +32 57 33 33 63 F +32 57 33 45 24 sales@johansson.be www.johansson.be...
