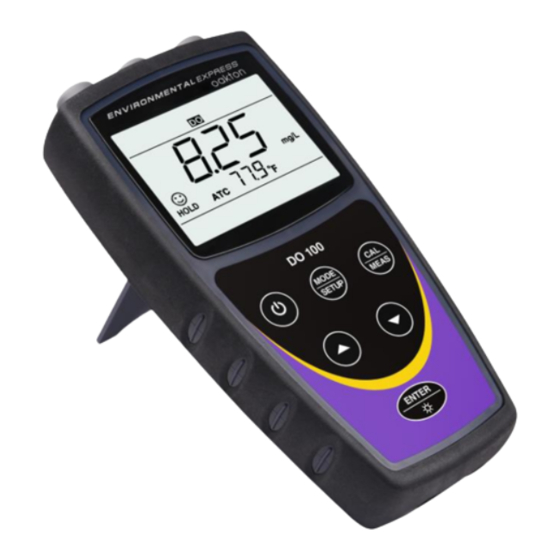

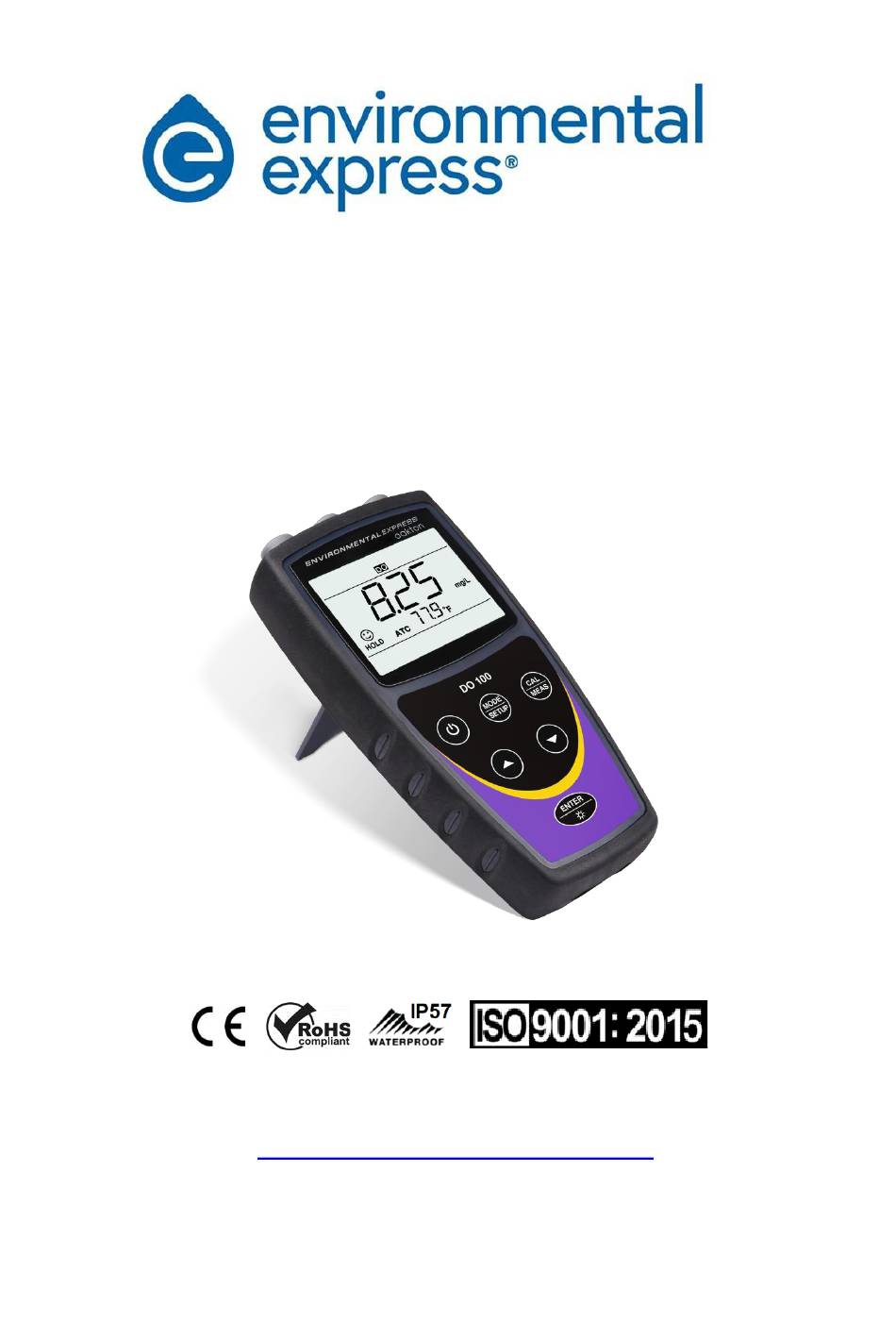

- Page 1 DO100 Portable DO Meter 35643-00, 35643-05 Kit Instruction Manual ENVIRONMENTAL EXPRESS www.environmentalexpress.com...
-
Page 2: Table Of Contents
Table of Contents Brief Introduction ------------------------------------------------------------------------------------------- Technical Specification -------------------------------------------------------------------------------------- Instrument Description ------------------------------------------------------------------------------------ 3.1 LCD display ---------------------------------------------------------------------------------------------------- 3.2 Keypad functions --------------------------------------------------------------------------------------------- 3.3 Display mode-------------------------------------------------------------------------------------------------- 3.4 Other functions ----------------------------------------------------------------------------------------------- Polarographic DO Electrode--------------------------------------------------------------------------------- 4.1 Probe Structure --------------------------------------------------------------------------------------------- 4.2 Probe maintenance ---------------------------------------------------------------------------------------- 4.3 Clean the salinity electrode -------------------------------------------------------------------------------- 4.4 Replace the membrane cap-------------------------------------------------------------------------------- Calibration and Measurement of Dissolved Oxygen---------------------------------------------- 5.1 Connect the DO electrode ------------------------------------------------------------------------------------... -
Page 3: Brief Introduction
1 Brief Introduction Thank you for purchasing Environmental Express Portable Dissolved Oxygen Meter. This meter is a perfect combination of the most advanced electronics technology, sensor technology, and software design, and is the most cost-effective portable electrochemical meter. In order to use and maintain the instrument properly, please read the manual thoroughly before use. -
Page 4: Instrument Description
Power AA batteries x3 (1.5V×3) IP rating IP57 dustproof and waterproof Other Meter: 91×190×33mm /352 g Dimension & weight Carrying case: 330×270×82mm/ 1.6 kg Paper box: 255×200×45mm/ 860 g 3 Instrument Description 3.1 LCD display ① Measurement reading ② Parameter mode icon ③... -
Page 5: Display Mode
Keypad Operations Descriptions ⚫ Press this key to turn on/off the meter Short press ⚫ Short press to select measuring unit: mg/L(ppm)→ % Short press ⚫ Long press to enter the main parameter setup menu. Long press ⚫ In the measurement mode, long press to enter calibration mode; ⚫... -
Page 6: Other Functions
3.4 Other functions 3.4.1 Automatic Power-off Select from parameter P4.5 to select automatic power-off (On-Off), select On to turn on automatic power- off, the meter will turn off automatically after 20 minutes of nonuse. Select Off to turn off automatic power-off. -
Page 7: Clean The Salinity Electrode
4.2 Storage of the DO electrode The surface of the sensitive membrane of the dissolved electrode should be kept moist to prevent the electrolyte at the cathode from drying out. There’s a sponge at the bottom of the calibration sleeve (see Diagram - 9), always keep it moist. -
Page 8: Do Calibration
calibration sleeve and then immersed in the measured water for about 10 minutes, then re-calibrate the meter. The electrode polarization and calibration must be performed every time when the instrument is turned on. 5.3 DO Calibration 5.3.1 Steps for DO calibration a) Press to turn on the meter, press to choose the units: mg/L (ppm) and %. -
Page 9: Measurement Of Water Samples
out the polishing paper from the accessories and polish the surface of the gold chip at cathode, wipe it with clean flannel or tissue paper, rinse the electrode with pure water and allow it to dry. Add some electrolyte into the membrane cap, screw it on tightly and then perform full saturation and zero oxygen calibration, follow the steps of 5.3.1 and 5.4.1. -
Page 10: Notes Of The Measurement
5.5.2 Measurement in field a) Measurement in flow water (water velocity>5cm/s): immerse the dissolved oxygen electrode into the water, the water surface should exceed the position of the temperature sensor. The direction of the electrode and the water flow is 45°~75°, stir gently for 3~5 minutes and then get the reading after the reading is stable. -
Page 11: Parameter Setting
6 Parameter Setting 6.1 Main menu of parameter setting Long press in measurement mode, the meter enters P4.0 mode, and then press change menu P4.0→P6.0. For details, please see Diagram – 11. P4.0: sub-menu of DO parameter setup; P6.0: basic parameter setup menu. Main menu of parameter setting Submenu of DO parameter setting P4.1 Resolution... -
Page 12: Sub-Menu Of Basic Parameter Setting
P4.3—Air pressure adjustment(60-120 kPa) 1. Press , 101.3 flashes, press to adjust air pressure value according to laboratory barometer, press to confirm. 2. Press to enter P4.4, or press to return. P4.4— DO unit(mg/L-ppm) 1. Press , mg/L flashes, press to select mg/L-ppm, press to confirm. -
Page 13: What's In The Kit
7 What’s in the Kit? DO100 Content Quantity 35643-05 35643-00 √ √ DO100 portable dissolved oxygen meter √ √ DO500 polarographic DO electrode √ √ DO501 DO inner solution (30mL) √ √ DO502 cathode polishing paper √ √ DO503 DO electrode membrane cap √... -
Page 14: Appendix - 1 Table Of Parameter Setting
Appendix – 1 Table of Parameter Setting Parameter setting Factory Mode Prompts Abbreviation Description items Default 0.01-0.1(mg/L, ppm) P4.1 Resolution 0.01 mg/L 0.1-1 ( % ) P4.2 Salinity calibration 0-45 ppt 0.01 P4.0 Air pressure P4.3 60-200 kPa 101.3 adjustment P4.4 DO unit mg/L-ppm... -
Page 15: Appendix - 4 Table Of Do Of Saturated Water At Different Temperatures
Appendix –4 Table of DO of Saturated Water at Different Temperatures Temp. Temp. Temp. Temp. °F/°C mg/L °F/°C mg/L °F/°C mg/L °F/°C mg/L 32.0/0 14.64 53.6/12.0 10.77 75.2/24.0 8.41 96.8/36.0 6.84 33.8/1.0 14.22 55.4/13.0 10.53 77.0/25.0 8.25 98.6/37.0 6.73 35.6/2.0 13.82 57.2/14.0 10.30... -
Page 16: Appendix -6 Table Of Do Of Saturated Water Under Different Barometric Pressure
Appendix –6 Table of DO of Saturated Water under Different Barometric Pressure Barometric pressure DO (mg/L) mmHg 15℃ 25℃ 35℃ 100.00 9.94 8.14 6.85 100.13 9.96 8.15 6.86 100.26 9.97 8.16 6.87 100.40 9.98 8.17 6.88 100.53 9.99 8.18 6.89 100.66 10.00 8.20... - Page 17 Environmental Express 2345A Charleston Regional Parkway Charleston, South Carolina 29492 Toll Free: 800-343-5319 Technical Support: 800-745-8218 Email: tech@environmentalexpress.com Website: www.environmentalexpress.com - 15 -...
