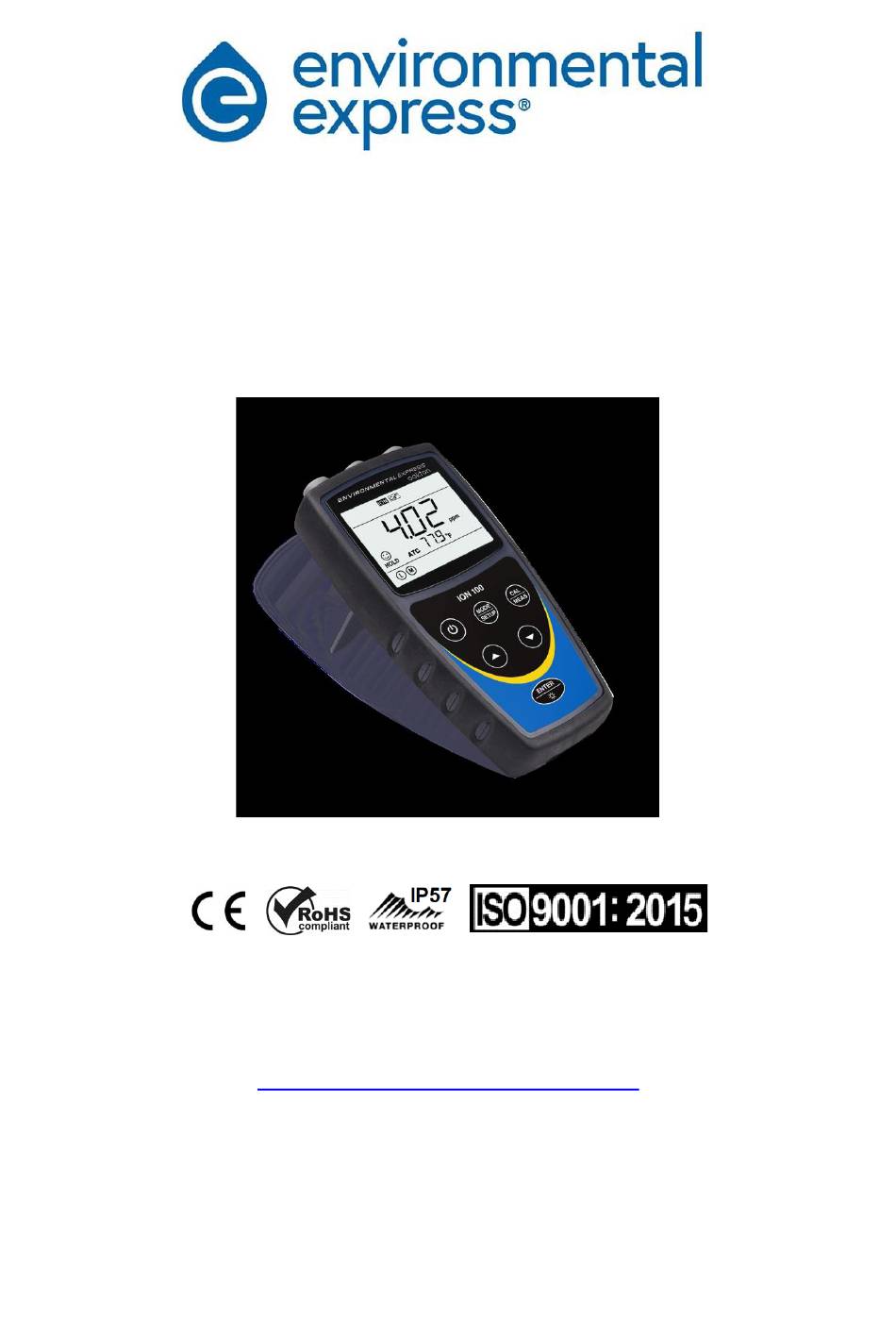

- Page 1 ION 100 Portable Ion Meter Instruction Manual 35613-65, -68 Environmental Express www.environmentalexpress.com...
-
Page 2: Table Of Contents
Table of Contents Brief Introduction ......................- 2 - Technical Specifications....................- 3 - Instrument Description ....................- 4 - LCD ......................... - 4 - Keypad functions ....................... - 4 - Meter socket ......................- 5 - Display mode ......................- 6 - Other functions ...................... -
Page 3: Brief Introduction
Warranty ........................- 22 - 1 BRIEF INTRODUCTION Thank you for purchasing Environmental Express Ion 100 Portable Ion Meter. This meter is a perfect combination of the most advanced electronics technology, sensor technology, and software design, and is the most cost-effective portable electrochemical meter. In order to use and maintain the instrument properly, please read the manual thoroughly before use. -
Page 4: Technical Specifications
2 TECHNICAL SPECIFICATIONS Technical Specification Range 0.00 ~ 14.00pH Resolution 0.01/0.1 pH Accuracy ±0.01 pH Temperature (0 to 100)˚ C (manual or automatic) compensation Calibration 1~3 points automatic 1.68, 4.00, 7.00, 10.01 and 12.45 pH (USA) Buffer series 1.68, 4.01, 6.86, 9.18 and 12.45 pH (NIST) Range ±1000mV Resolution... -
Page 5: Instrument Description
INSTRUMENT DESCRIPTION 3.1 LCD display Diagram - 1 ① Parameter mode icons ⑦ Temperature value and indicator icons ATC—automatic temperature compensation. ② Measurement reading ⑧ MTC—manual temperature compensation ③ Ion symbol ⑨ Calibration guide icon ④ Units of measurement ⑩ Automatic reading hold icon ⑤... -
Page 6: Meter Socket
Table -1 Keypad operations and descriptions Keypad Operations Descriptions ⚫ Press this key to turn on/off the meter Short press ⚫ Short press to select measuring parameter or unit： Short press → → → pX → mol/L → ppm (mg/L) Long press ⚫... -
Page 7: Display Mode
3.4 Display mode 3.4.1 Stable Reading Mode When the measurement value is almost stable, smiley icon appears on LCD, see Diagram - 4. If the smiley icon does not appear or flash, please do not get the reading value or conduct calibration until the measuring value is stable. -
Page 8: Ph Measurement
3.5.4 Battery The meter adopts 3x AA batteries. Please use LR6 alkaline battery to ensure the battery quality. Battery life > 200 hours (without backlight). When LCD displays icon, please replace with new batteries, see Diagram - 6. Diagram- 6 PH MEASUREMENT 4.1 pH electrode information 4.1.1 The meter connects to plastic combination pH electrode, with BNC connector. -
Page 9: Ph Measurement
4.2.2 Calibration mode The meter can adopt 1 to 3 points of calibration. The 1 point must be using 7.00 pH (or 6.86 pH) buffer solution, and then choose other buffers to do 2 point and 3 point. Please refer to Table-3 for details. -
Page 10: Sample Test
4.3.3 The 3 point calibration Repeat the steps as per Section 4.3.2, use pH10.01 buffer solution, and complete the 3 point calibration. The bottom left of LCD indicates 4.4 Sample test Rinse pH electrode in distilled or deionized water, allow it to dry, and submerge it in the sample solution. -
Page 11: Customized Calibration (Take 1.60Ph & 6.50Ph As Example)
4.5.7 Factory default setting The meter has a function to return to factory default setting, which can be set up in P1.3. All calibration data will be deleted, and the meter will restore to the theory value (zero electrical potential of pH is 7.00, the slope is 100%). Some functions restore to the default value (refer to Appendix - 1). -
Page 12: Maintenance Of The Ph Electrode
Table - 4 Self-diagnosis information in pH measurement mode Display Contents Checking Icon Press before measuring Press when icon appears and stays. value becomes stable. 1. Check whether pH buffer solution is correct. Wrong pH buffer solution or the 2. Check whether the meter connects the buffer solution out of range. - Page 13 4.9.2 Calibration buffer solution For calibration accuracy, the pH of the standard buffer solution must be reliable. The buffer solution should be refreshed often, especially after heavy use. 4.9.3 Protect glass bulb The sensitive glass bulb at the front of the combination electrode should not come in contact with hard surfaces.
-
Page 14: Mv (Orp) Measurement
MV (ORP) MEASUREMENT 5.1 mV measurement Short press , switch the meter to mV mode, connect the ion combination electrode and the temperature probe or the pH electrode and the temperature probe, submerge into the solution, stir gently and let it stand still, wait for the reading to be stable and displays , and then get the reading. -
Page 15: Ion Concentration Measurement
ION CONCENTRATION MEASUREMENT 6.1 Preparation work 6.1.1 Press and switch to mode, connect to the ion combination electrode and the temperature probe. 6.1.2 Choose the unit of the ion measurement: Press to select the unit among pX→mol/L→ ppm(mg/L), select ppm or mg/L in parameter setting P5.2. -
Page 16: Ion Calibration
When testing the concentration of ions other than the above 16 ions, move the cursor to , press to confirm, see Diagram - 11. Then press to switch among the concentration units: pX→mol/L→ppm(mg/L). Note: The unit of ion concentration can ONLY be switched in parameter setting P5.1. -
Page 17: Notes On Ion Calibration
6.3 Notes on ion calibration 6.3.1 Ion calibration can be conducted with 1 point, 2 points or 3 points calibration. (a) 1-point calibration: refer to Section 6.3.2, press and go back to the measurement mode after the 1 point calibration. The bottom left of LCD indicates . -
Page 18: Ion Measurement
6.4 Ion measurement 6.4.1 Rinse the fluoride ion combination electrode and the temperature probe in distilled or deionized water, allow it to dry, dip it into the sample solution, stir gently and let it stand still and wait for the reading to be stable. When the stable icon displays on LCD, get the reading which is the concentration of the F 6.4.2 Press... -
Page 19: Parameter Settings
PARAMETER SETTING 7.1 Main menu of parameter setting Long press in measurement mode, the meter enters P1.0 mode, then press change menu P1.0→P5.0→P6.0. For details, please see Diagram - 13. P1.0 is the menu for pH setup; P5.0 for Ion menu and P6.0 for basic parameter menu. Main menu of parameter setting Sub-menu of pH parameter setting P1.1 pH buffer solution... - Page 20 ub-menu of pH parameter setting Press in P1.0, enter P1.1 sub-menu of pH parameter setting, and then press to switch among P1.1→P1.2→P1.3. P1.1 — Select pH buffer series (USA—NIST—CUS) 1. Press , USA icon flashes, press to select USA→nIS→CUS, press to confirm.
-
Page 21: Sub-Menu Of Ion Parameter Setting
7.3 Sub-menu of ion parameter setting Press in P5.0, enter P5.1 sub-menu of ion parameter setting, and then press to switch among P5.1→P5.2→P5.3. P5.1—Select the ion 1. Press in parameter setting P5.0, enter P5.1, see Diagram (a) on the left side, and then press to enter the ion selection interface, （a）... -
Page 22: Sub-Menu Of Basic Parameter Setting
7.4 Sub-menu of basic parameter setting Press in P6.0, enter P6.1 sub-menu of basic parameter setting, and then press to switch among P6.1→P6.2→P6.3→P6.4. P6.1 — Temperature unit (℃—℉) to select between ℃→℉, press 1. Press , ,℃ flashes, press to confirm. 2. -
Page 23: What's In The Kit
We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of Environmental Express, any malfunctioned or damaged product attributable to responsibility of Environmental Express, for a period of THREE YEARS (SIX MONTHS for the probe) from the delivery. - Page 24 Appendix - 1 Table of Parameter Setting Factory Mode Prompts Parameter setting items Abbreviation Description Default P1.1 Select pH buffer series USA－NIST－CUS P1.0 P1.2 Select resolution 0.01 0.01－0.1 Restore to factory default P1.3 No－Yes setting P5.1 Select ion P5.0 P5.2 Select between ppm and mg/L ppm－mg/L Restore to factory default...
- Page 25 Wrong pH buffer solution or the buffer solution out of range. √ √ During calibration, the measuring value being unstable (≥3min). √ pH electrode performance error, electrode slope<75% √ ISE slope<75% Environmental Express 2345A Charleston Regional Parkway Charleston, South Carolina 29492 Toll Free: 800-343-5319 Technical Support: 800-745-8218 Email: tech@environmentalexpress.com Website: www.environmentalexpress.com...
