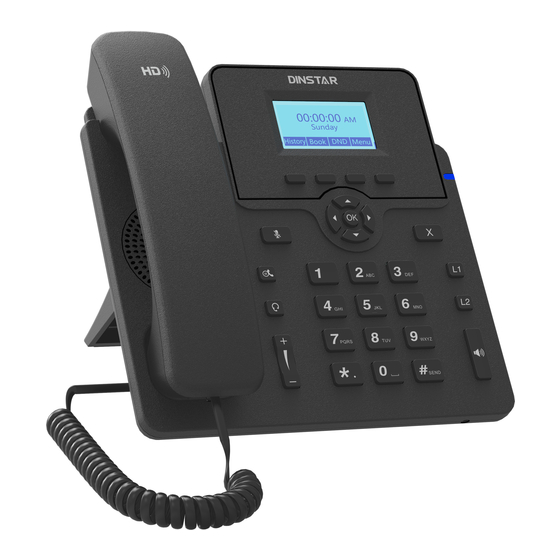

- Page 1 Quick Start Guide C60S/C60SP Business IP Phone Thanks for Choosing Dinstar’s IP Phone! Please read this guide carefully before using this product. If you need any technical support, please contact us. Tel: +86 755 61919966 Email: support@dinstar.com Website: www.dinstar.com...
- Page 2 (Optional) Note: The C60SP IP Phone is powered by PoE, the power adapter will not be provided. Hardware Component Instructions The main hardware components of the C60S/C60SP IP Phone are the LCD screen and the keypad. Hookswitch LCD Screen Hookswitch Tab...
- Page 3 Assembling the IP Phone Attach the stand to the IP Phone, as shown below: Connect the handle, headset, PC and power supply as shown in the figure below: Note: PC connection and extension connection are optional. Startup After the IP Phone is powered on and connected to network, it will start up automatically.
- Page 4 Configure the IP Phone There are two ways to customize the configurations of the IP Phone. · Configure via the user interface on the IP Phone · Configure via the web interface on your PC Configure via the user interface on the IP Phone The LCD screen and the keypad on the IP Phone allows you to execute all call operation tasks and basic configuration changes directly on the phone.
- Page 5 Enter the username (default: admin) and password (default: admin) in to the login page and then click Login . Network Setting Click Network Basic to configure the LAN port and the PC port. If there is a need, click Network Advanced to configure the VLAN, VPN, SNMP, TR069,LLDP, local RTP, QoS and 802.1x.
- Page 6 End a call Using the handset Hand up the handset or press the Cancel soft key . Using the speakerphone Press or the Cancel soft key. Using the Headset Press the Cancel soft key. Redial Press the History soft key,then press to select the desired entry, and then press the Send soft key.
- Page 7 (1) Press the Menu soft key when the phone is idle, and then select Features Programmable Keys Line Keys. (2) Select the desired line key, and then press the Enter soft key. Press the Switch soft key to select Speed Dial from the Type field, and then enter the number for speed dial in the Value field.
- Page 8 Phonebook To add a contact to the local phonebook: Press the Book soft key when the phone is idle, and then select Local Phonebook All Contacts. (2) Press the Add soft key to add a contact to the phonebook. Enter the contact’s information in corresponding fields and press the Save soft key.
