Clockaudio SM80 Series Installation Manual

Advertisement

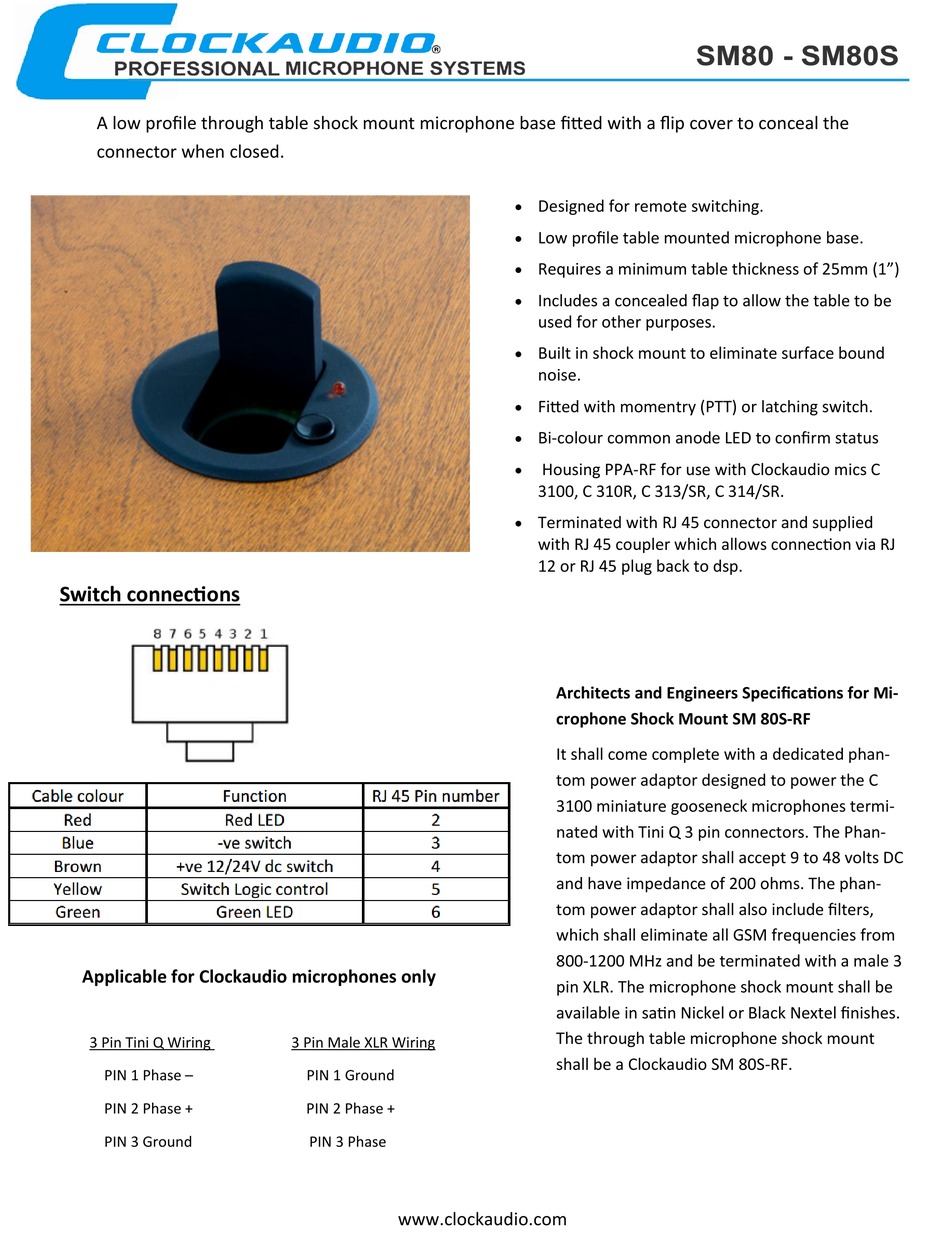

A low profile through table shock mount microphone base fitted with a flip cover to conceal the
connector when closed.

Switch connections

Applicable for Clockaudio microphones only
3 Pin Tini Q Wiring
PIN 1 Phase –
PIN 2 Phase +
PIN 3 Ground
3 Pin Male XLR Wiring
PIN 1 Ground
PIN 2 Phase +
PIN 3 Phase
www.clockaudio.com
Designed for remote switching.
Low profile table mounted microphone base.
Requires a minimum table thickness of 25mm (1")
Includes a concealed flap to allow the table to be
used for other purposes.
Built in shock mount to eliminate surface bound
noise.
Fitted with momentry (PTT) or latching switch.
Bi-colour common anode LED to confirm status
Housing PPA-RF for use with Clockaudio mics C
3100, C 310R, C 313/SR, C 314/SR.
Terminated with RJ 45 connector and supplied
with RJ 45 coupler which allows connection via RJ
12 or RJ 45 plug back to dsp.
Architects and Engineers Specifications for Mi-
crophone Shock Mount SM 80S-RF
It shall come complete with a dedicated phan-
tom power adaptor designed to power the C
3100 miniature gooseneck microphones termi-
nated with Tini Q 3 pin connectors. The Phan-
tom power adaptor shall accept 9 to 48 volts DC
and have impedance of 200 ohms. The phan-
tom power adaptor shall also include filters,
which shall eliminate all GSM frequencies from
800-1200 MHz and be terminated with a male 3
pin XLR. The microphone shock mount shall be
available in satin Nickel or Black Nextel finishes.
The through table microphone shock mount
shall be a Clockaudio SM 80S-RF.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM80 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Clockaudio SM80 Series

  • Page 1 Fitted with momentry (PTT) or latching switch.  Bi-colour common anode LED to confirm status  Housing PPA-RF for use with Clockaudio mics C 3100, C 310R, C 313/SR, C 314/SR.  Terminated with RJ 45 connector and supplied with RJ 45 coupler which allows connection via RJ 12 or RJ 45 plug back to dsp.
  • Page 2 Installation Guide (illustrations show SM80S) 1) Ensure minimum table thickness of 25mm (1”). 2) Drill a 50mm (2”) hole through the table see fig A. 3) Remove the 3 M3 pan headed screws from the bottom plate see fig B. 4) Remove the 2 M3 x 30mm pan headed screws securing the base plate to the top assembly see fig C.
