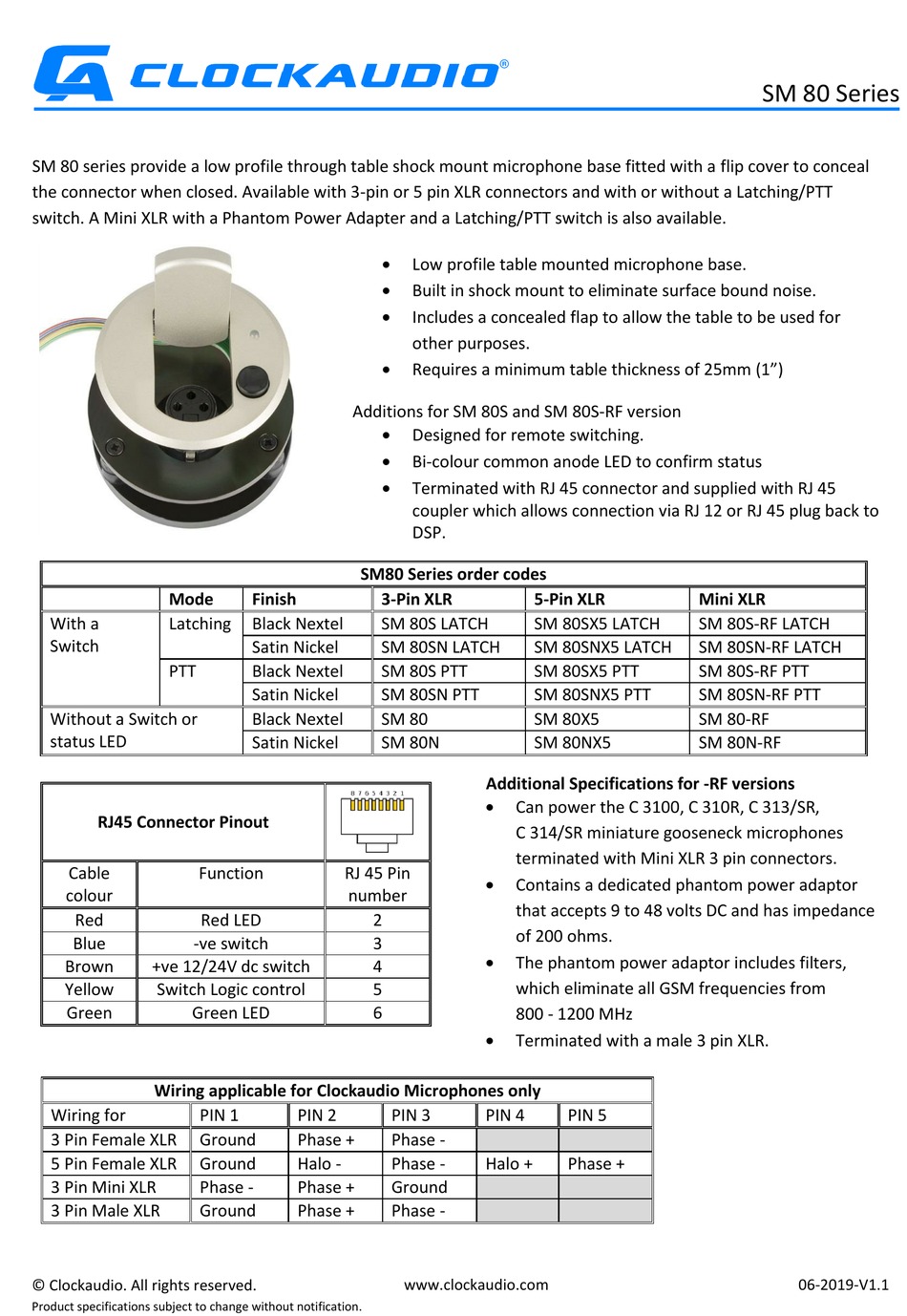

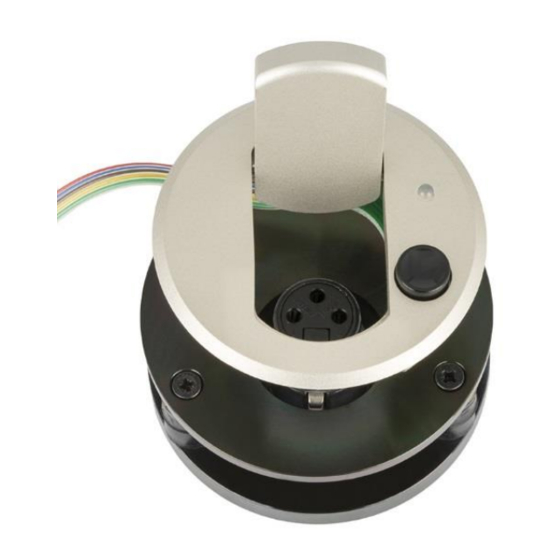

SM 80 series provide a low profile through table shock mount microphone base fitted with a flip cover to conceal
the connector when closed. Available with 3-pin or 5 pin XLR connectors and with or without a Latching/PTT
switch. A Mini XLR with a Phantom Power Adapter and a Latching/PTT switch is also available.
Mode
With a
Latching
Switch
PTT
Without a Switch or
status LED
RJ45 Connector Pinout
Cable
Function
colour
Red
Red LED
Blue
-ve switch
Brown
+ve 12/24V dc switch
Yellow
Switch Logic control
Green
Green LED
Wiring applicable for Clockaudio Microphones only
Wiring for
PIN 1
3 Pin Female XLR
Ground
5 Pin Female XLR
Ground
3 Pin Mini XLR
Phase -
3 Pin Male XLR
Ground
© Clockaudio. All rights reserved.
Product specifications subject to change without notification.
Low profile table mounted microphone base.
Built in shock mount to eliminate surface bound noise.
Includes a concealed flap to allow the table to be used for
other purposes.
Requires a minimum table thickness of 25mm (1")
Additions for SM 80S and SM 80S-RF version
Designed for remote switching.
Bi-colour common anode LED to confirm status
Terminated with RJ 45 connector and supplied with RJ 45
coupler which allows connection via RJ 12 or RJ 45 plug back to
DSP.
SM80 Series order codes
Finish
3-Pin XLR
Black Nextel
SM 80S LATCH
Satin Nickel
SM 80SN LATCH
Black Nextel
SM 80S PTT
Satin Nickel
SM 80SN PTT
Black Nextel
SM 80
Satin Nickel
SM 80N
RJ 45 Pin
number
2
3
4
5
6
PIN 2
PIN 3
Phase +
Phase -
Halo -
Phase -
Phase +
Ground
Phase +
Phase -
www.clockaudio.com
5-Pin XLR
SM 80SX5 LATCH
SM 80SNX5 LATCH
SM 80SX5 PTT
SM 80SNX5 PTT
SM 80X5
SM 80NX5
Additional Specifications for -RF versions
Can power the C 3100, C 310R, C 313/SR,
C 314/SR miniature gooseneck microphones
terminated with Mini XLR 3 pin connectors.
Contains a dedicated phantom power adaptor
that accepts 9 to 48 volts DC and has impedance
of 200 ohms.
The phantom power adaptor includes filters,
which eliminate all GSM frequencies from
800 - 1200 MHz
Terminated with a male 3 pin XLR.
PIN 4
PIN 5
Halo +
Phase +
SM 80 Series
Mini XLR
SM 80S-RF LATCH
SM 80SN-RF LATCH
SM 80S-RF PTT
SM 80SN-RF PTT
SM 80-RF
SM 80N-RF
06-2019-V1.1
