③ If the SQL DB is not accessible, the above program will not be executed.

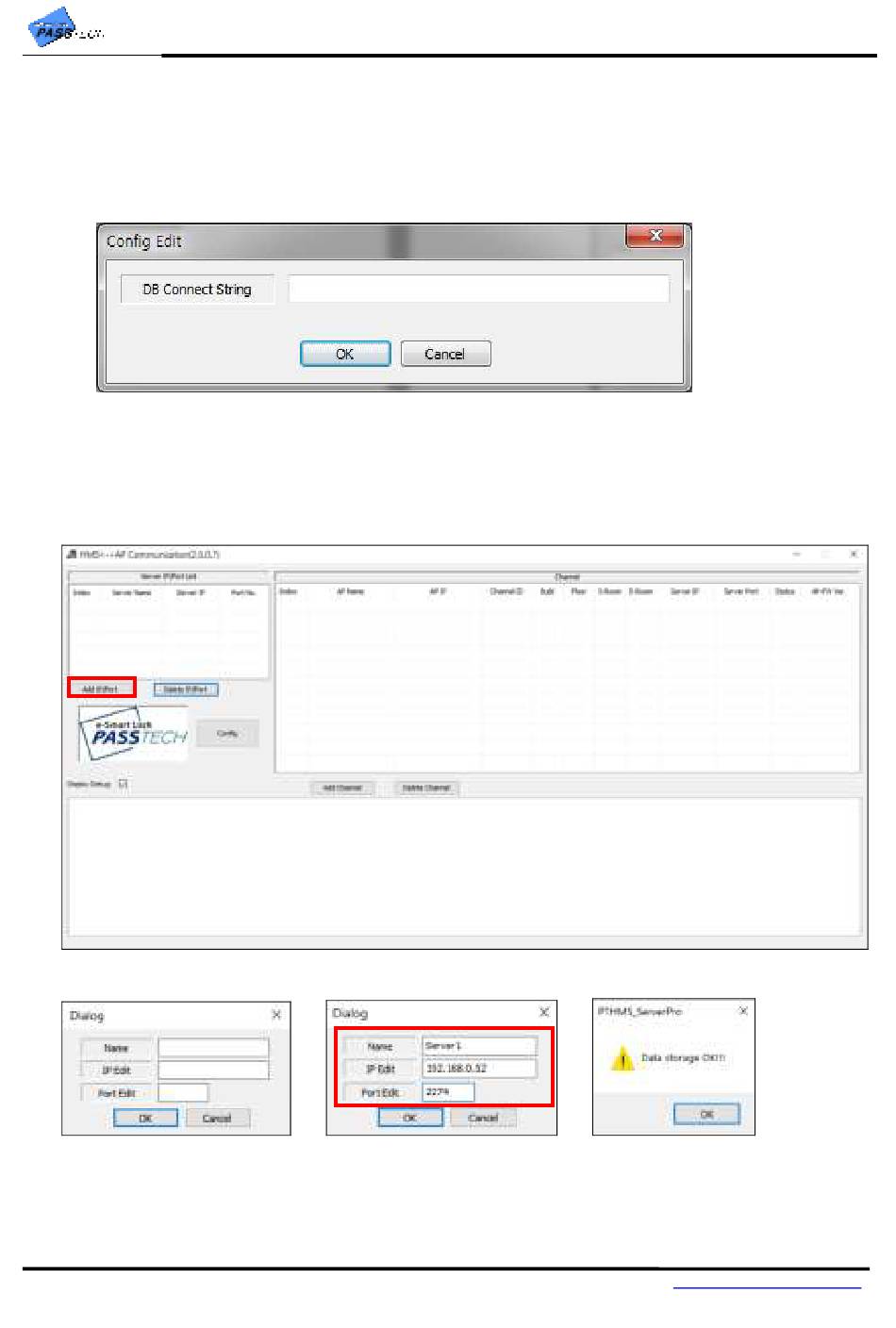

The DB Connection Configuration screen will appear, and you have to enter the DB connection
value as shown below. (Refer to contents 4-1)
④ The Server Account is the part which sets the communication port to receive or send data form the
AP.
①
⑤ Click "Add IP/Port", and once you see a Dialog screen, input server name, IP address where the
server is installed, and the port number. Then, click "OK" to create a server account.
